Engine Block

Cylinder Block Overhaul W/Related Components:

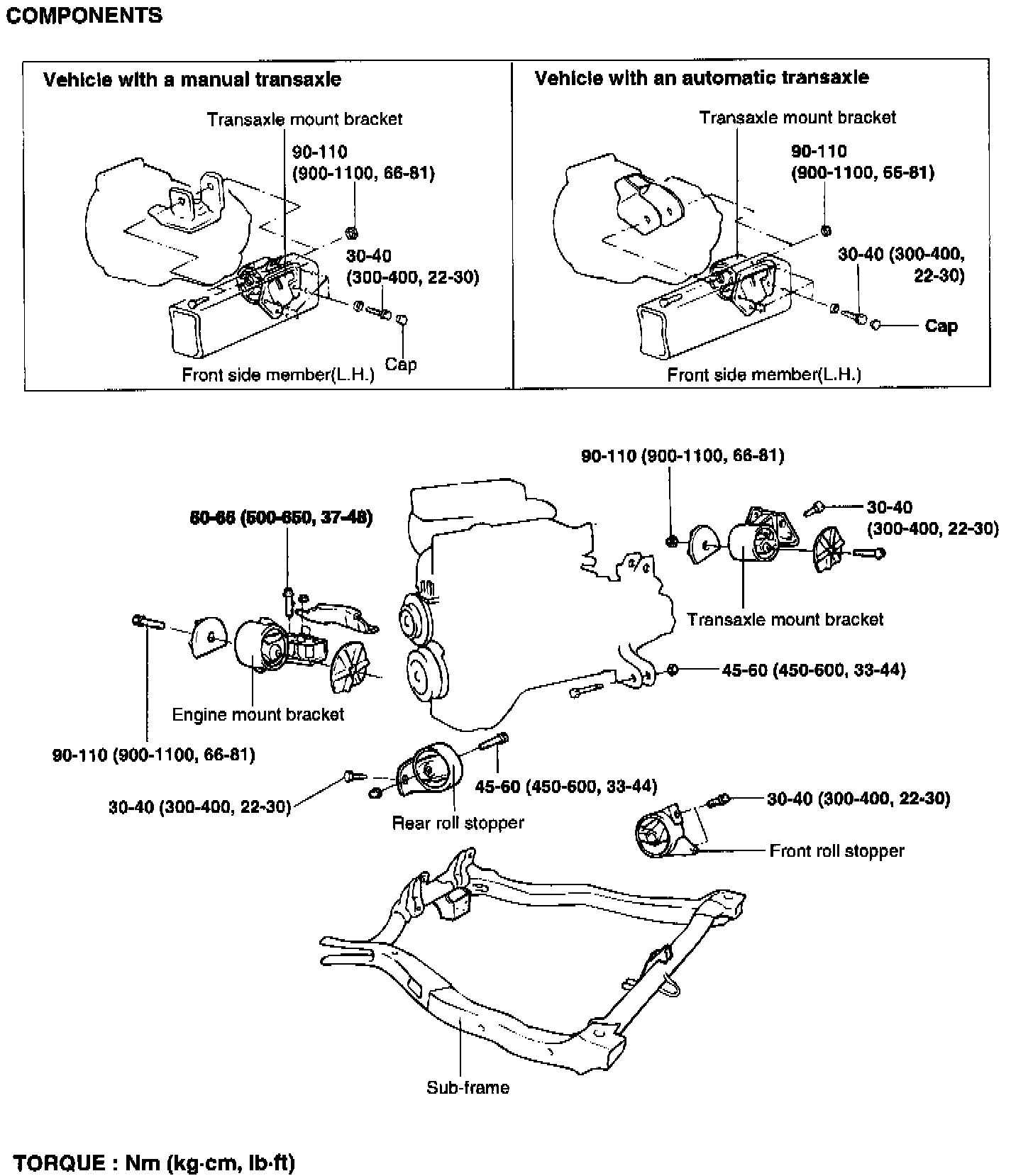

Engine Mount Overhaul W/Related Components:
