Home >> Hyundai >> 1995 >> Accent L4-1.5L SOHC Alpha Engine >> Repair and Diagnosis >> Powertrain Management >> Computers and Control Systems >> Testing and Inspection >> Symptom Related Diagnostic Procedures >> Symptom Cross Reference Chart

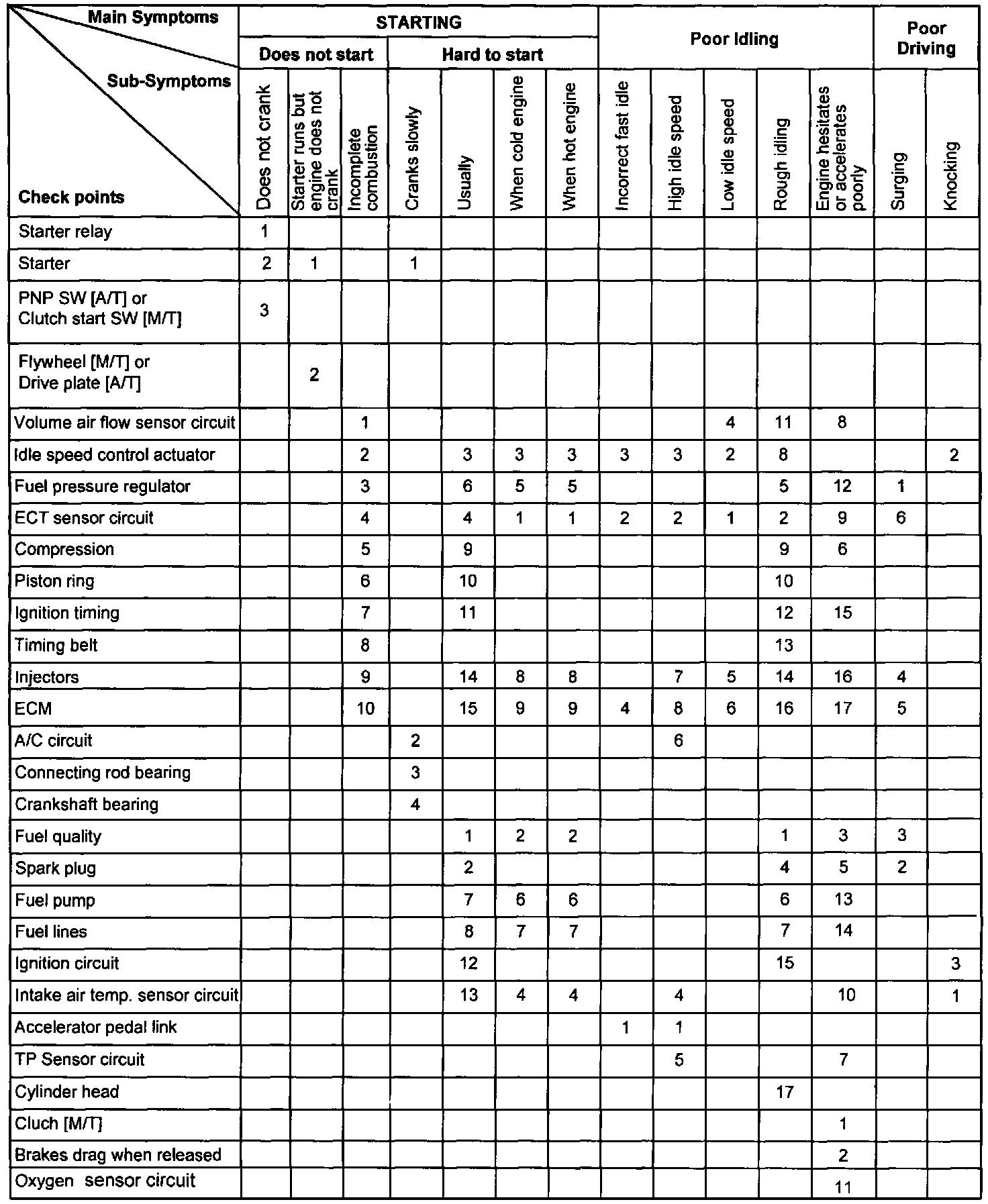

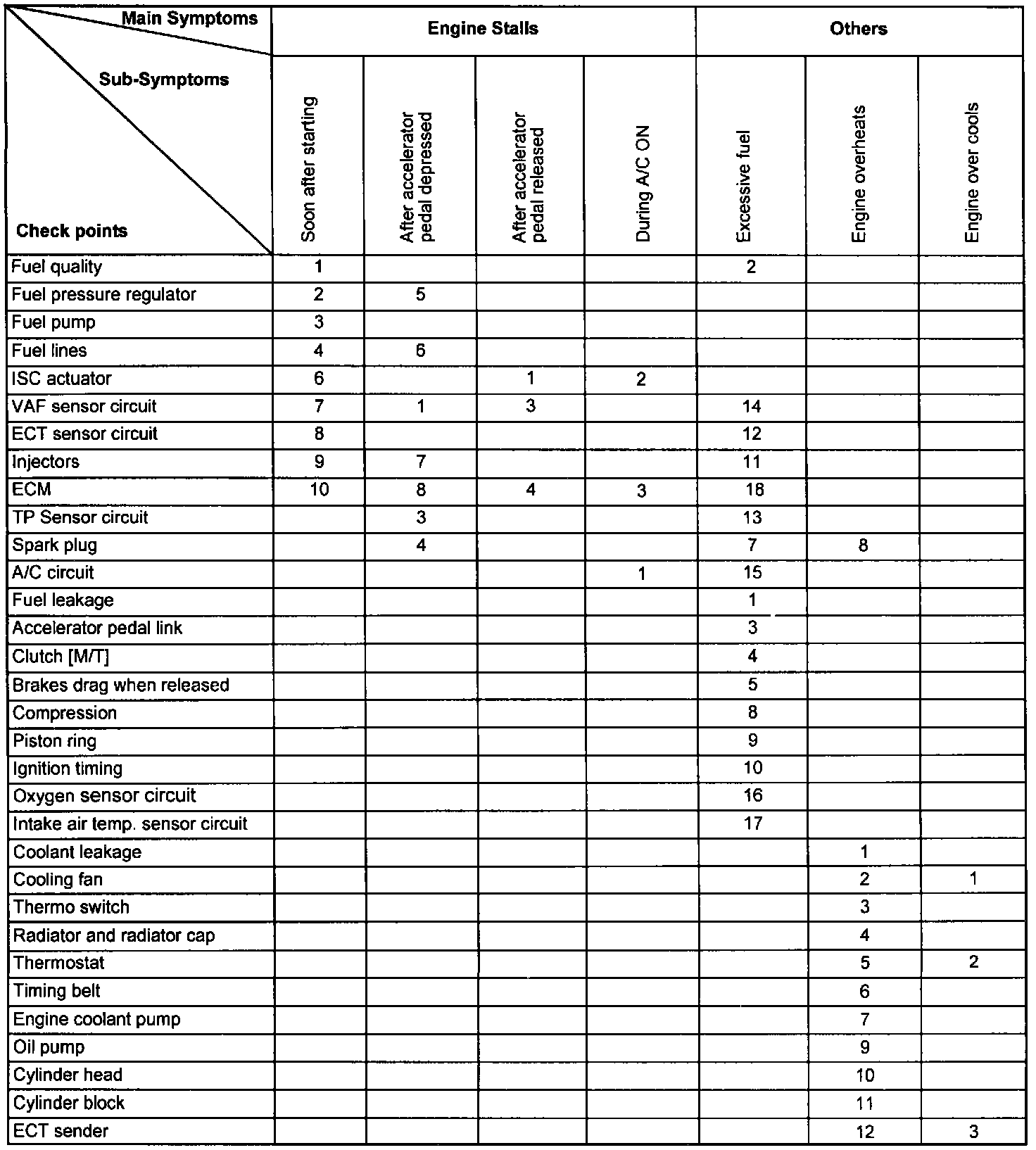

Symptom Cross Reference Chart








NOTE: The number in the chart is the order to check the items in.
