Control Module: Diagrams

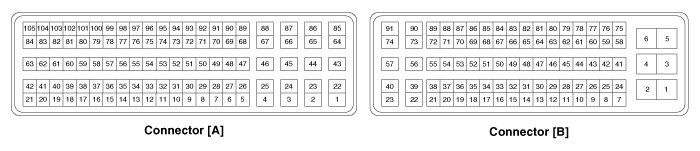

1. TCM connector and terminal function

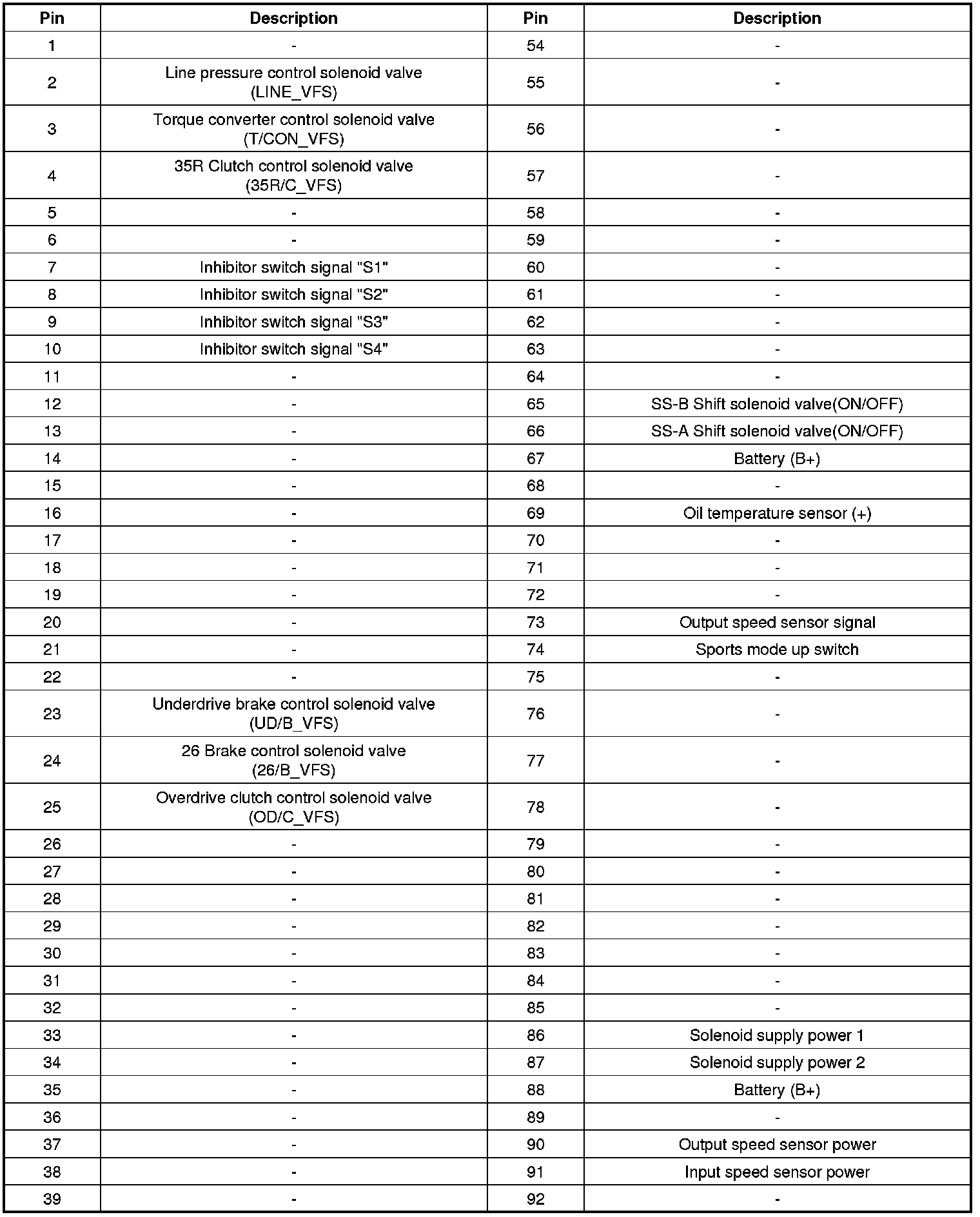

2. TCM terminal function

Connector [A]

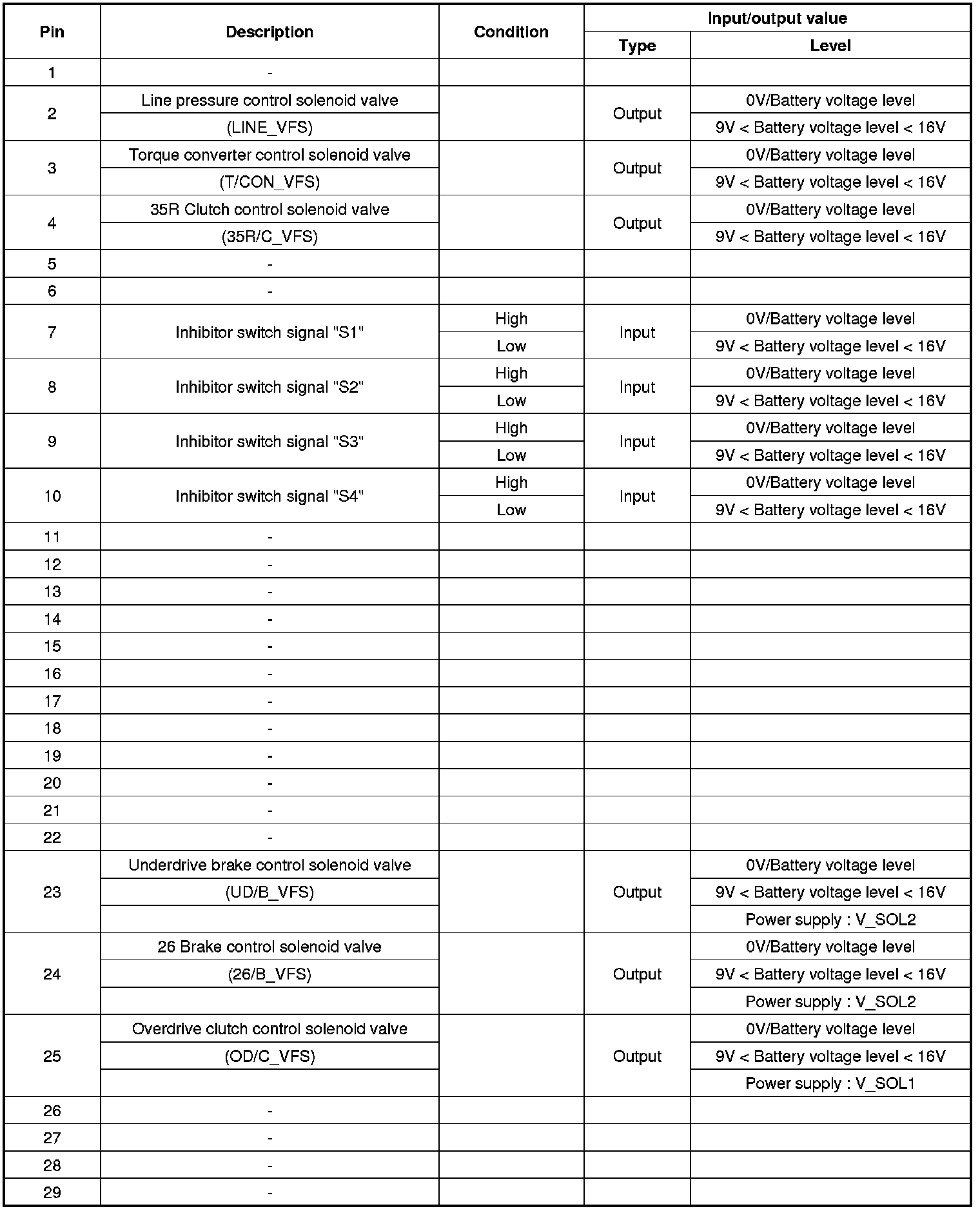

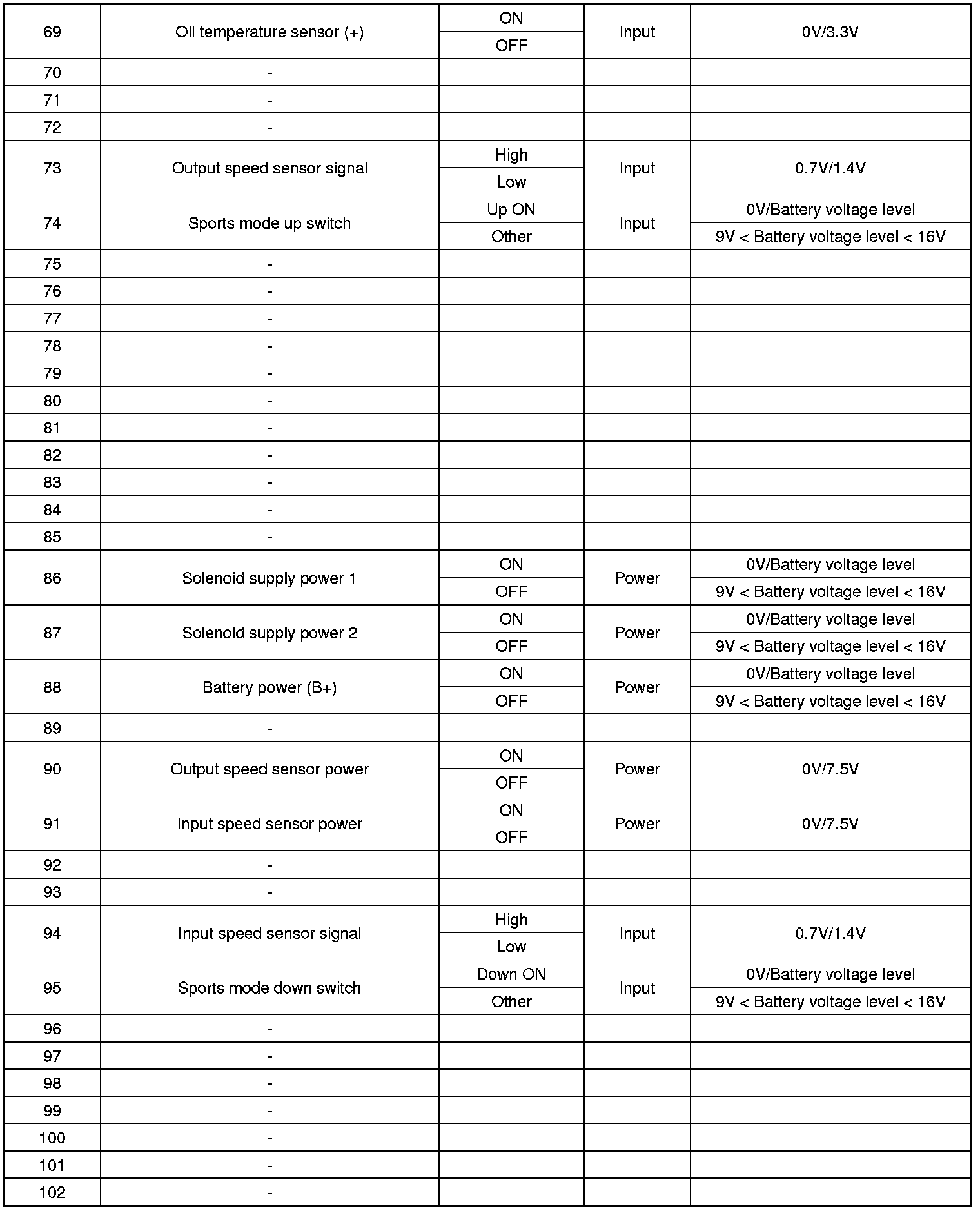

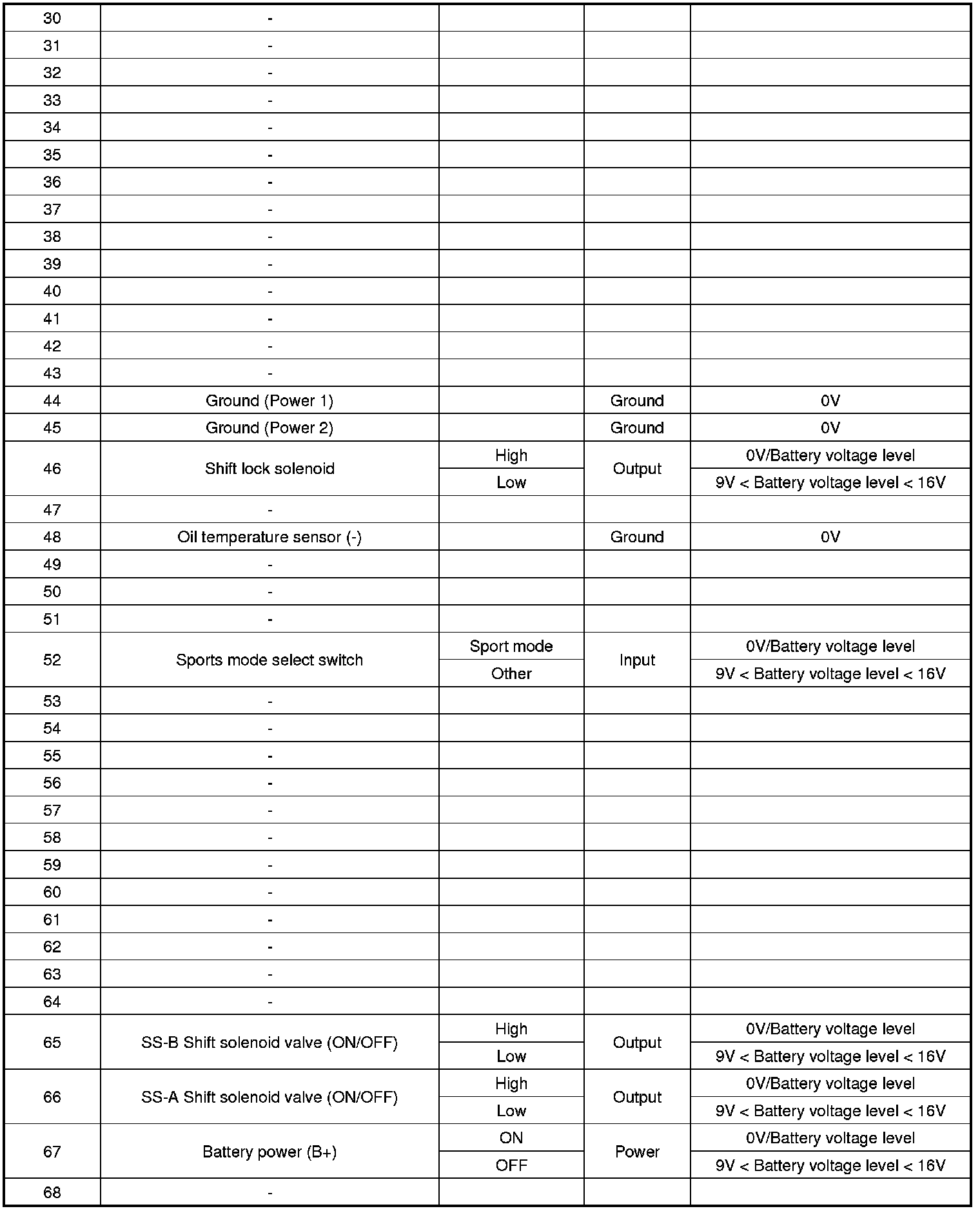

3. TCM Terminal Input/ Output Signal

Connector [A]

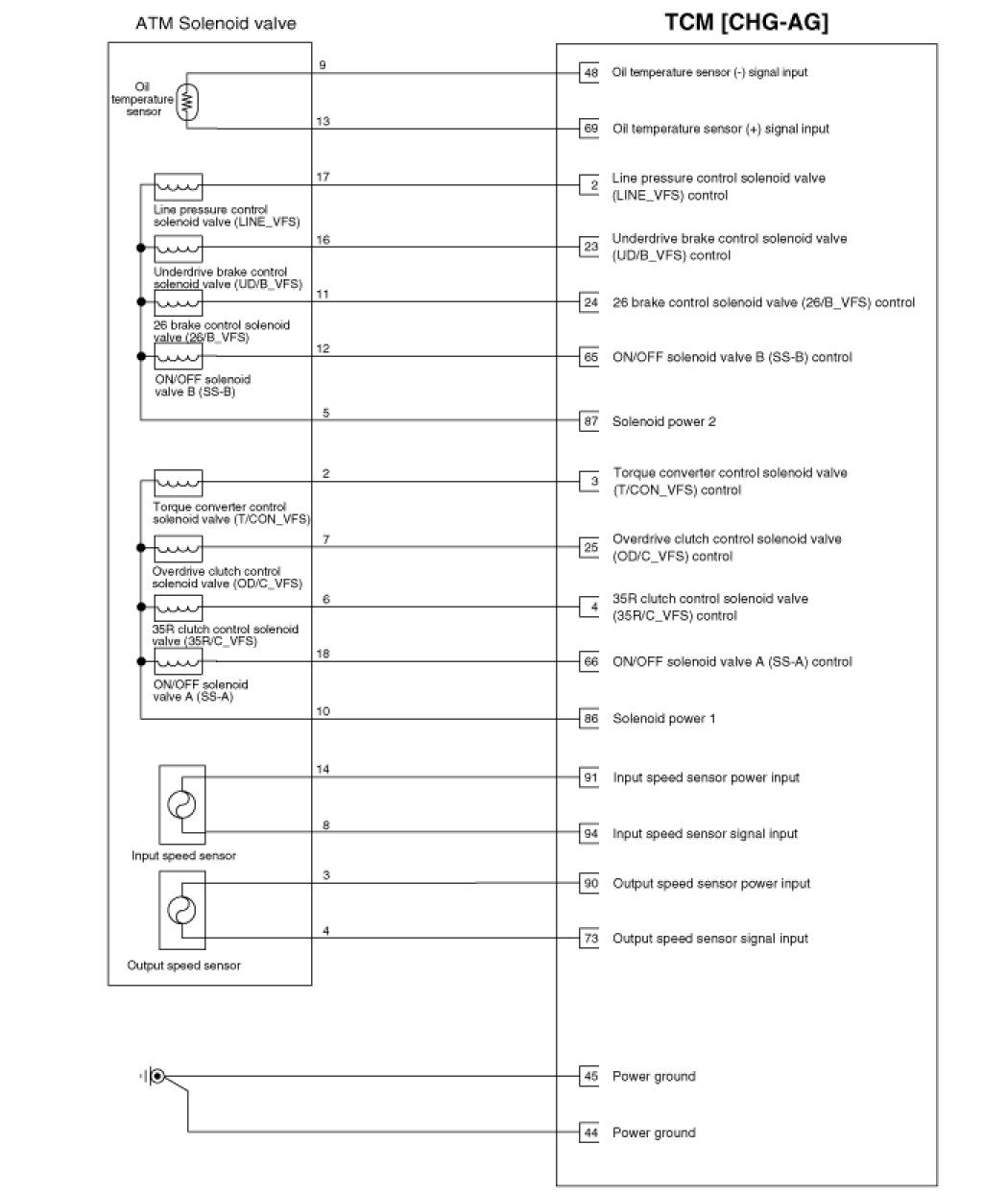

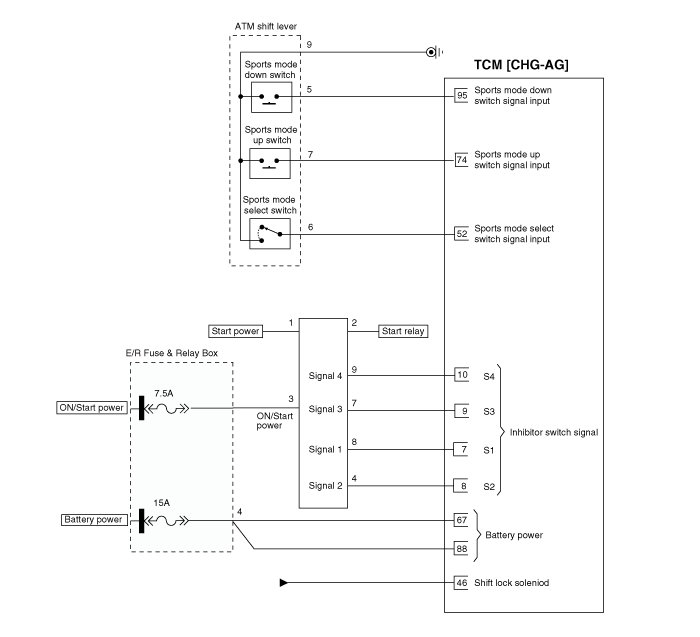

Circuit Diagram
