Electric Load Sensor: Service and Repair






ELD Removal and Installation

Removal

1. ELD

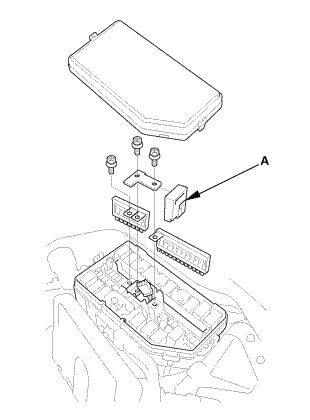

1. Remove the ELD (A).

Installation

1. ELD

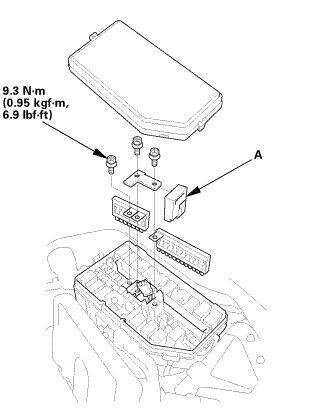

1. Install the ELD (A).
