Heater Control Panel Connector for Inputs and Outputs

HVAC

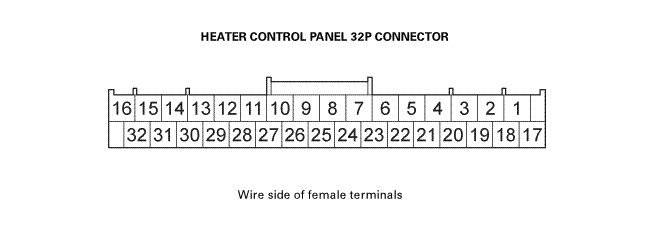

Heater Control Panel Connector for Inputs and Outputs

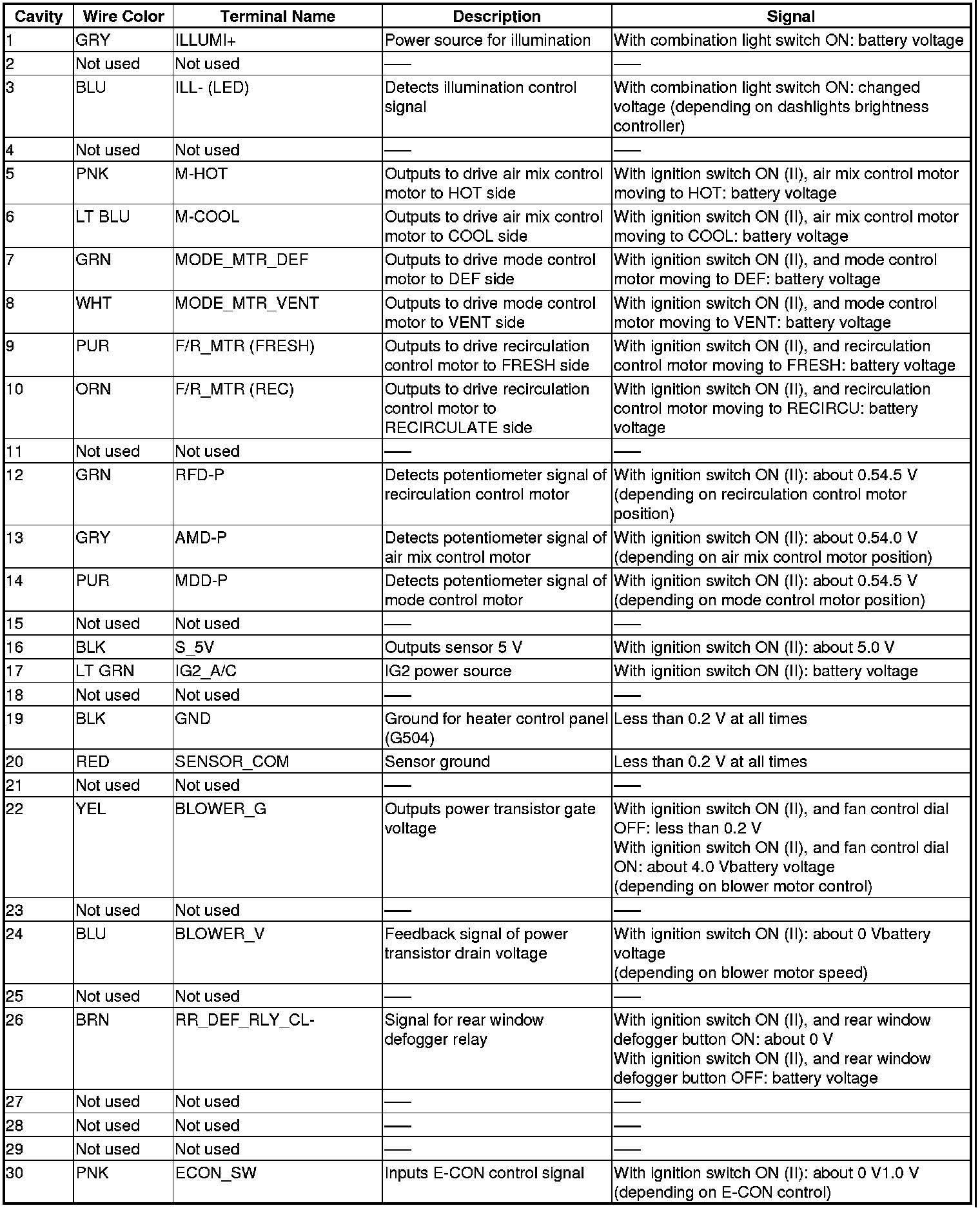

Heater Control Panel Inputs and Outputs
