HVAC Control Unit Connector for Inputs and Outputs
HVAC Control Unit Connector for Inputs and Outputs
HVAC

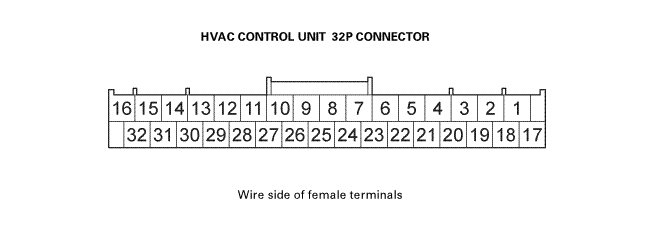

HVAC Control Unit Connector for Inputs and Outputs

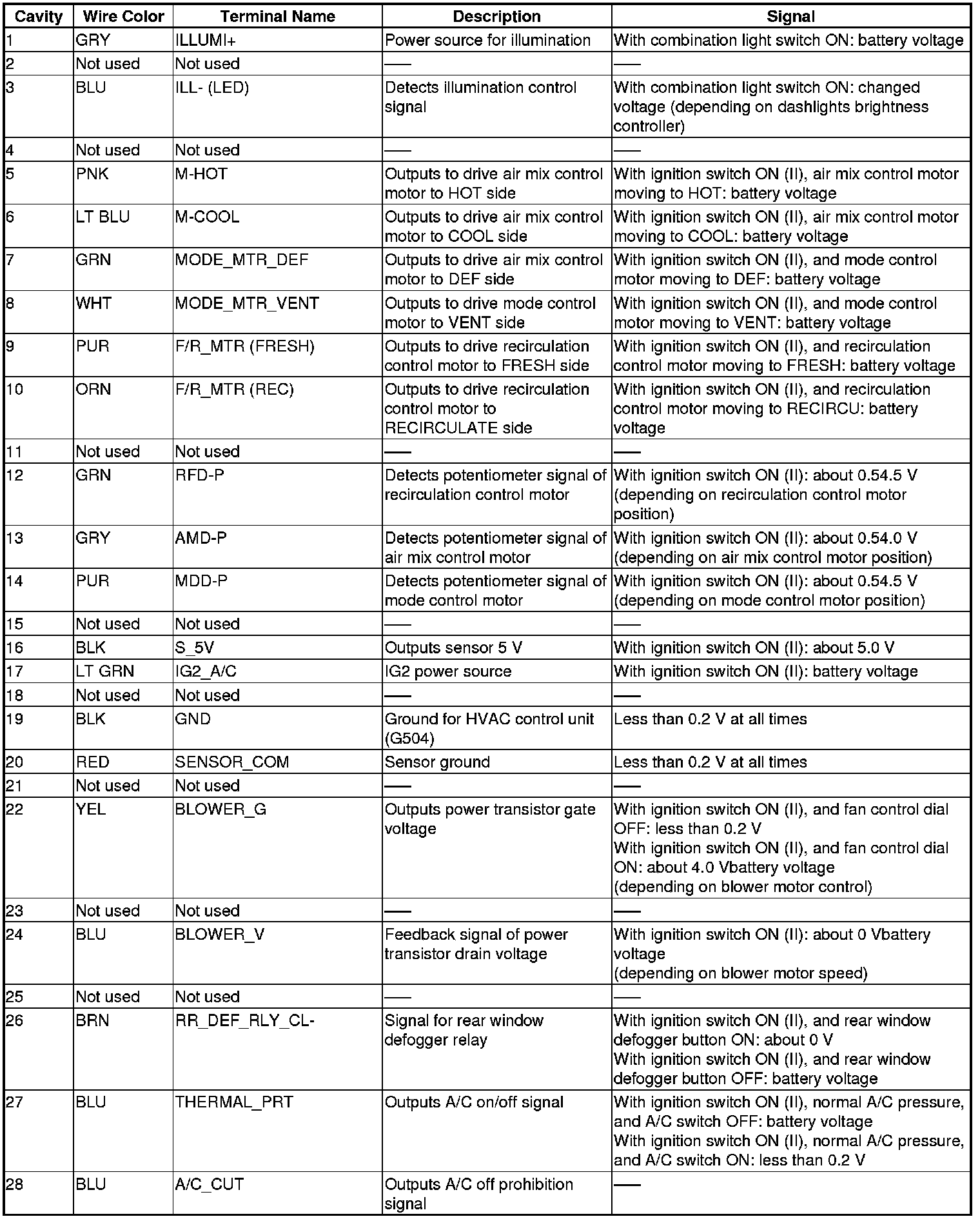

HVAC Control Unit Inputs and Outputs
