Climate Control Unit Connector for Inputs and Outputs




HVAC

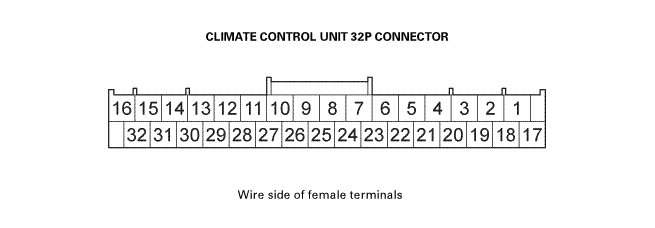

Climate Control Unit Connector for Inputs and Outputs

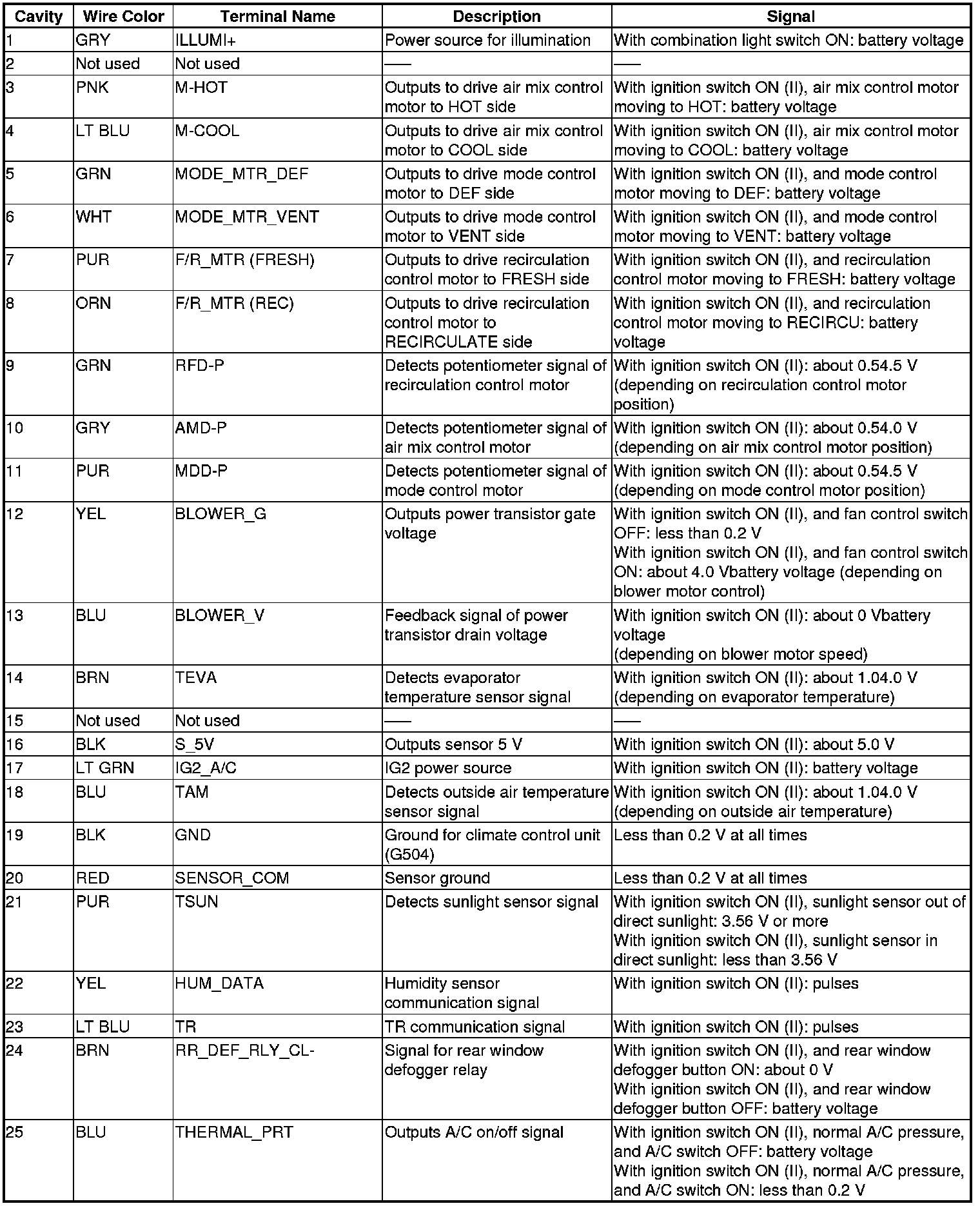

Climate Control Unit Inputs and Outputs
