Home >> Honda >> 2012 >> Civic Hybrid L4-1.5L Hybrid >> Repair and Diagnosis >> Powertrain Management >> Computers and Control Systems >> Data Link Connector >> Locations >> SRS Component Location Index

SRS Component Location Index




Driving Support & Restraints

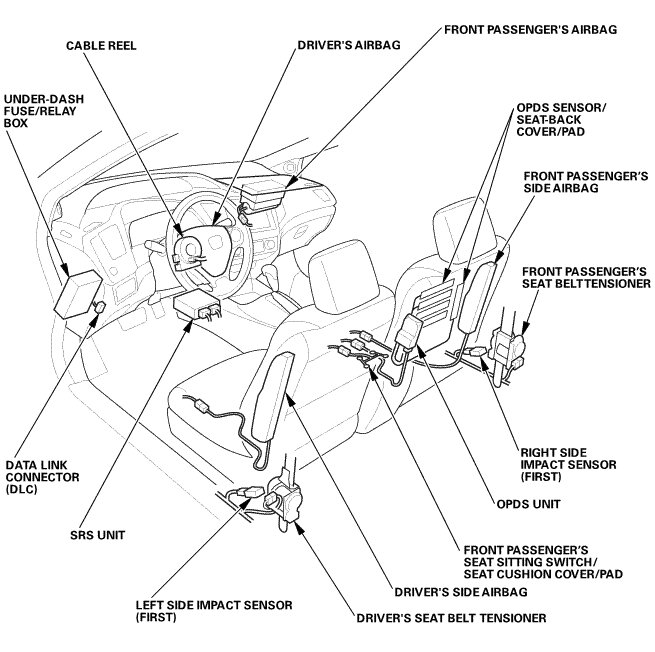

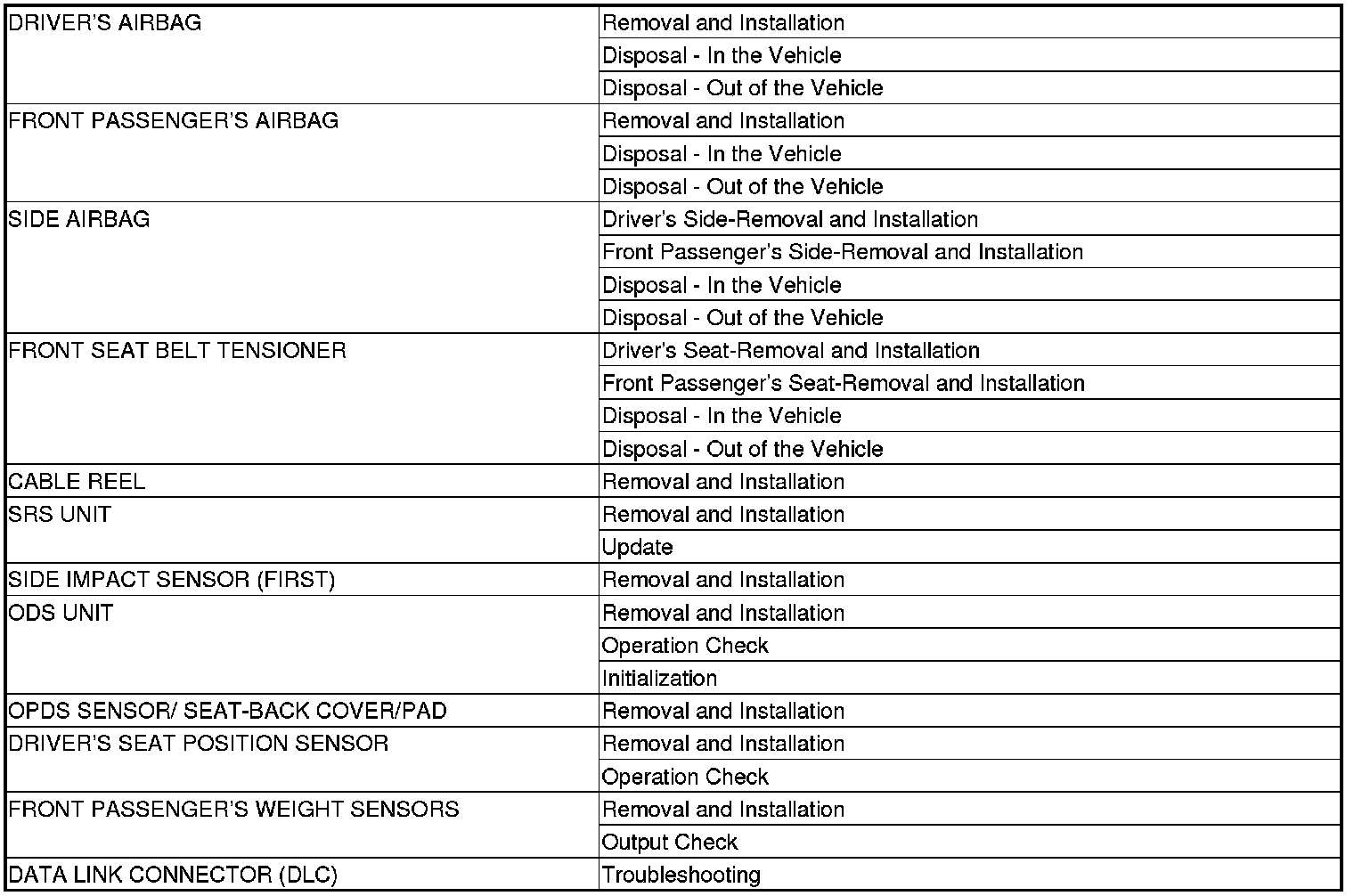

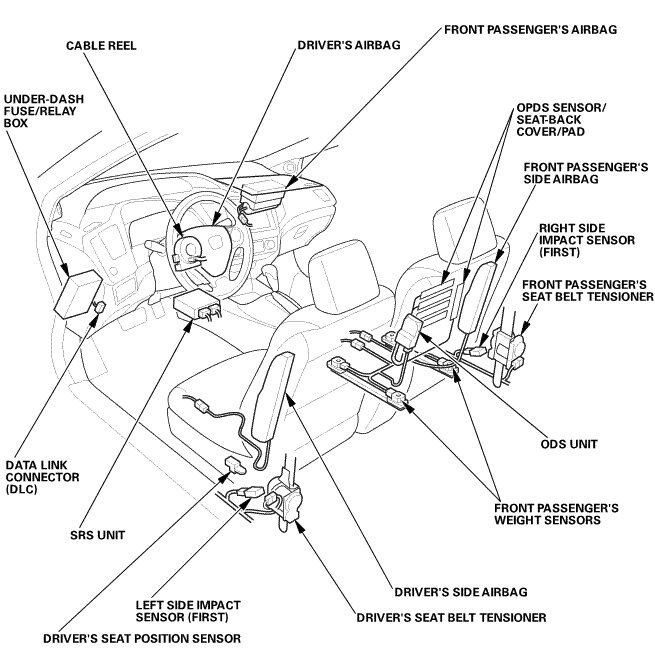

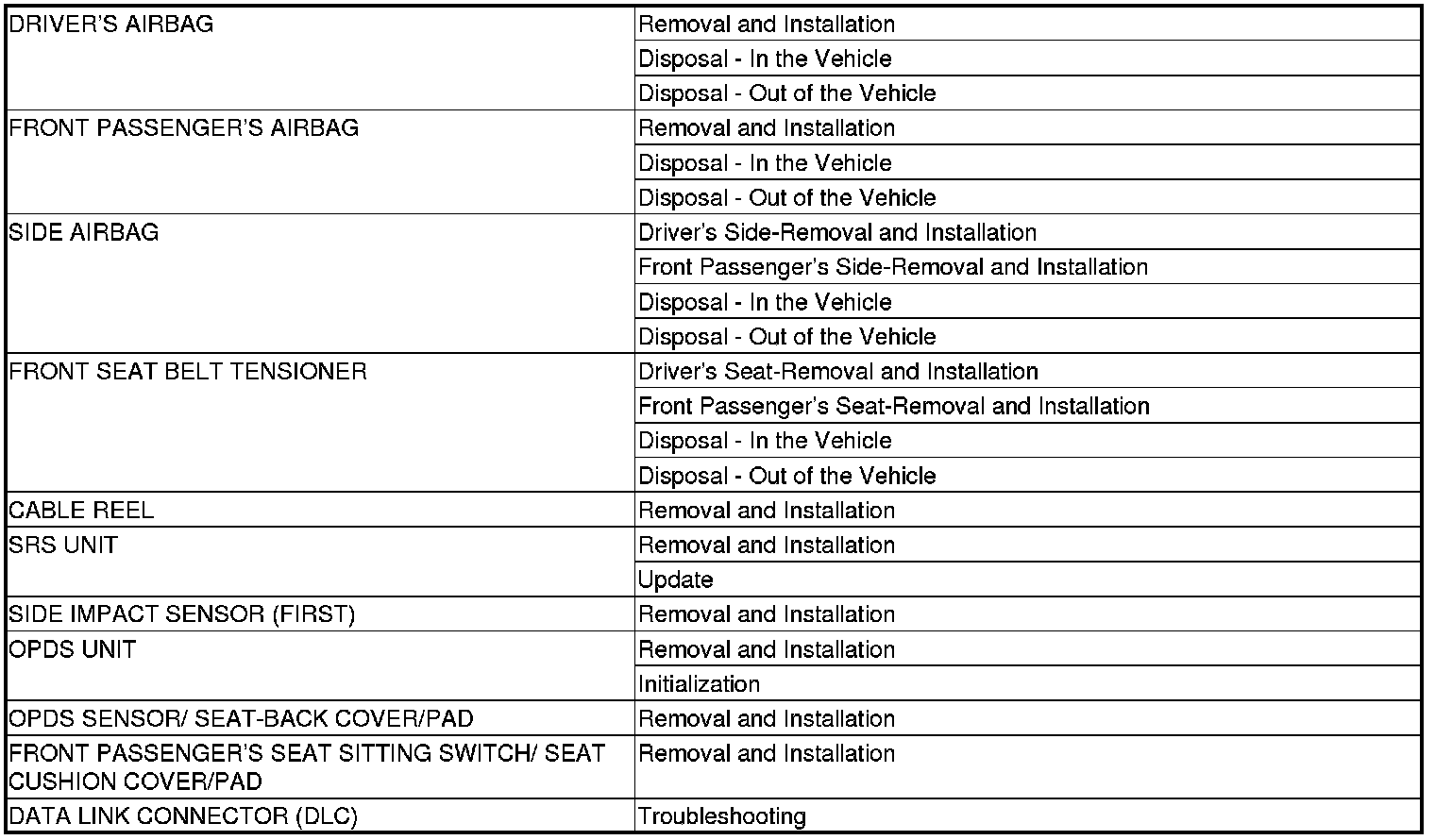

SRS Component Location Index

USA and Canada models










Mexico models
