Rear Seat Armrest Cover Replacement (4-Door)

Rear Seat Armrest Cover Replacement

For Some Models - 4-door

NOTE: Take care not to tear or damage the seat covers.

1. Remove the armrest from the seat-back Rear Seat Armrest Replacement (4-Door).

2. Remove the armrest beverage holder from the armrest Service and Repair.

3. Release the upholstery rings (A) and the hook strip (B), and pull back the armrest cover (C) all the way around.

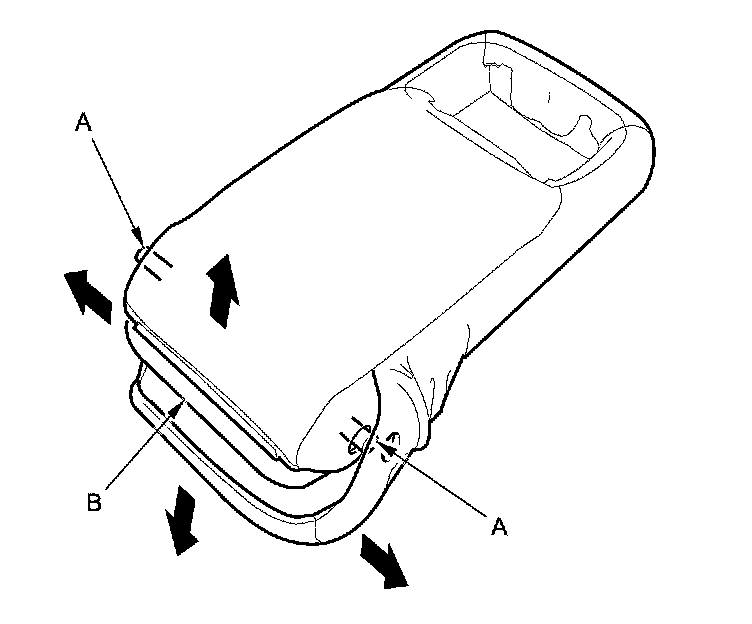

4. Release the armrest cover from the armrest pivot shafts (A), then remove it from the pad (B).





5. Install the armrest cover in the reverse order of removal. To prevent wrinkles when installing an armrest cover, make sure the material is stretched evenly over the pad before securing the hook strips.
