Sunroof / Moonroof: Service and Repair

Moonroof Glass Replacement

1. Close the glass fully.

2. Slide the sunshade all the way back.

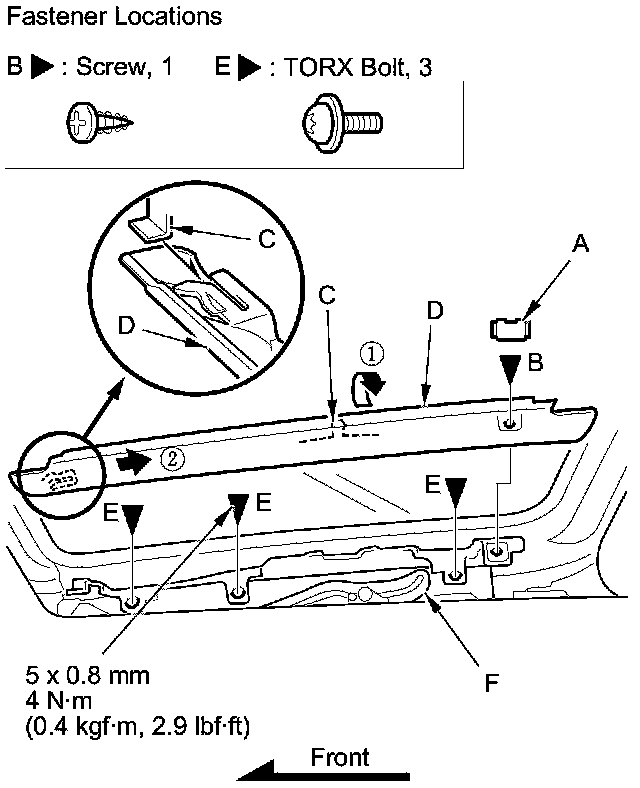

3. Pry out the cover (A), remove the screw (B), and release the hooks (C), then remove the bracket cover (D). Remove the TORX bolts (E) with a TORX T25 bit from the glass brackets (F) on both sides.

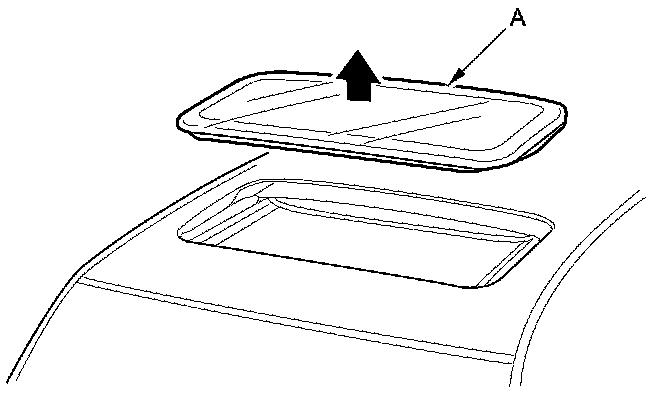

4. Remove the glass (A) by lifting it up. Do not damage the roof panel.





5. Install the glass in the reverse order of removal, and adjust the glass position alignment Adjustments.

6. Check for water leaks. Let the water run freely from a hose without a nozzle. Do not use high-pressure water.

NOTE: It is normal for some water to seep past the moonroof into the moonroof frame, and exit through the drains.
