Audio Remote Switch Test

Audio Remote Switch Test

SRS components are located in this area. Review the SRS component location, 4-door SRS Component Location Index (2-Door), 2-door SRS Component Location Index (2-Door), and the precautions and procedures Service and Repair before doing repairs or service.

1. Remove the driver's airbag assembly Driver's Airbag Replacement.

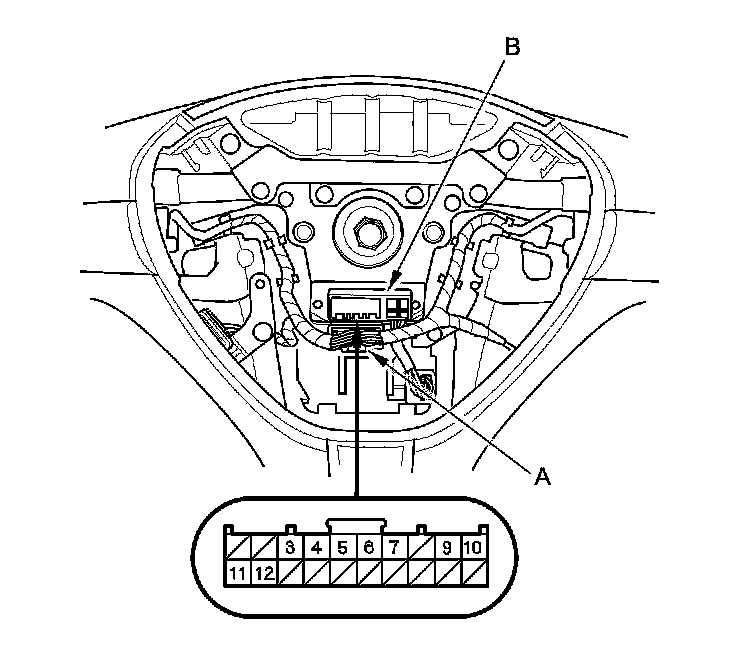

2. Remove the 20P connector (A) from the cable reel (B).

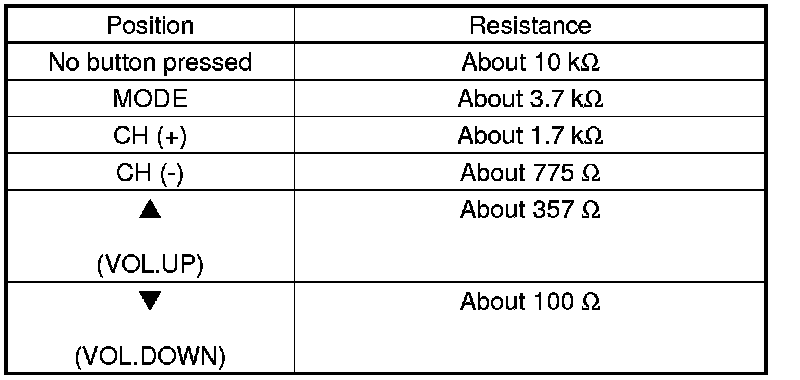

3. Measure the resistance between terminals No. 9 and No. 10 in each switch position according to the table.





4. If the resistance is not as specified, replace the audio remote switch Service and Repair.
