92-1x

SRS DTC Troubleshooting: 92-1x

DTC 92-1x ("x" can be 0 thru 9 or A thru F):

Open in the Passenger's Airbag Cutoff Indicator

NOTE:

- Before doing this troubleshooting procedure, find out if the vehicle was in a collision. If so, verify that all the required components were replaced with new components, of the correct part number, and that they were properly installed Service and Repair.
- Before doing this troubleshooting procedure, review SRS Precautions and Procedures Service and Repair, General Troubleshooting Information Reading and Clearing Diagnostic Trouble Codes, and Battery Terminal Disconnection and Reconnection Procedures.
- If there are other SRS DTCs stored with 92-1x; troubleshoot them first.

1. Clear the DTC memory.

2. Turn the ignition switch to ON (II), then wait for 10 seconds.

3. Read the DTC.

Is DTC 92-1x indicated?

YES -

Go to step 4.

NO -

Intermittent failure, the system is OK at this time. Go to Troubleshooting Intermittent Failures. If another DTC is indicated, troubleshoot the DTC.�

4. Turn the ignition switch to LOCK (0).

5. Disconnect the negative cable from the battery, then wait at least 3 minutes.

6. Disconnect the passenger's airbag cutoff indicator 4P connector Service and Repair.

7. Disconnect SRS unit connector A (28P) from the SRS unit.

8. Reconnect the negative cable to the battery.

9. Turn the ignition switch to ON (II).

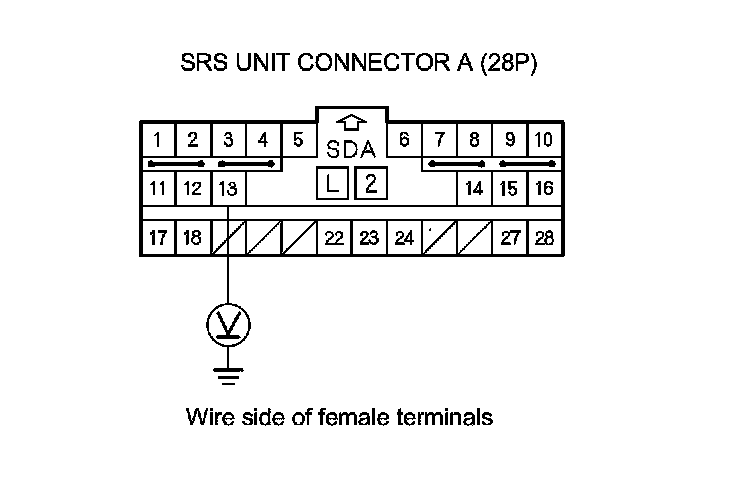

10. Measure the voltage between SRS unit connector A (28P) terminal No. 13 and body ground. There should be less than 0.2 V.





Is the voltage as specified?

YES -

Faulty SRS unit or passenger's airbag cutoff indicator; replace the passenger's airbag cutoff indicator Service and Repair, then clear the DTC, and retest. If the DTC is still present, replace the SRS unit SRS Unit Replacement.�

NO -

Short to power in the dashboard wire harness; replace the dashboard wire harness, then clear the DTC.�
