SRS DTC Troubleshooting: 86-1x, 86-2x

DTC 86-1x ("x" can be 0 thru 9 or A thru F):

Faulty OPDS Seat-Back Sensor

DTC 86-2x ("x" can be 0 thru 9 or A thru F):

Faulty OPDS Seat Support Sensor

NOTE:

- Before doing this troubleshooting procedure, find out if the vehicle was in a collision. If so, verify that all the required components were replaced with new components, of the correct part number, and that they were properly installed Service and Repair.
- Before doing this troubleshooting procedure, review SRS Precautions and Procedures Service and Repair and General Troubleshooting Information Reading and Clearing Diagnostic Trouble Codes.

1. Clear the DTC memory.

2. Turn the ignition switch to ON (II), then wait for 10 seconds.

3. Read the DTC.

Is DTC 86-1x or 86-2x indicated?

YES -

Go to step 4.

NO -

Intermittent failure, the system is OK at this time. Go to Troubleshooting Intermittent Failures. If another DTC is indicated, troubleshoot the DTC.�

NOTE: Aftermarket devices (fluorescent lights, laptop computers, etc.) used near the front passenger's seat-back can interfere with the seat-back sensors and cause a false DTC 86-1x or 86-2x. If one of these devices was used, clear the DTC, operate the device near the seat-back, and recheck for DTCs. If DTC 86-1x or 86-2x is set, clear it, and do not use the device near the seat-back.

4. Turn the ignition switch to LOCK (0).

5. Remove the seat back panel.

- 4-door Front Seat-Back Cover Replacement (4-Door)
- 2-door Front Seat-Back Cover Replacement (2-Door)

6. Turn over the reinforcing cloth, then release the hooks.

7. Turn over the seat-back cover/pad to gain access to the ODS unit.

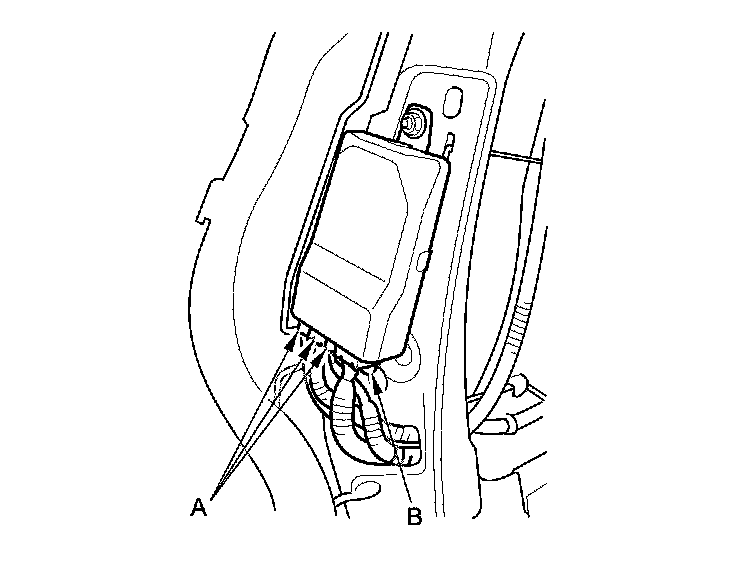

8. Check the connection at the OPDS sensor connectors (A), the ODS unit 18P connector (B), and ODS unit.





Are the connections OK?

YES -

Go to step 9.

NO -

Repair the poor connections, then clear the DTC, and retest. If DTC 86-1x or 86-2x is still present, go to step 9.

9. Replace the seat-back cover/pad with equipped OPDS sensor.

- 4-door Front Seat-Back Cover Replacement (4-Door)
- 2-door Front Seat-Back Cover Replacement (2-Door)

10. Clear the DTC memory.

11. Do the ODS unit initialization Programming and Relearning.

12. Turn the ignition switch to ON (II), then wait for 10 seconds.

13. Read the DTC.

Is DTC 86-1x or 86-2x indicated?

YES -

Replace the ODS unit ODS Unit Replacement, then clear the DTC, and retest. If the DTC is still present, replace the SRS unit SRS Unit Replacement.�

NO -

The system is OK at this time.�
