Windshield Washer Reservoir: Service and Repair

Washer Reservoir Replacement

1. Remove the right inner fender.
- 2-door Front Inner Fender Replacement (2-Door)

- 4-door Front Inner Fender Replacement (4-Door)

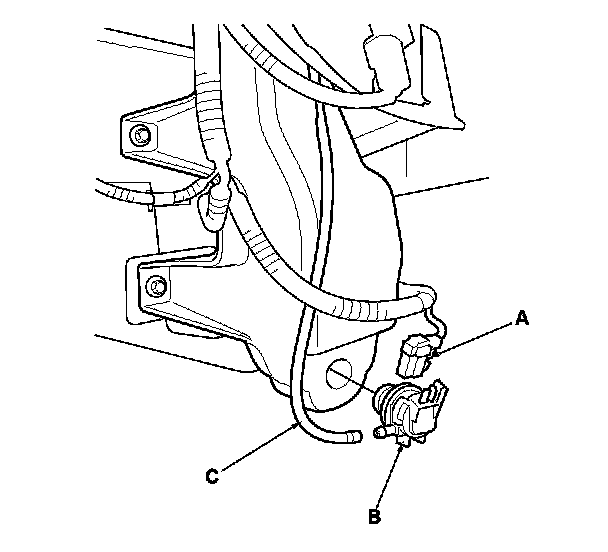

2. Disconnect the 2P connector(s) (A) from the windshield washer motor (B) and the washer fluid level switch*.
*: Canada models

3. Disconnect the windshield washer tube (C).

4-door





2-door





4. Remove the bolts (A) and the clip (B), then remove the washer reservoir.
Washer reservoir capacity:

2.5 L (2.6 US qt) (USA models)

4.5 L (4.8 US qt) (Canada models)

5. Install the washer reservoir in the reverse order of removal.
