Side Impact Sensor (Second) Replacement

Side Impact Sensor (Second) Replacement

Removal

1. Do the battery terminal disconnection procedure, Procedures then wait at least 3 minutes before starting work.

2. 4-door: Remove the rear seat cushion and seat side bolster. Rear Seat Cushion Cover Replacement

3. 2-door: Remove the rear side trim panel. Interior Trim Removal/Installation - Rear Side Area (2-Door)

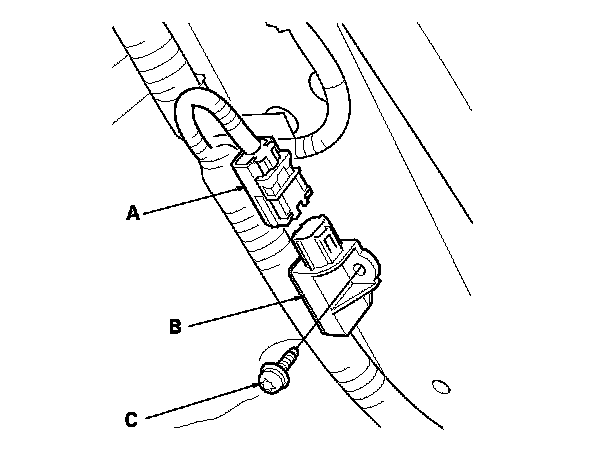

4. Disconnect the floor wire harness 2P connector (A) from the side impact sensor (second) (B).

5. Remove the TORX bolt (C) using a TORX T30 bit, then remove the side impact sensor (second).






Installation

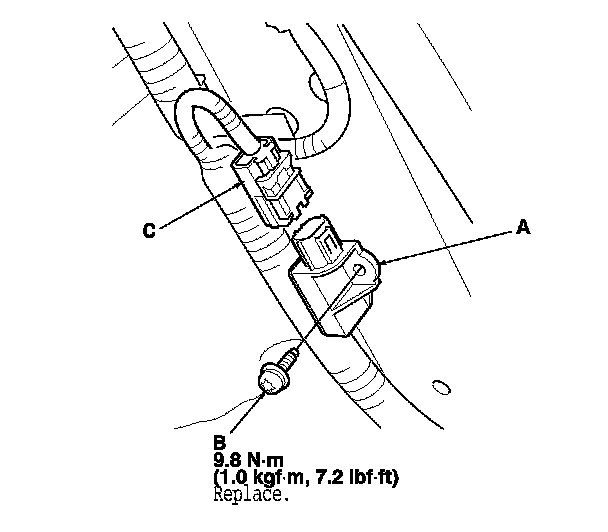

1. Install the side impact sensor (second) (A) with a new TORX bolt (B), using a TORX T30 bit.

2. Connect the floor wire harness 2P connector (C) to the side impact sensor (second).

3. Do the battery terminal reconnection procedure. Procedures

4. Clear any DTCs. Reading and Clearing Diagnostic Trouble Codes

5. Confirm proper operation: Turn the ignition switch to ON (II); the SRS indicator should come on for about 6 seconds and then go off.

6. Reinstall all removed parts.
