Sun Shade: Service and Repair

Moonroof Sunshade Replacement

1. Remove the drain channel. Moonroof Drain Channel Replacement

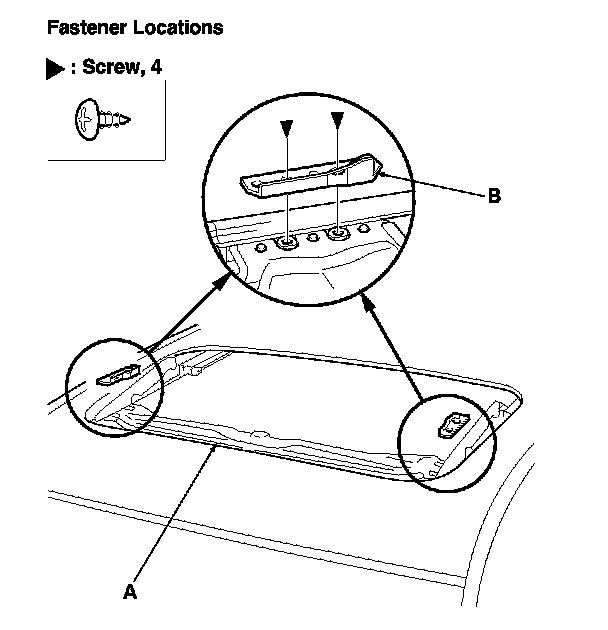

2. Slide the sunshade (A) until you can see both sunshade slider spacers (B).

3. Remove the screws, then remove both sunshade slider spacers.

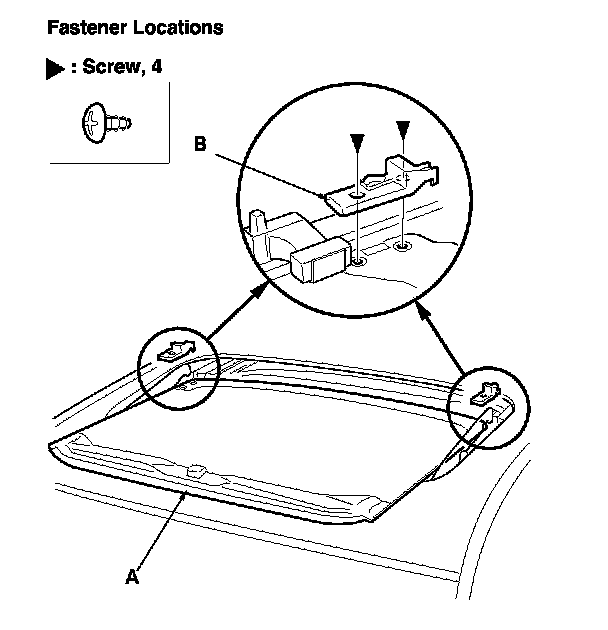

4. While lifting the front area of the sunshade (A), move the sunshade forward until you can see both sunshade rear hooks (B). Do not damage the sunshade or the sunshade rear hooks.

5. Remove the screws, then remove both sunshade rear hooks.

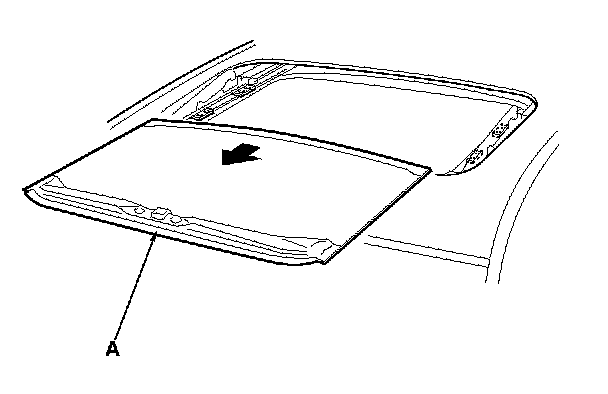

6. Remove the sunshade (A).

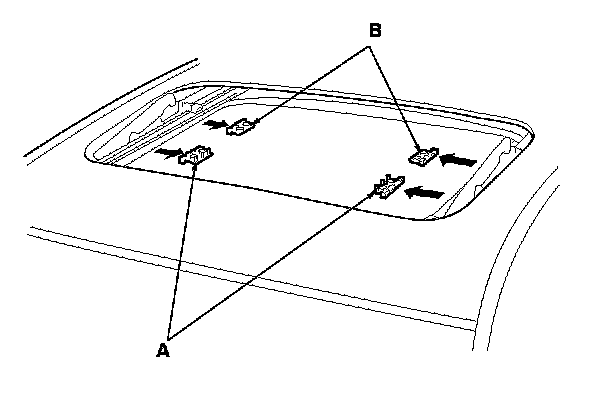

7. Remove both front sunshade base sliders (A) and both rear sunshade base sliders (B).

8. Install the sunshade in the reverse order of removal, and check the glass position adjustment. Adjustments

9. Check for water leaks. Adjustments Let the water run freely from a hose without a nozzle. Do not use a high-pressure spray.
