Front Grille Replacement (2-Door)

Front Grille Replacement

2-door - '09-10 Models

NOTE:

- Take care not to scratch the bumper or the grille.

- When prying with a flat-tip screwdriver, wrap it with protective tape to prevent damage.

1. Remove the front bumper. Service and Repair

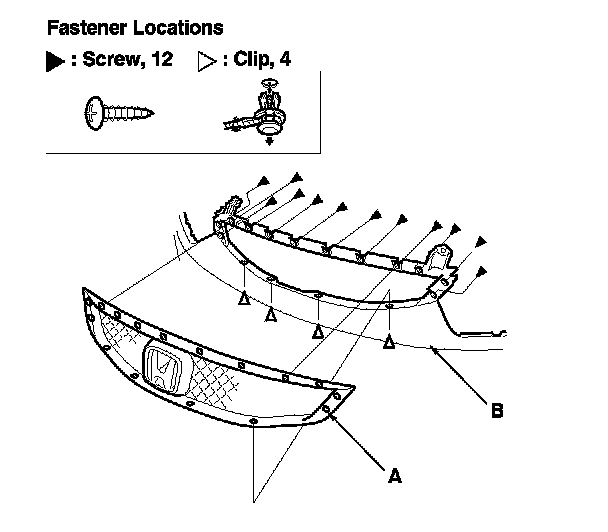

2. Remove the screws and detach the clips, then remove the front grille (A) from the front bumper (B).

3. Replace the emblem, if necessary. Emblem/Sticker Replacement (2-Door)

4. Install the grille in the reverse order of removal, and note these items:
- If the clips are damaged or stress-whitened, replace them with new ones.

- Push the clips into place securely.
