Quarter Glass Replacement

2-door

NOTE:

- Put on gloves to protect your hands.

- Use seat covers to avoid damaging any surface.

1. Remove these items:
- Rear seat cushion Rear Seat Removal/Installation

- Rear shelf Interior Trim Removal/Installation - Rear Shelf (2-Door)

- Rear shelf extension Interior Trim Removal/Installation - Rear Shelf Extension (2-Door)

- Rear side trim panel, as needed Interior Trim Removal/Installation - Rear Side Area (2-Door)

- Front seat belt upper anchor Front Seat Belt Replacement

- Quarter pillar trim Interior Trim Removal/Installation - Quarter Pillar Trim (2-Door)

2. Apply protective tape along the inside and outside edges of the body, and along the edge of the headliner. Make a hole with an awl through the adhesive from inside the vehicle. Push a piece of piano wire through the hole, and wrap each end around a piece of wood.

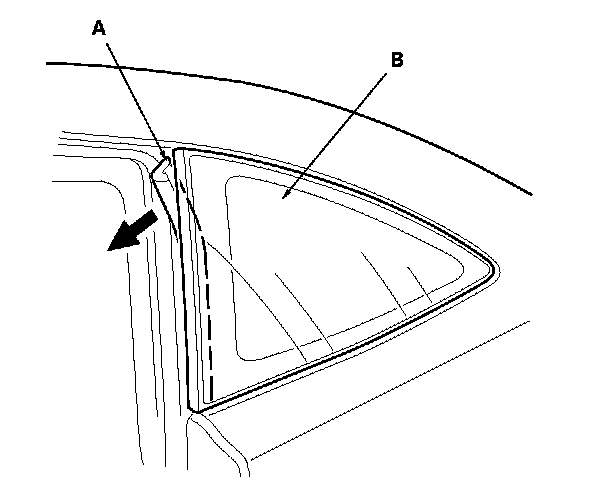

3. Remove the front seal (A) from the front edge of the quarter glass (B). If necessary, cut the front seal with a utility knife.

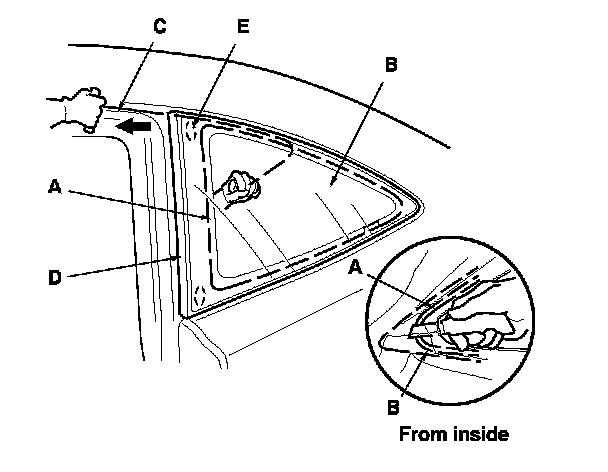

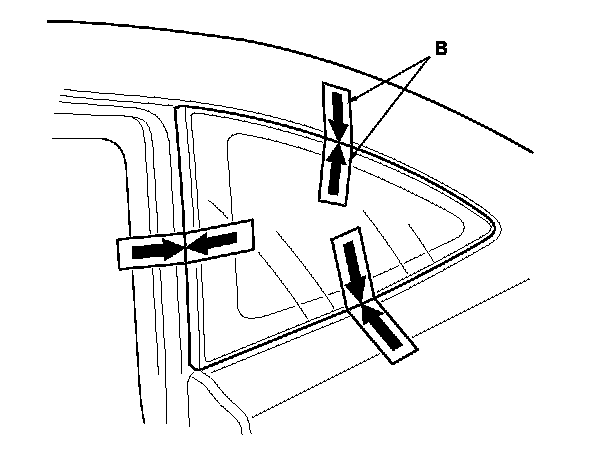

4. Carefully cut through the adhesive (A) at the rear corner portion of the quarter glass (B) with a utility knife. With a helper on the outside, pull the piano wire (C) back and forth in a sawing motion. Hold the piano wire as close to the quarter glass as possible to prevent damage to the body, and carefully cut through the adhesive around the entire quarter glass:
- If the quarter glass is to be reinstalled, take care not to damage the molding (D).

- If the molding is damaged, replace the quarter glass, molding, and clips (E) as an assembly.

- If any of the clips are broken, the quarter glass can be reinstalled using butyl tape (refer to step 11).

5. Carefully remove the quarter glass.

6. Scrape smooth the old adhesive, using a putty knife or similar tool, until there is a thickness of about 2 mm (0.08 in.) on the bonding surface around the entire quarter glass opening flange:
- Do not scrape down to the painted surface of the body; damaged paint will interfere with proper bonding.

- Remove the clips and fastener from the body.

7. Clean the body bonding surface with a shop towel dampened in isopropyl alcohol. After cleaning, keep oil, grease, and water from getting on the surface.

8. If the old quarter glass will be reinstalled, scrape off the old adhesive, the fasteners, and the rubber dam from the quarter glass with a putty knife. Clean the inside bonding surfaces on the face and the edge of the glass with isopropyl alcohol. Make sure the bonding surface is kept free of water, oil, and grease.






Cutting positions





9. Set the quarter glass in the opening. Make an alignment mark (A) to the quarter glass with a grease pencil as shown where the clip will be installed.

10. Remove the quarter glass.






11. If the old quarter glass will be reinstalled (and either clip is broken off the molding), apply a light coat of primer, then apply butyl tape (A) to the molding (B) as shown. Attach the clip (C) with adhesive tape to the inside face of the quarter glass (D):
- Be sure the clip line up with alignment mark (E) you made in step 9.

- Be careful not to touch the quarter glass where adhesive will be applied.

- Do not peel the separator off of the butyl tape.










12. Attach the front seal (A) with adhesive tape (B) onto the molding (C).

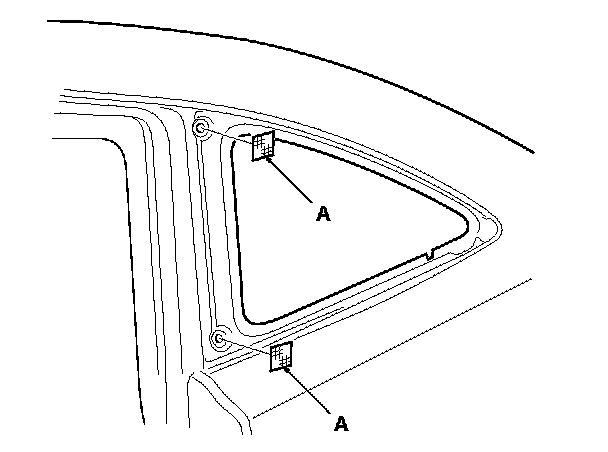

13. If the old quarter glass will be reinstalled (and either clip is broken off the molding), seal the body holes with pieces of urethane tape (A). Then set the quarter glass upright in the opening, and make alignment marks (B) across the quarter glass and body with a grease pencil at the three points shown. Be careful not to touch the quarter glass where adhesive will be applied.

14. Remove the quarter glass.

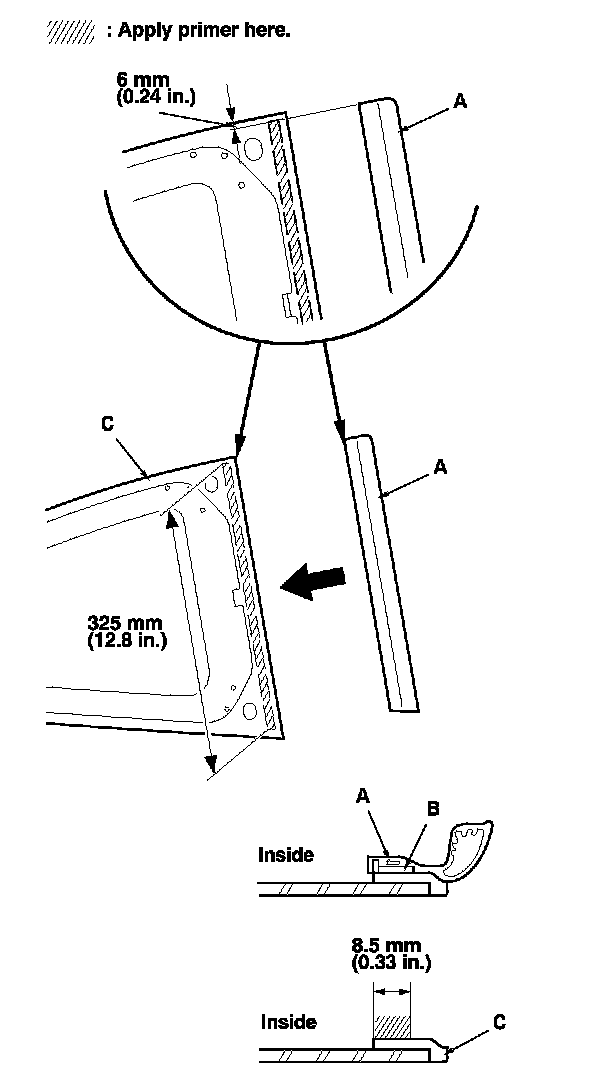

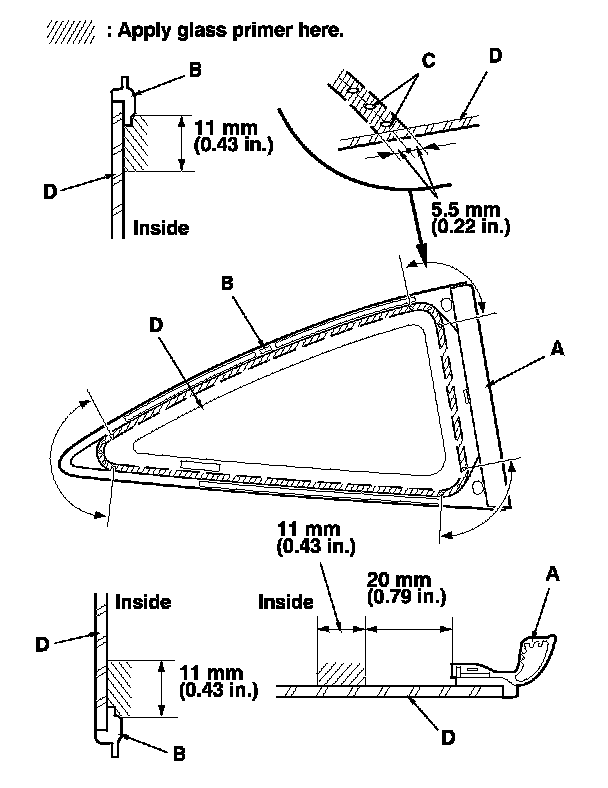

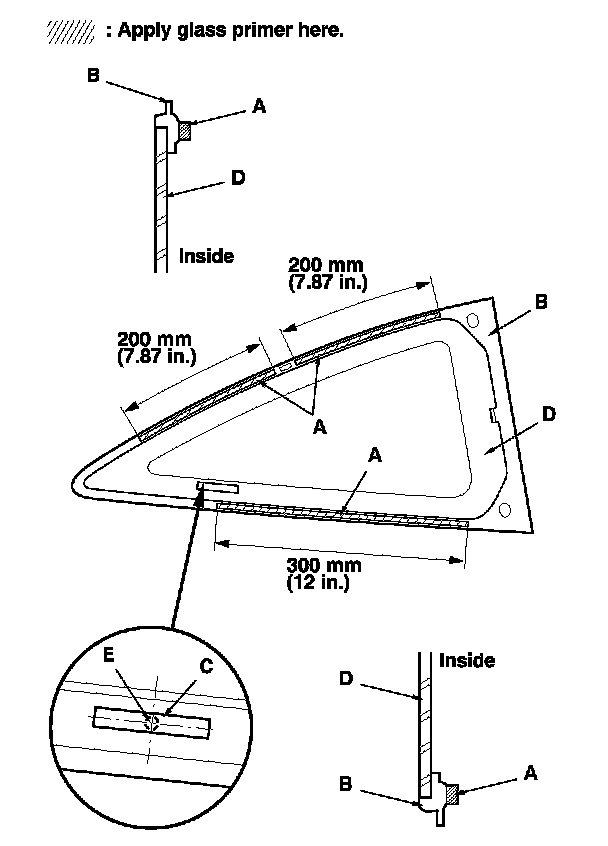

15. Apply a light coat of glass primer with a sponge applicator along the edge of the front seal (A) and molding (B) as shown, then lightly wipe it off with gauze or cheesecloth:
- With the printed dots (C) on the quarter glass (D) as a guide, apply the glass primer to the front portion of the quarter glass.

- Do not apply body primer to the quarter glass, and do not get body and glass primer sponge applicators mixed up.

- Never touch the primed surfaces with your hands. If you do, the adhesive may not bond to the quarter glass properly, causing a leak after the quarter glass is installed.

- Keep water, dust, and abrasive materials away from primed surfaces.

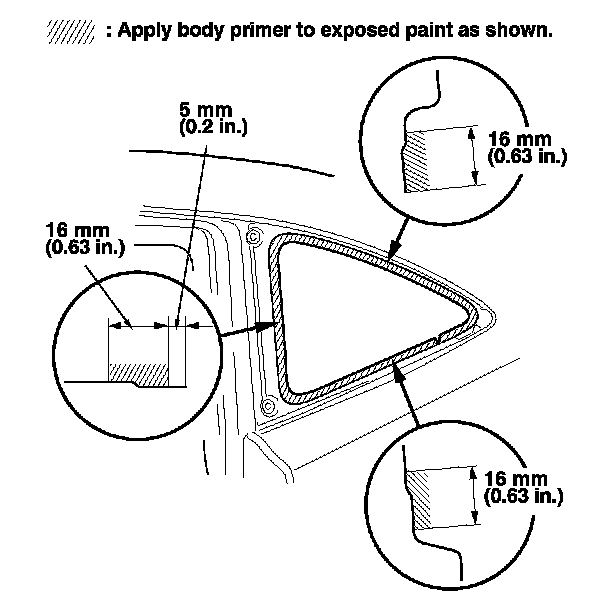

16. Carefully apply a light coat of body primer with a sponge applicator to any exposed paint or metal around the flange where new adhesive will be applied. Let the primer dry for at least 10 minutes:
- Do not apply body primer to any remaining original adhesive on the flange.

- Be careful not to mix up the body and glass primer sponge applicators.

- Never touch the primed surfaces with your hands.

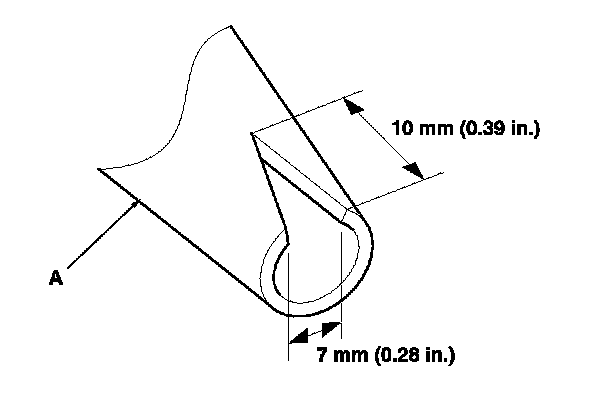

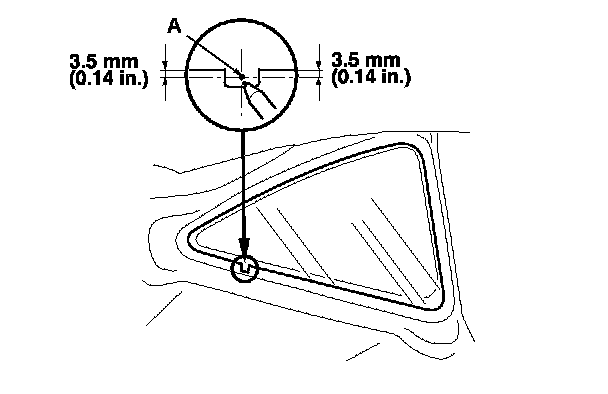

17. Cut a "V" in the end of the nozzle (A) on the adhesive cartridge as shown.

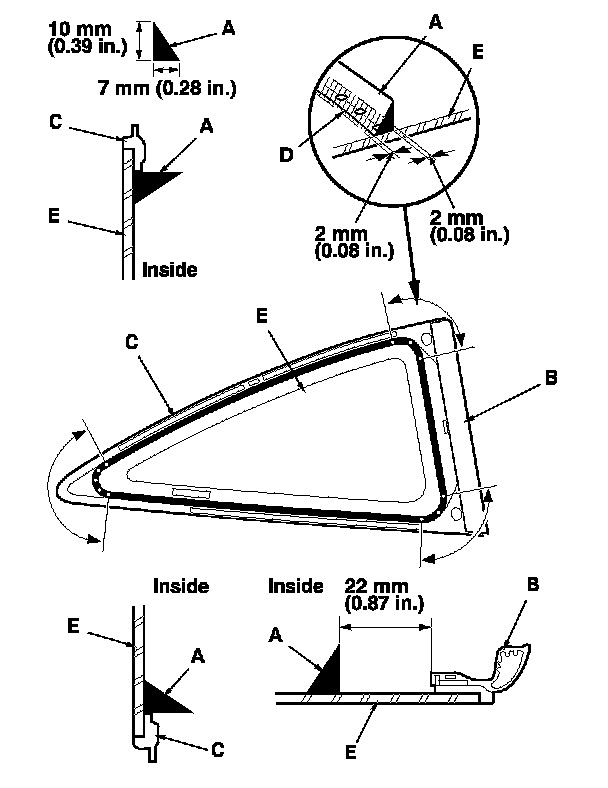

18. Put the cartridge in a caulking gun, and run a continuous bead of adhesive (A) around the edge of the front seal (B) and the molding (C) as shown. With the glass primer (D) you applied in step 15 on the quarter glass (E) as a guide, apply the adhesive to the upper and lower corner portions of the quarter glass. Apply the adhesive within 30 minutes after applying the glass primer. Make a slightly thicker bead at each corner.

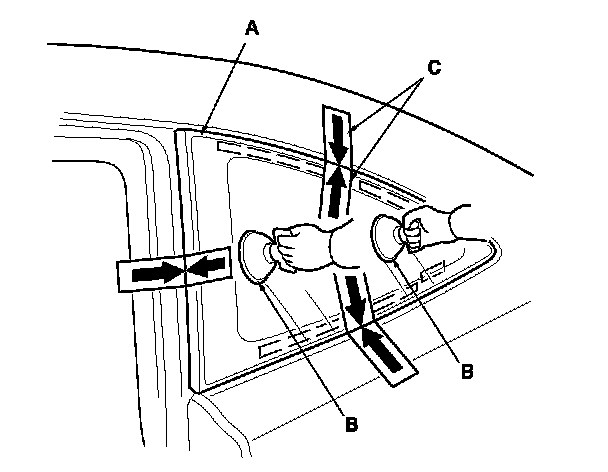

19. Hold the quarter glass (A) using suction cups (B) over the opening, align the clips or the alignment marks (C) made in step 13, and set it down on the adhesive. Lightly push on the quarter glass until its edges are fully seated on the adhesive all the way around.
NOTE: Do not open or close any of the doors for about an hour until the adhesive is dry.

20. Scrape or wipe off the excess adhesive with a putty knife or towel. To remove adhesive from a painted surface or the quarter glass, wipe with a soft shop towel dampened with isopropyl alcohol.

21. After the adhesive has dried, spray water over the quarter glass window and check for leaks. Mark the leaking areas, let the quarter glass window dry, then seal with sealant. Let the vehicle stand for at least 4 hours after quarter glass window installation. If the vehicle has to be used within the first 4 hours, it must be driven slowly.

22. Reinstall all remaining removed parts.
NOTE: Advise the customer not to do the following things for 2 to 3 days:

- Slam the doors with all the windows rolled up.

- Twist the body excessively (such as when going in and out of driveways at an angle or driving over rough, uneven roads).
