Trunk / Liftgate Latch: Service and Repair

Trunk Lid Latch Replacement

1. 4-door: If equipped, remove the trunk lid trim. Interior Trim Removal/Installation - Trunk Lid (4-Door)

2. Disconnect the cylinder rod from the lock cylinder:
- 2-door Trunk Lid Lock Cylinder Replacement (2-Door)

- 4-door Trunk Lid Lock Cylinder Replacement (4-Door)

3. Disconnect the trunk lid opener cable (A), and, if equipped, disconnect the trunk lid latch switch connector (B). Take care not to bend the opener cable.

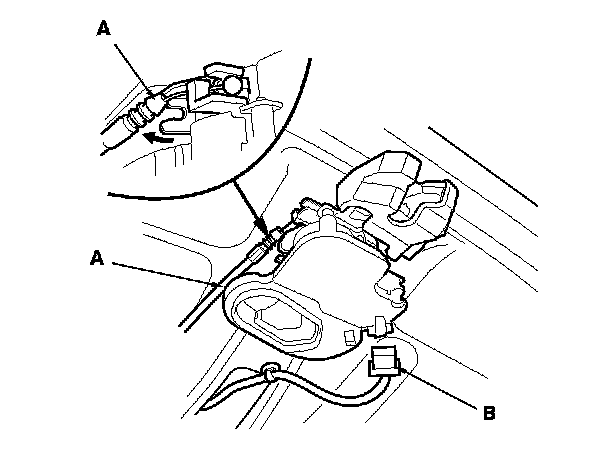

Power trunk lid latch

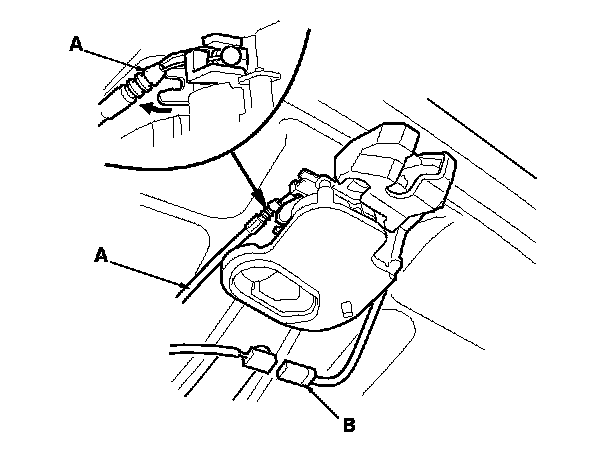

Manual trunk lid latch with security switch

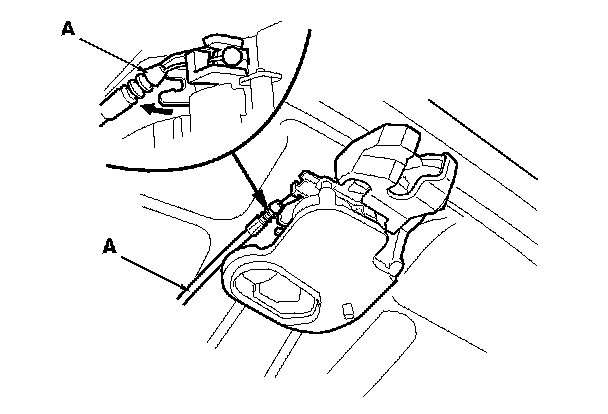

Manual trunk lid latch without security switch

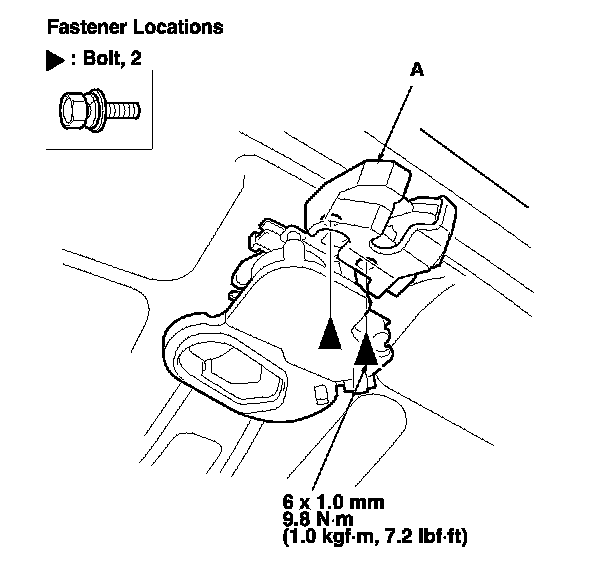

4. Remove the bolts from the trunk lid latch (A).

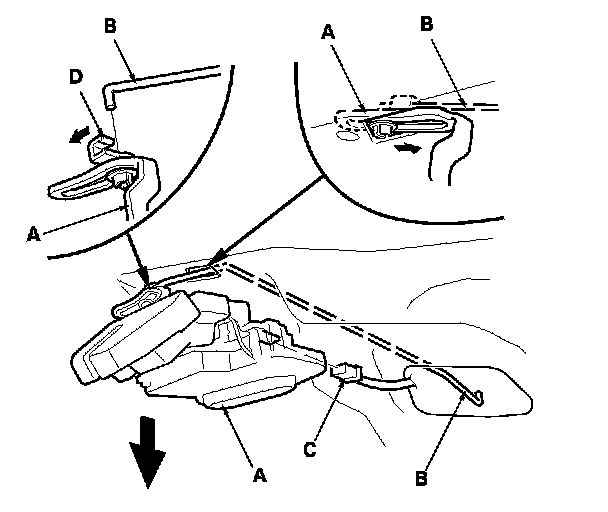

5. Pull the trunk lid latch (A) out, and disconnect the cylinder rod (B) from the trunk lid latch. If equipped, disconnect the latch switch connector (C). Take care not to bend the cylinder rod.
NOTE: Check for damaged or stress-whitened rod fastener (D).






6. Install the latch in the reverse order of removal, and note these items:
- Replace the rod fastener if it is damaged.

- Make sure the connector is plugged in properly, and the opener cable is connected properly.

- Make sure the trunk lid opens properly and locks securely.

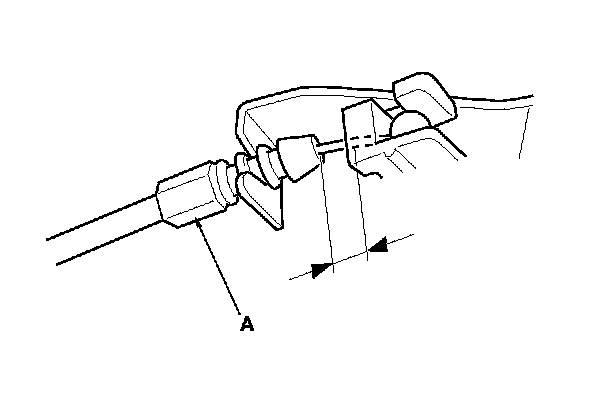

- If the trunk latch does not operate properly, adjust the position of the cable end (A) on the latch.
