71-1x




SRS DTC Troubleshooting: 71-1x (x can be 0 thru 9 or A thru F)

DTC 71-1x ("x" can be 0 thru 9 or A thru F):Open in the Driver's Seat Position Sensor

NOTE: Before doing this troubleshooting procedure, review SRS Precautions and Procedures, Technician Safety Information General Troubleshooting Information, Initial Inspection and Diagnostic Overview and Battery Terminal Disconnection and Reconnection. Procedures

1. Clear the DTC memory. Initial Inspection and Diagnostic Overview

2. Turn the ignition switch to ON (II), and check that the SRS indicator comes on for about 6 seconds and then goes off.

Does the SRS indicator stay on, and is DTC 71-1x indicated?
YES - Go to step 3.

NO - Intermittent failure, system is OK at this time. Go to Troubleshooting Intermittent Failures. Initial Inspection and Diagnostic Overview If another DTC is indicated, troubleshoot the DTC.


3. Check the connection between the seat position sensor harness 2P connector and the driver's seat position sensor. SRS Component Location Index (4-Door)

4. Clear the DTC memory.

5. Read the DTC. Initial Inspection and Diagnostic Overview

Is DTC 71-1x indicated?
YES - Go to step 6.

NO - Intermittent failure, system is OK at this time. Go to Troubleshooting Intermittent Failures. Initial Inspection and Diagnostic Overview If another DTC is indicated, troubleshoot the DTC.


6. Turn the ignition switch to LOCK (0). Disconnect the negative cable from the battery, then wait at least 3 minutes.

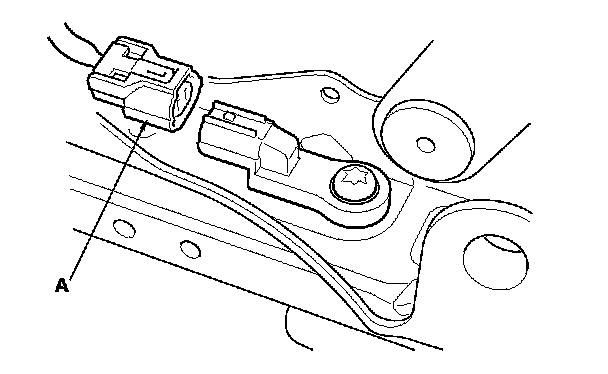

7. Disconnect the driver's seat wire harness 2P connector (A) from the driver's seat position sensor.

8. Install a jumper wire between driver's seat wire harness 2P connector terminals No. 1 and No. 2.

9. Disconnect both seat belt buckle tensioner 4P connectors Technician Safety Information and the both seat belt tensioner 4P connectors. Technician Safety Information

10. Disconnect SRS unit connector B (28P) from the SRS unit. Technician Safety Information

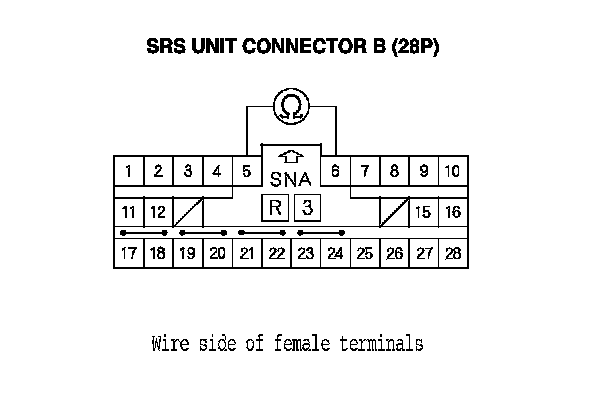

11. Measure the resistance between SRS unit connector B (28P) terminals No. 5 and No. 6. There should be less than 1.0 Ohms.

Is the resistance as specified?
YES - Faulty driver's seat position sensor or SRS unit; replace the driver's seat position sensor, Service and Repair then clear the DTC. If the problem is still present, replace the SRS unit. SRS Unit Replacement

NO - Open in the floor wire harness, driver's seat wire harness (with seat heater) or the seat position sensor harness; replace the faulty harness, then clear the DTC.
