33-1x

SRS DTC Troubleshooting: 33-1x (x can be 0 thru 9 or A thru F)

DTC 33-1x ("x" can be 0 thru 9 or A thru F):Open in the Left Side Curtain Airbag Inflator

Special Tools Required

- SRS inflator simulator 07SAZ-TB4011A
- SRS simulator lead L 070AZ-SNAA300

NOTE: Before doing this troubleshooting procedure, review SRS Precautions and Procedures, Technician Safety Information General Troubleshooting Information, Initial Inspection and Diagnostic Overview and Battery Terminal Disconnection and Reconnection. Procedures

1. Clear the DTC memory. Initial Inspection and Diagnostic Overview

2. Turn the ignition switch to ON (II), and check that the SRS indicator comes on for about 6 seconds and then goes off.

Does the SRS indicator stay on, and is DTC 33-1x indicated?
YES - Go to step 3.

NO - Intermittent failure, system is OK at this time. Go to Troubleshooting Intermittent Failures. Initial Inspection and Diagnostic Overview If another DTC is indicated, troubleshoot the DTC.


3. Turn the ignition switch to LOCK (0). Disconnect the negative cable from the battery, then wait at least 3 minutes.

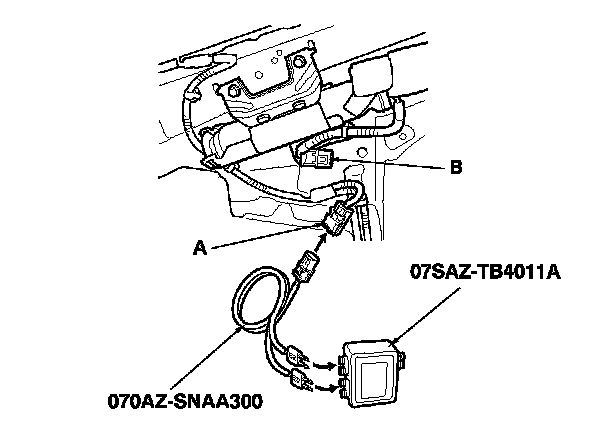

4. Remove the headliner, Service and Repair then disconnect the floor wire harness 2P connector (A) from the left side curtain airbag connector (B).

5. Connect the SRS inflator simulator (2 Ohms connectors) and simulator lead L to the floor wire harness.

6. Reconnect the negative cable to the battery.

7. Clear the DTC memory.






8. Read the DTC. Initial Inspection and Diagnostic Overview

Is DTC 33-1x indicated?
YES - Go to step 9.

NO - Open in the left side curtain airbag; replace the left side curtain airbag, Side Curtain Airbag Replacement then clear the DTC.


9. Turn the ignition switch to LOCK (0). Disconnect the negative cable from the battery, then wait at least 3 minutes.

10. Disconnect both seat belt buckle tensioner 4P connectors Technician Safety Information and the both seat belt tensioner 4P connectors. Technician Safety Information

11. Disconnect SRS unit connector B (28P) from the SRS unit. Technician Safety Information Do not disconnect the simulator lead from the floor wire harness.

12. Disconnect the SRS inflator simulator from the SRS simulator lead. Do not disconnect the simulator lead from the floor wire harness 2P connector.

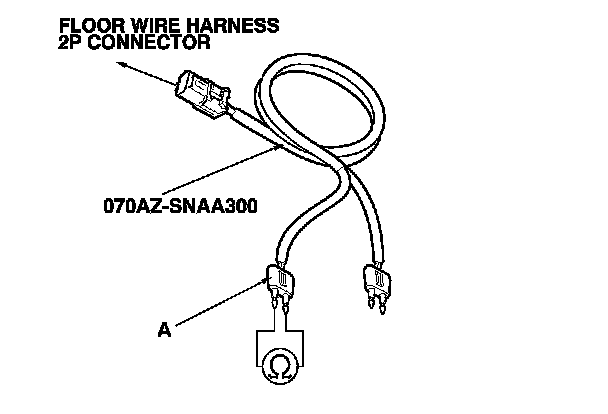

13. Measure the resistance between the terminals of the black SRS simulator lead (A). There should be less than 1.0 Ohms.

Is the resistance as specified?
YES - Faulty SRS unit or poor connection at the SRS unit connector B (28P) and the SRS unit. Check the connection; if the connection is OK, replace the SRS unit. SRS Unit Replacement

NO - Open in the floor wire harness; replace the floor wire harness, then clear the DTC.
