Transmission Position Sensor/Switch: Locations

185. Left Side Of Engine Compartment:

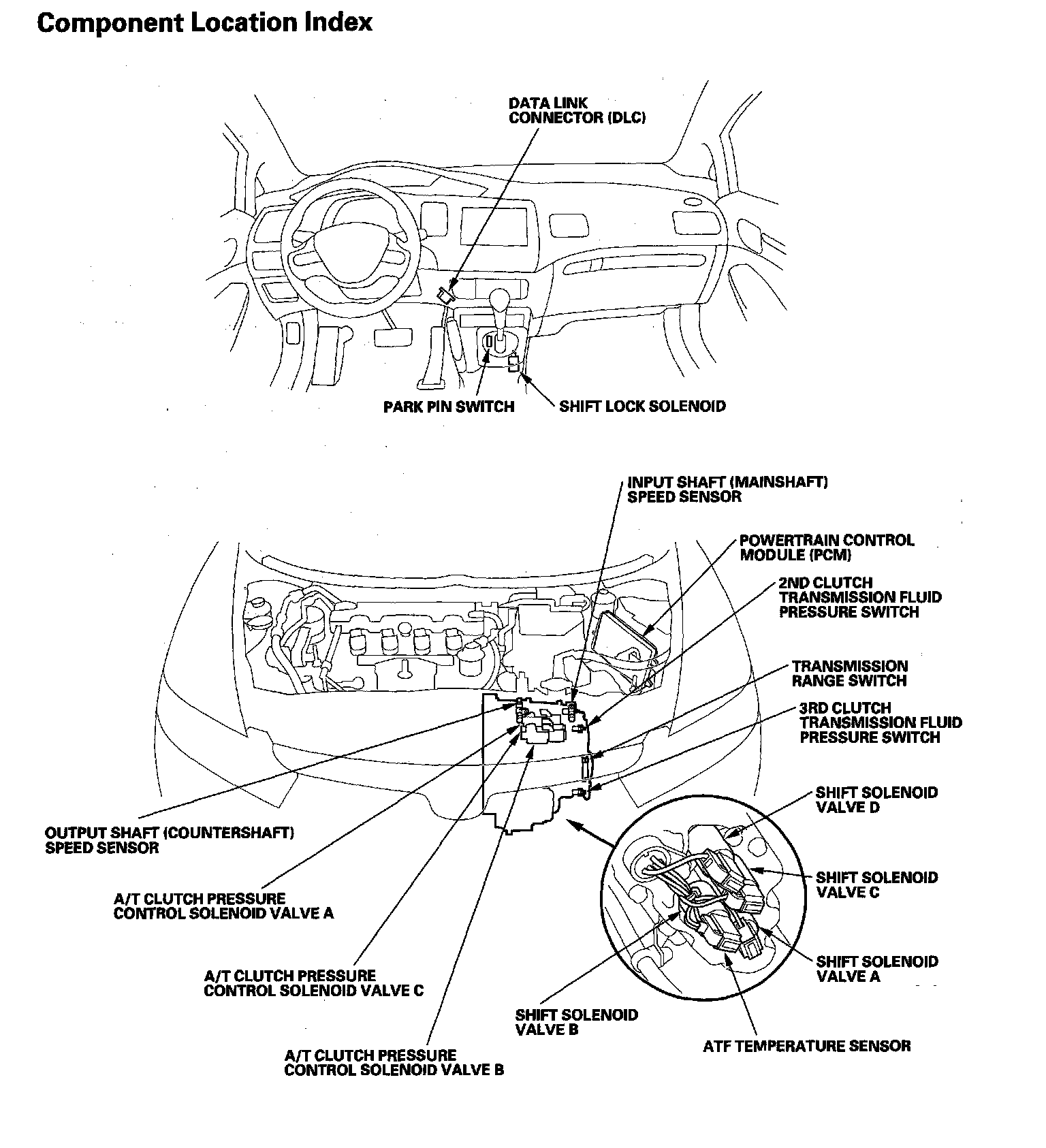

Automatic Transmission Component Location Index:



A/T Gear Position Indicator Component Location Index:
