Home >> Honda >> 2008 >> Civic L4-1.8L CNG >> Repair and Diagnosis >> Powertrain Management >> Computers and Control Systems >> Throttle Position Sensor >> Locations

Throttle Position Sensor: Locations

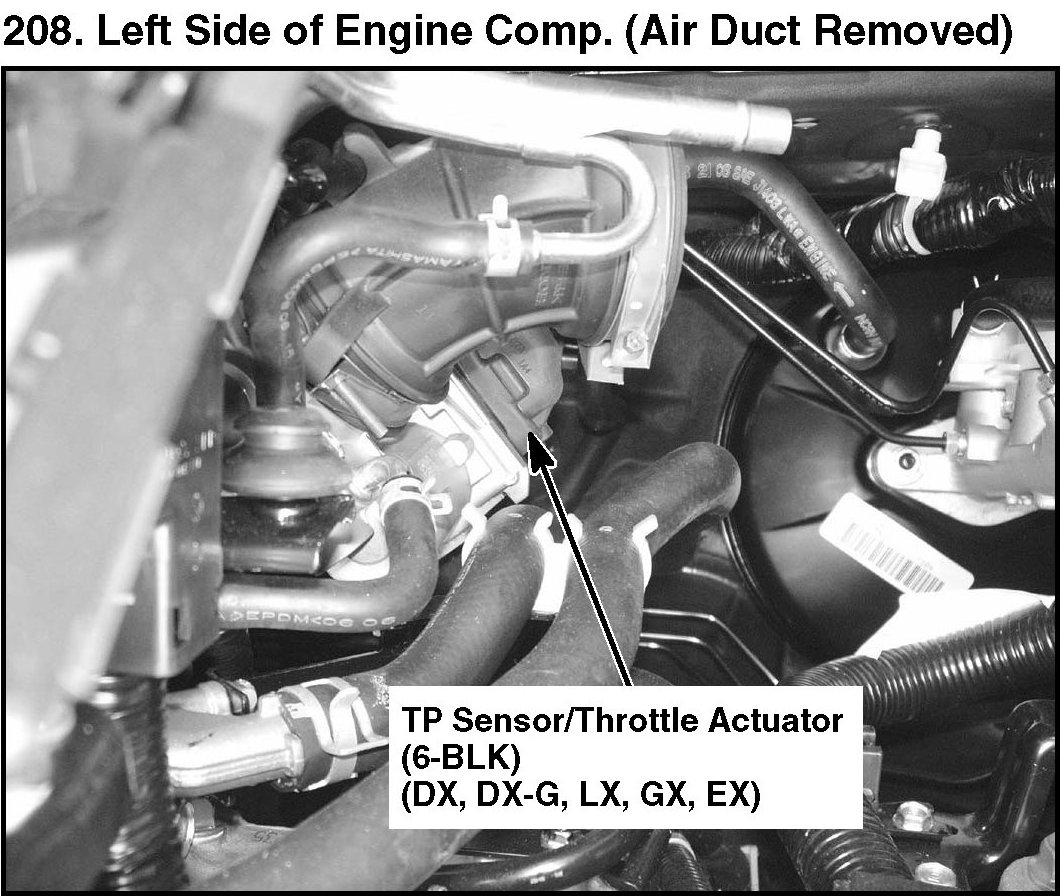

208. Left Side Of Engine Comp. (Air Duct Removed):

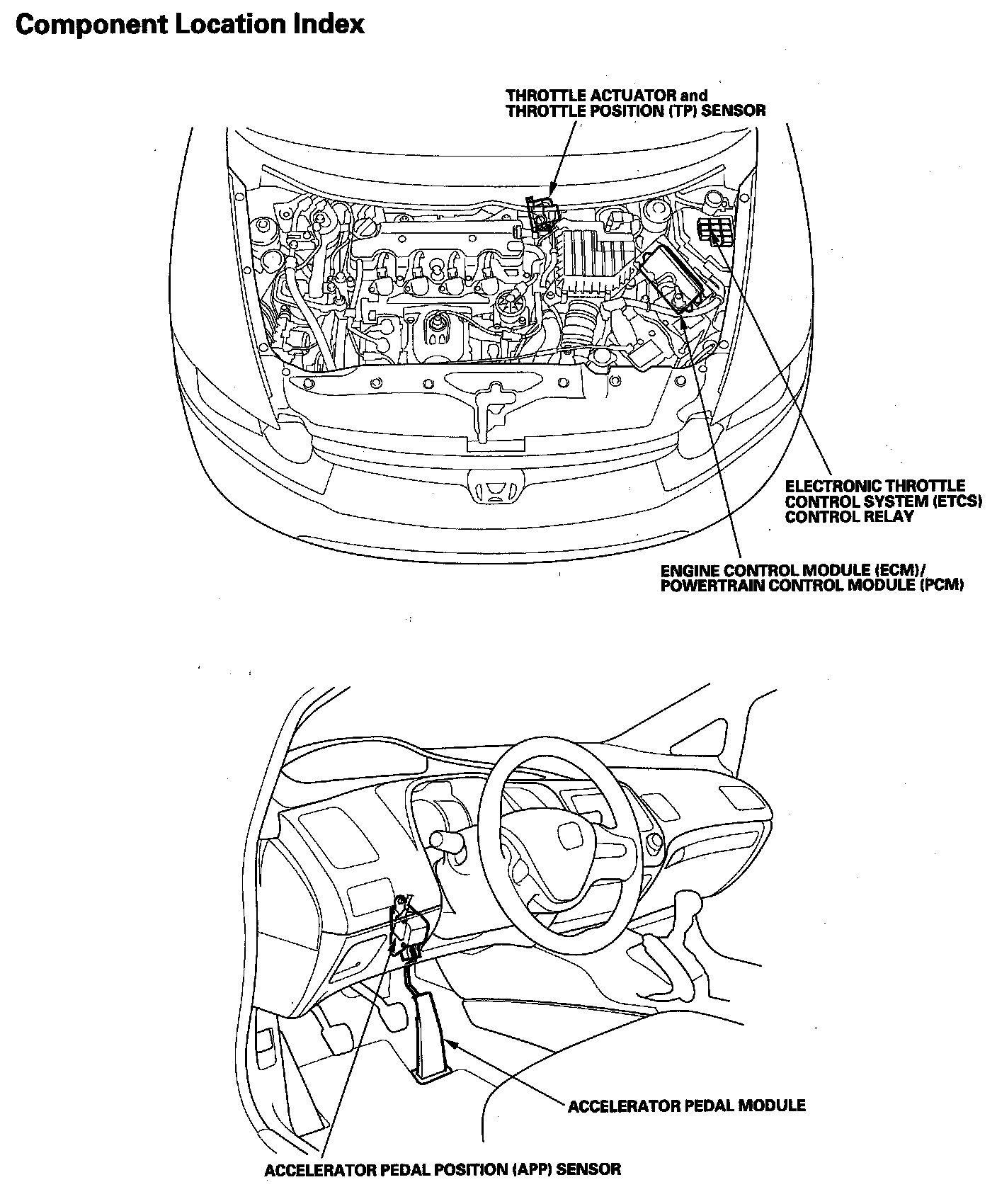

Electronic Throttle Control System Component Location Index:
