Power Steering Pressure Switch: Locations

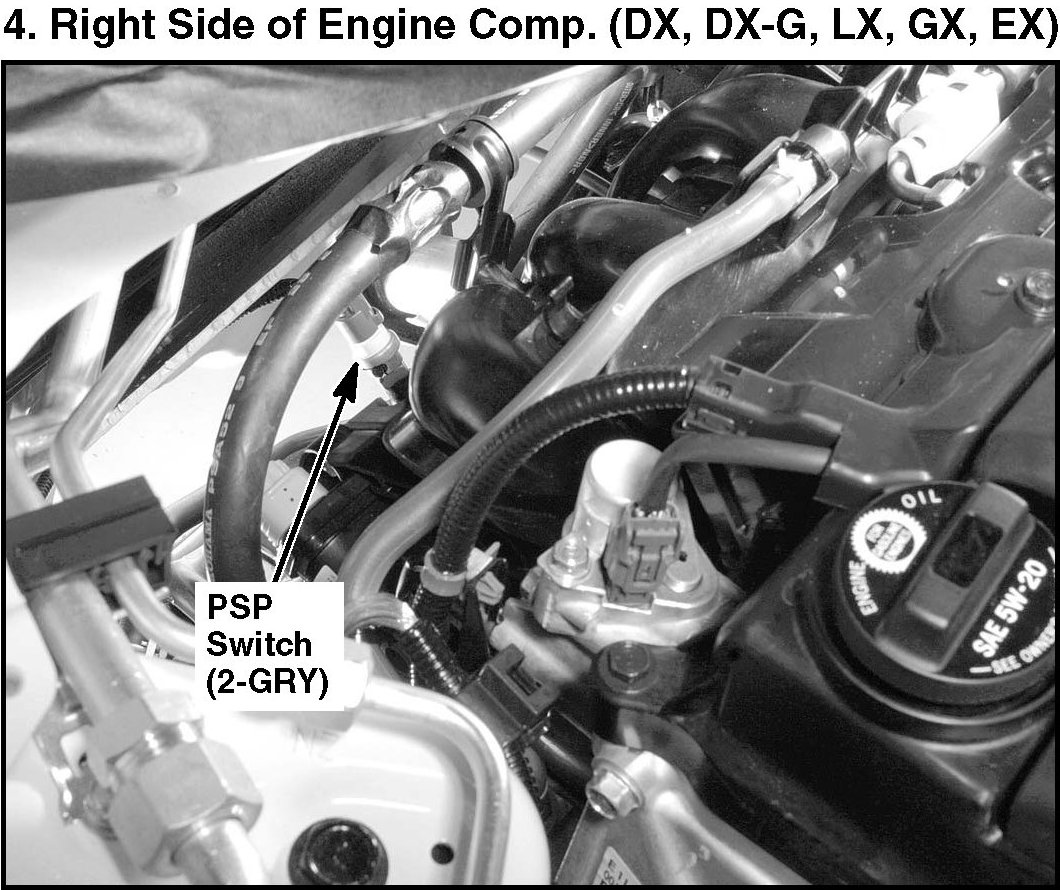

4. Right Side Of Engine Comp. (DX, DX-G, LX, GX, EX):

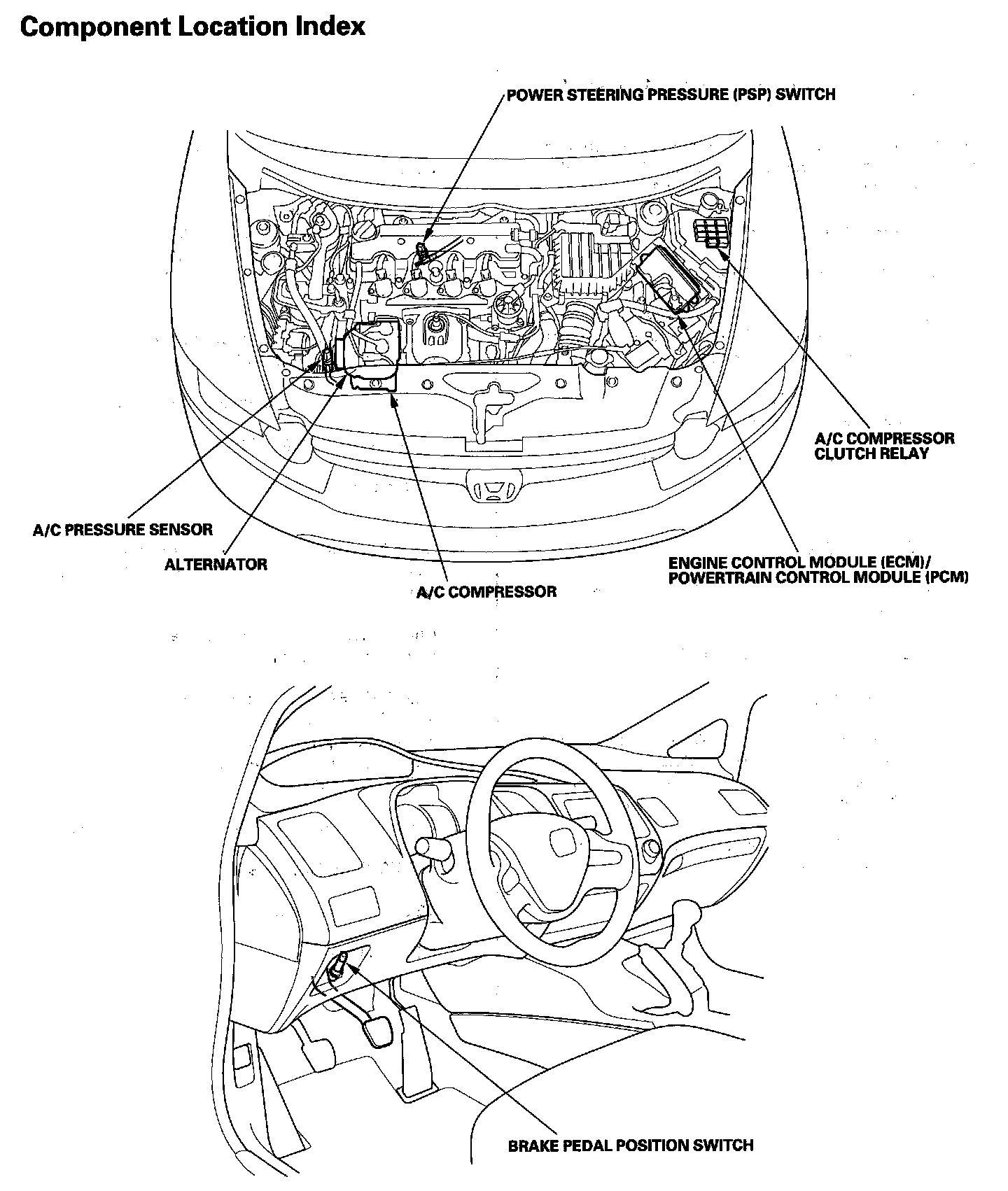

Idle Control System Component Location Index:
