Home >> Honda >> 2006 >> Civic L4-1.8L CNG >> Repair and Diagnosis >> Powertrain Management >> Transmission Control Systems >> Testing and Inspection >> Pinout Values and Diagnostic Parameters

Pinout Values and Diagnostic Parameters

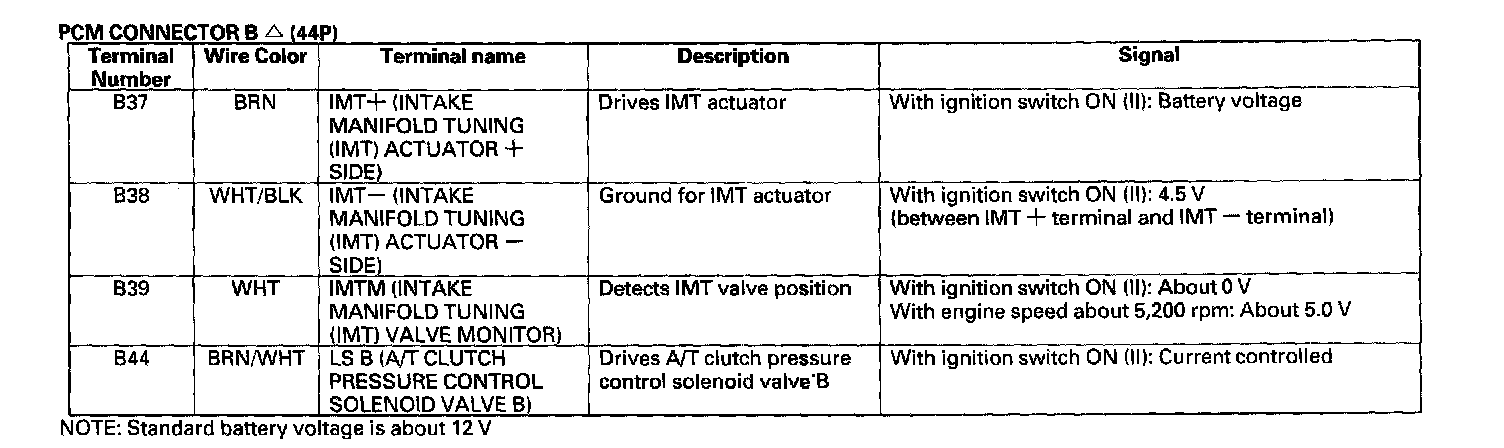

PCM A/T Control System Inputs and Outputs:

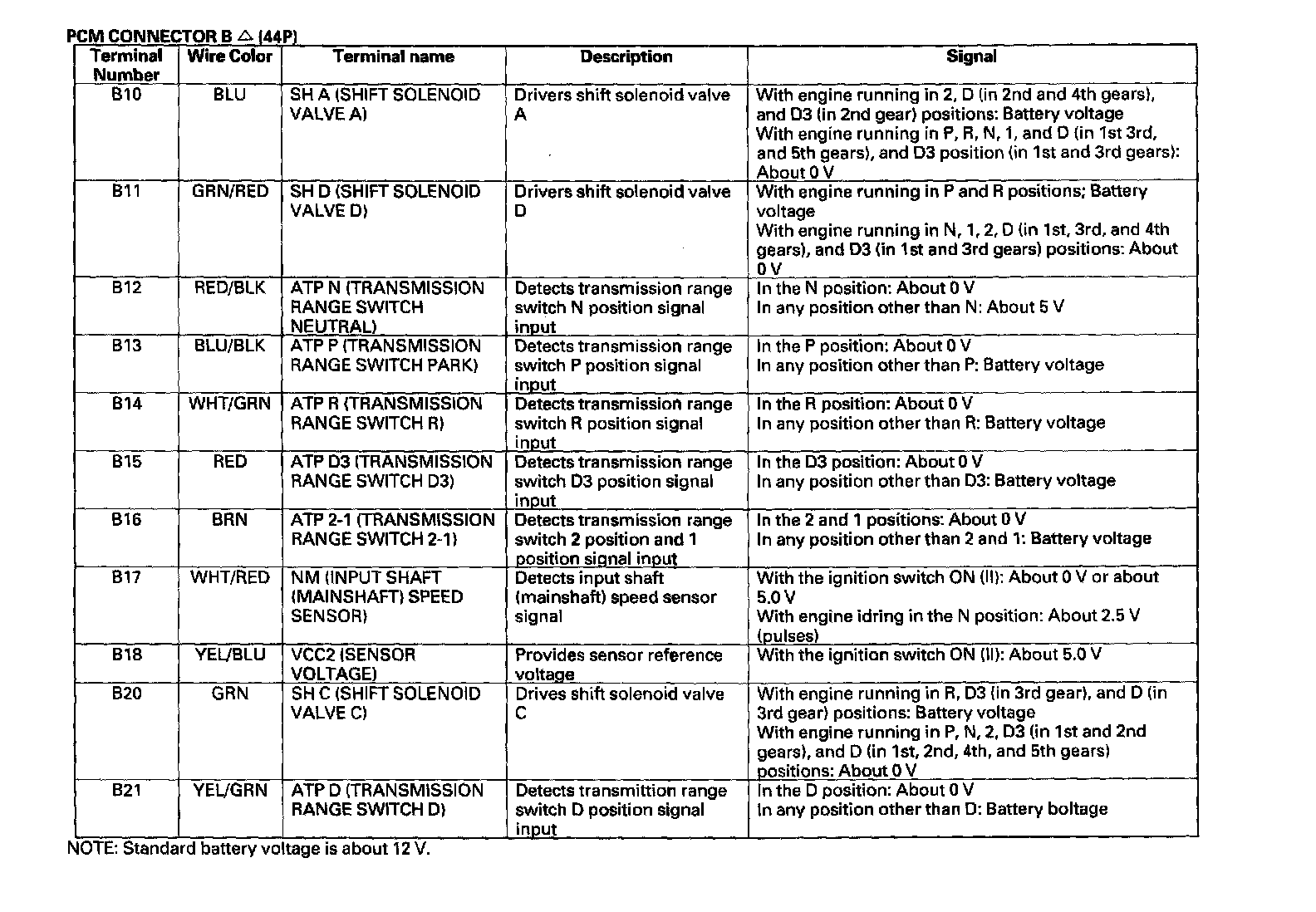

PCM A/T Control System Inputs and Outputs:

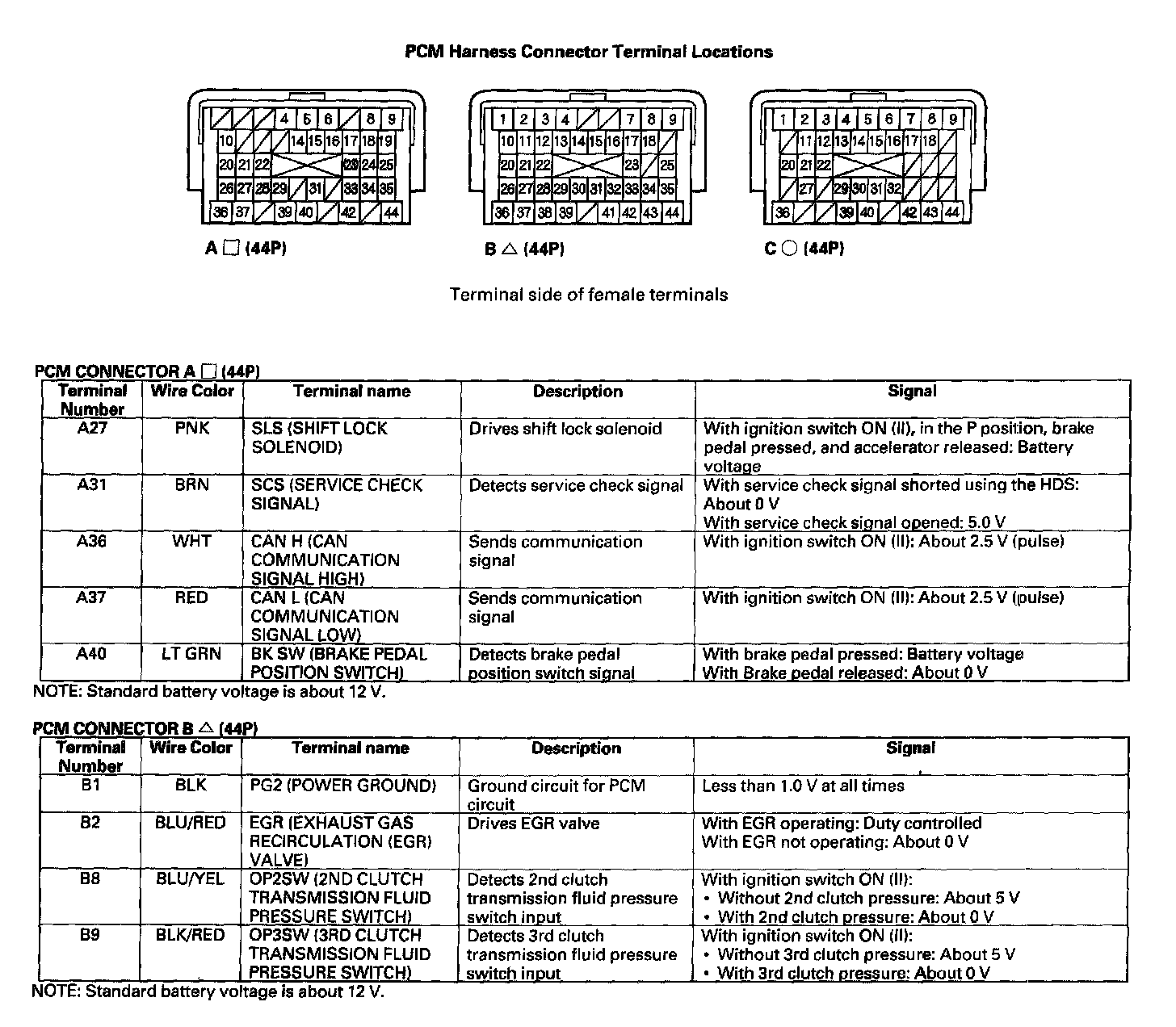

PCM A/T Control System Inputs and Outputs:

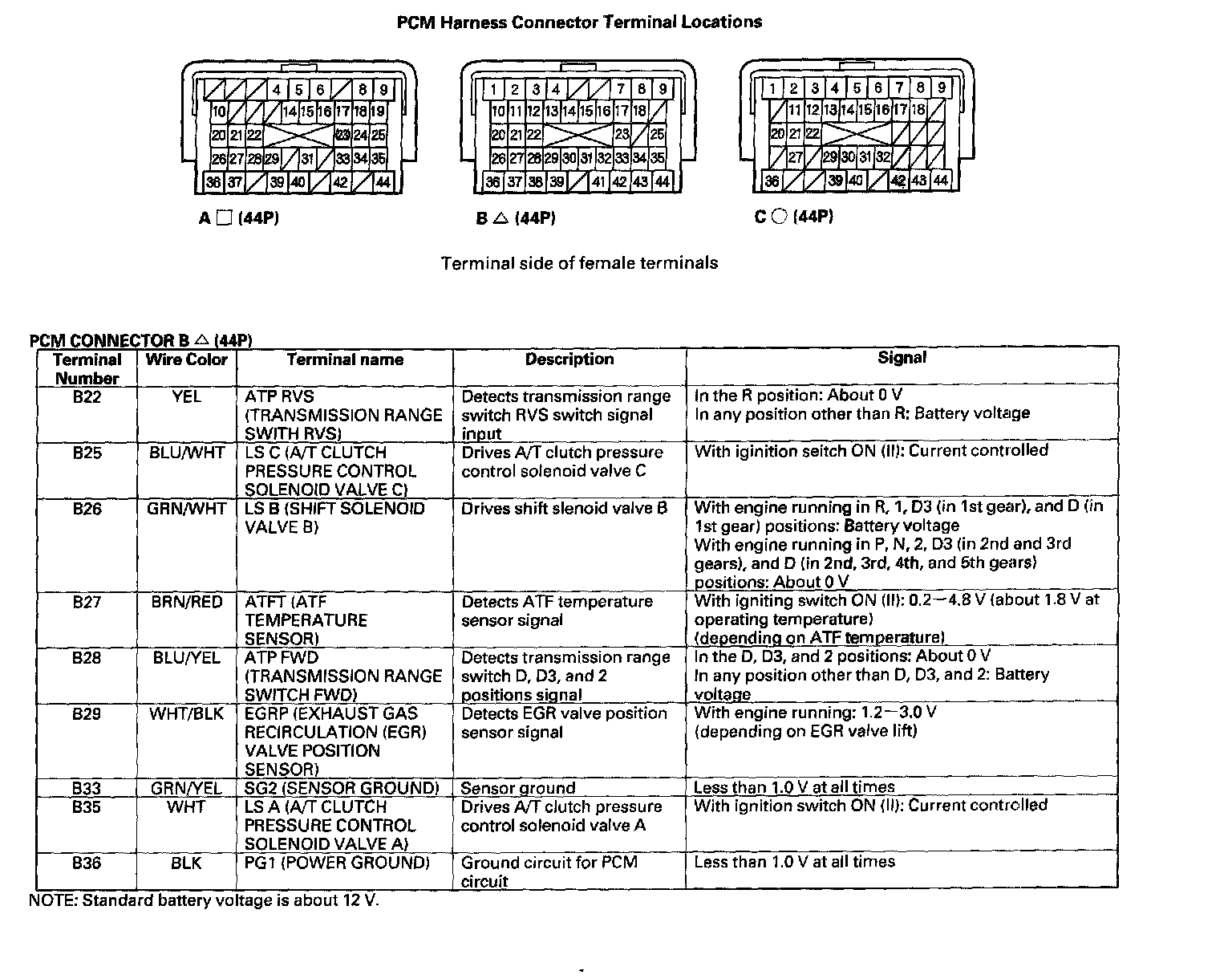

PCM A/T Control System Inputs and Outputs:

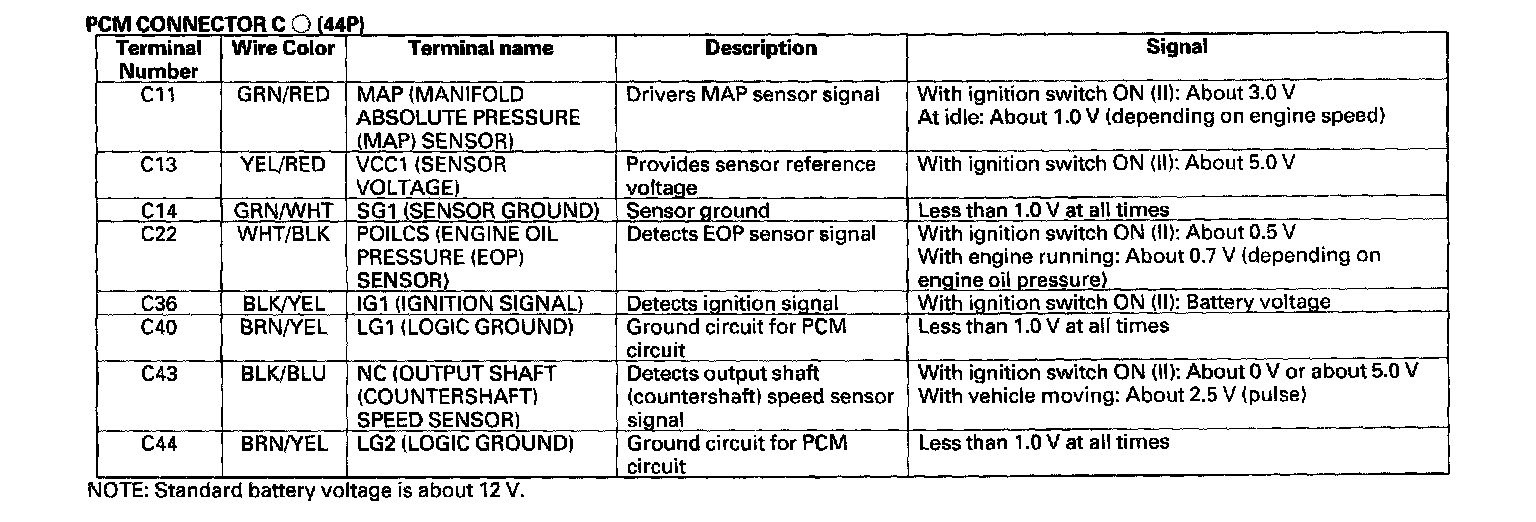

PCM A/T Control System Inputs and Outputs:





PCM A/T Control System Inputs and Outputs
