Home >> Honda >> 2006 >> Civic L4-1.3L Hybrid >> Repair and Diagnosis >> Hybrid Drive Systems >> Power Control System >> Drive Motor Control Module >> Testing and Inspection >> Pinout Values and Diagnostic Parameters >> BCM Module Inputs and Outputs at Connector

BCM Module Inputs and Outputs at Connector

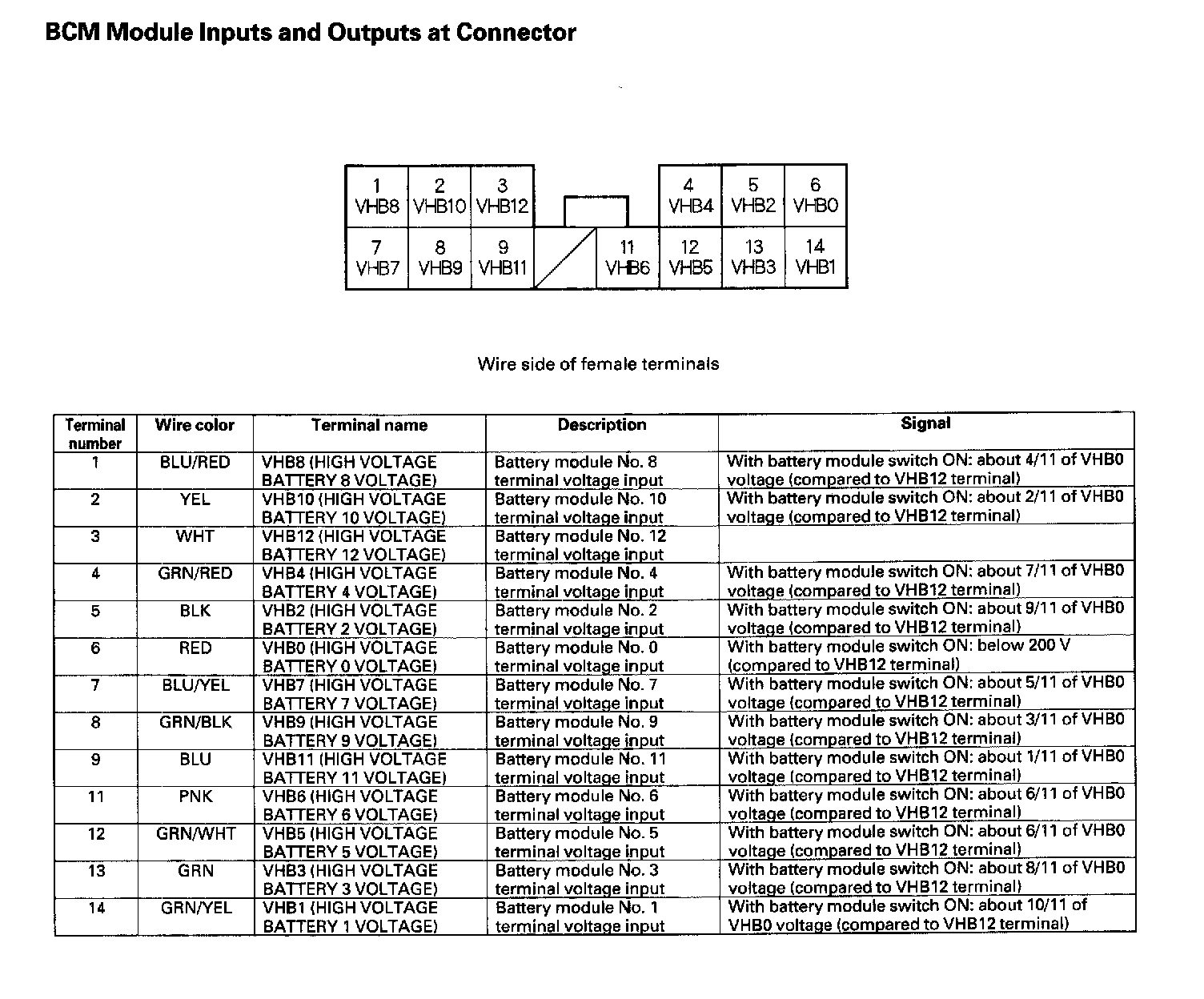

BCM Module Inputs and Outputs at Connector:
