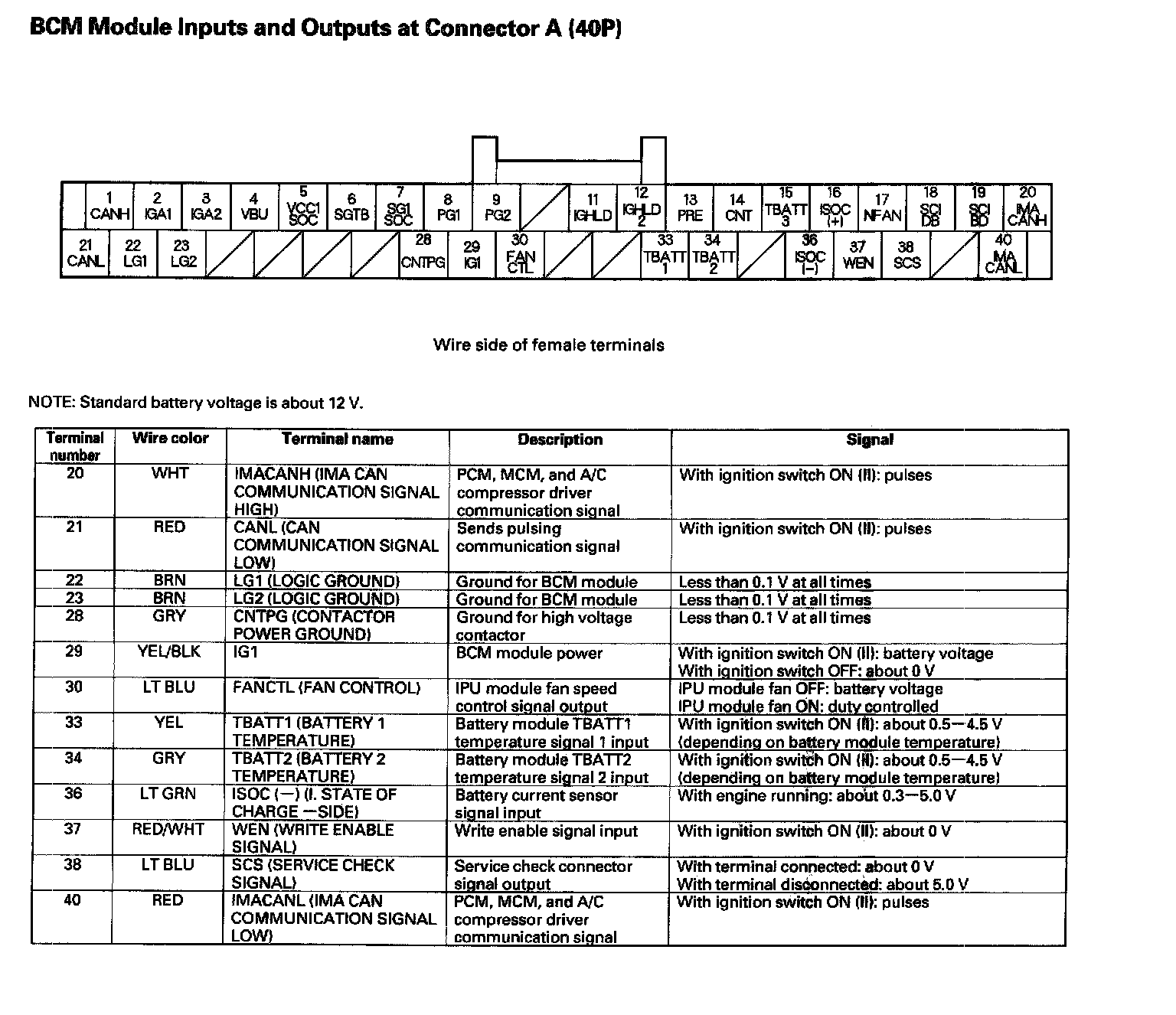

BCM Module Inputs and Outputs at Connector A (40P)

BCM Module Inputs and Outputs at Connector A (40P):
