Fuel Tank Pressure Sensor: Locations

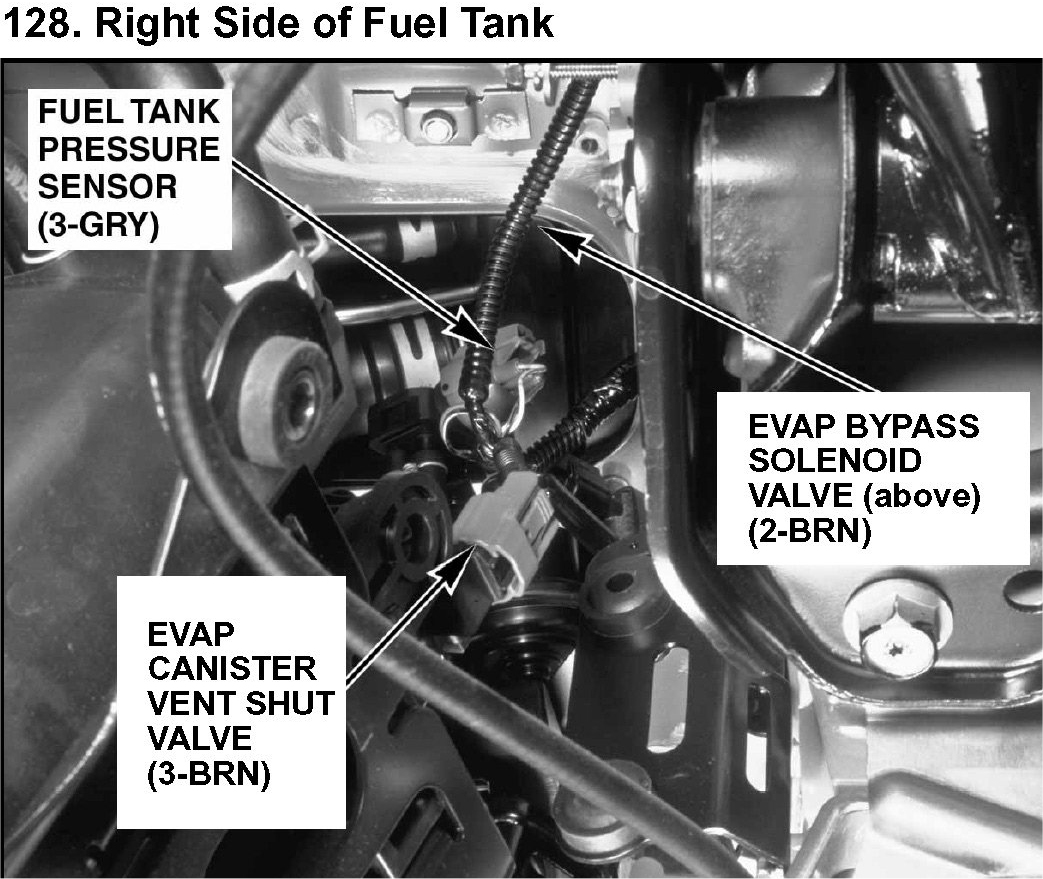

128. Right Side of Fuel Tank:

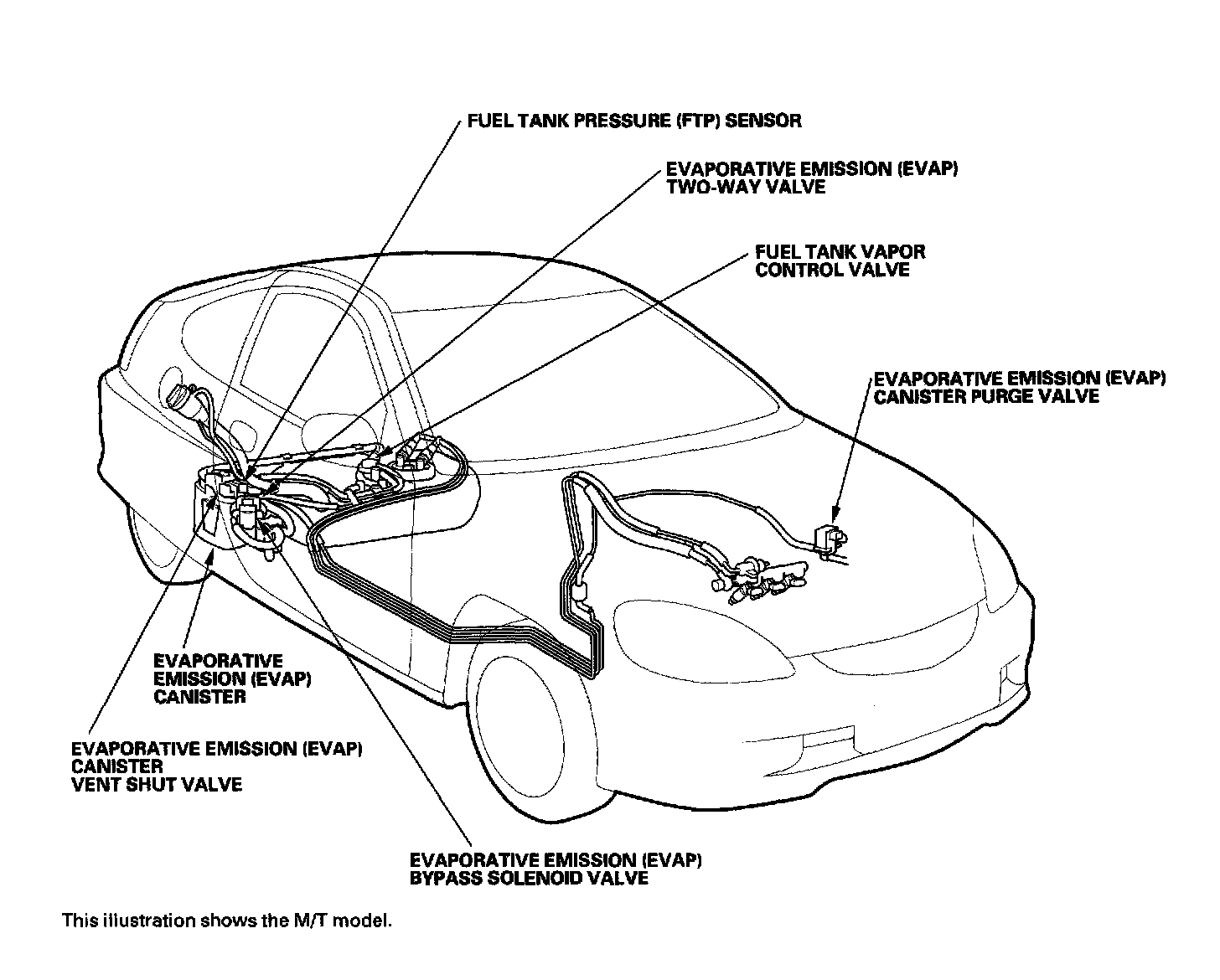

Component Location Index - EVAP System:
