Home >> Honda >> 2004 >> Civic L4-1.7L SOHC >> Repair and Diagnosis >> Diagrams >> Exploded Views >> Exhaust Pipe

Exhaust Pipe

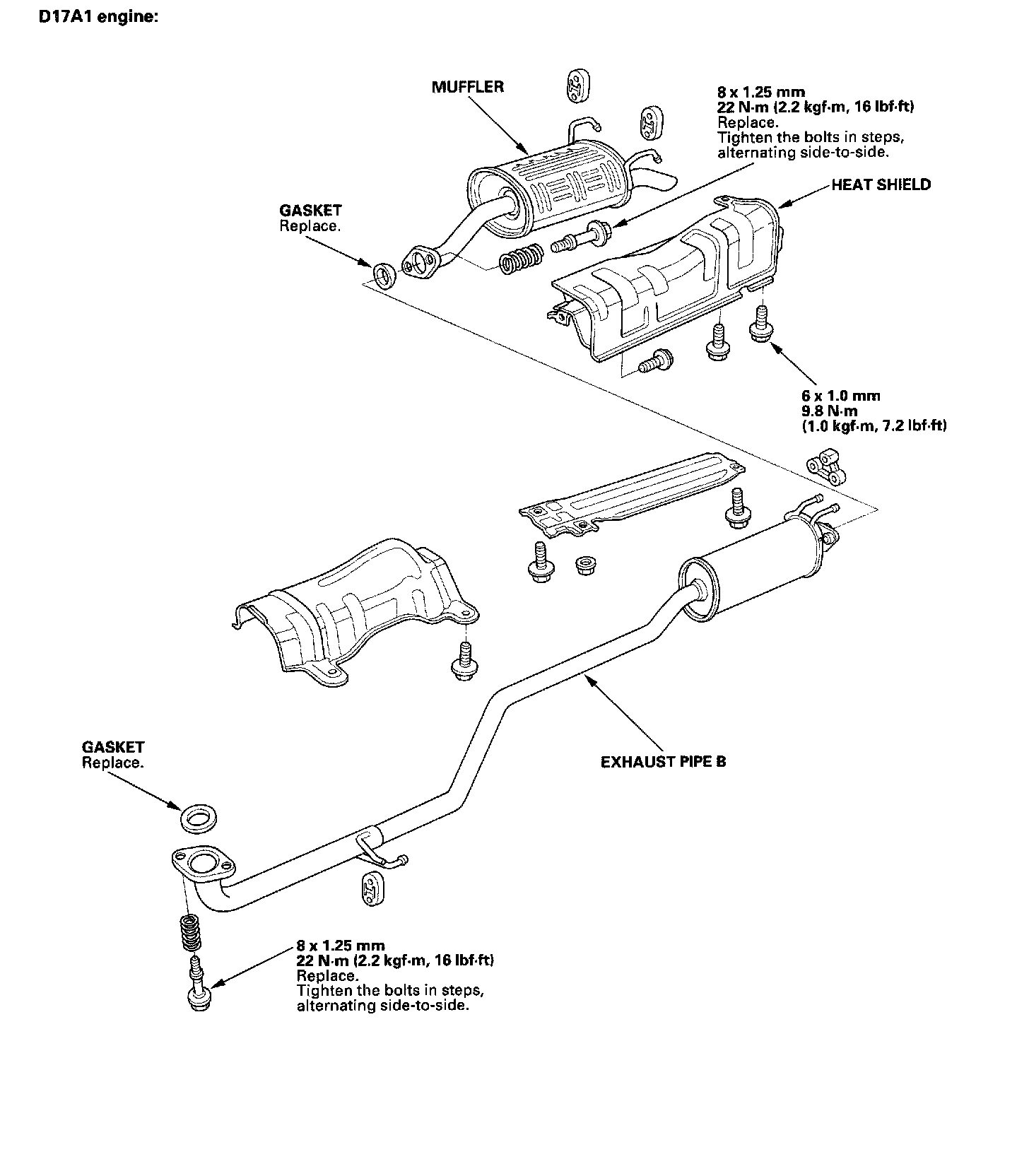

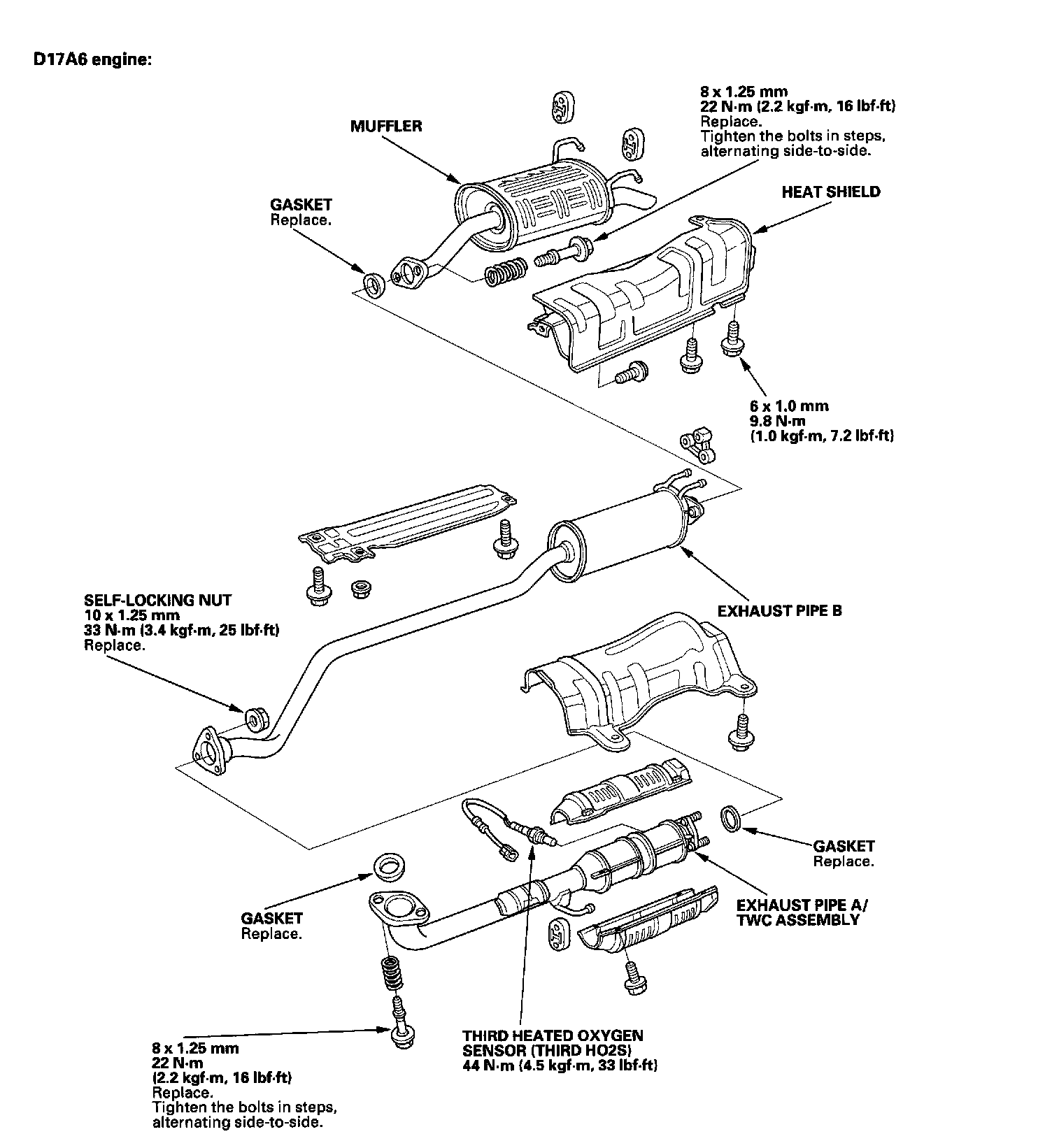

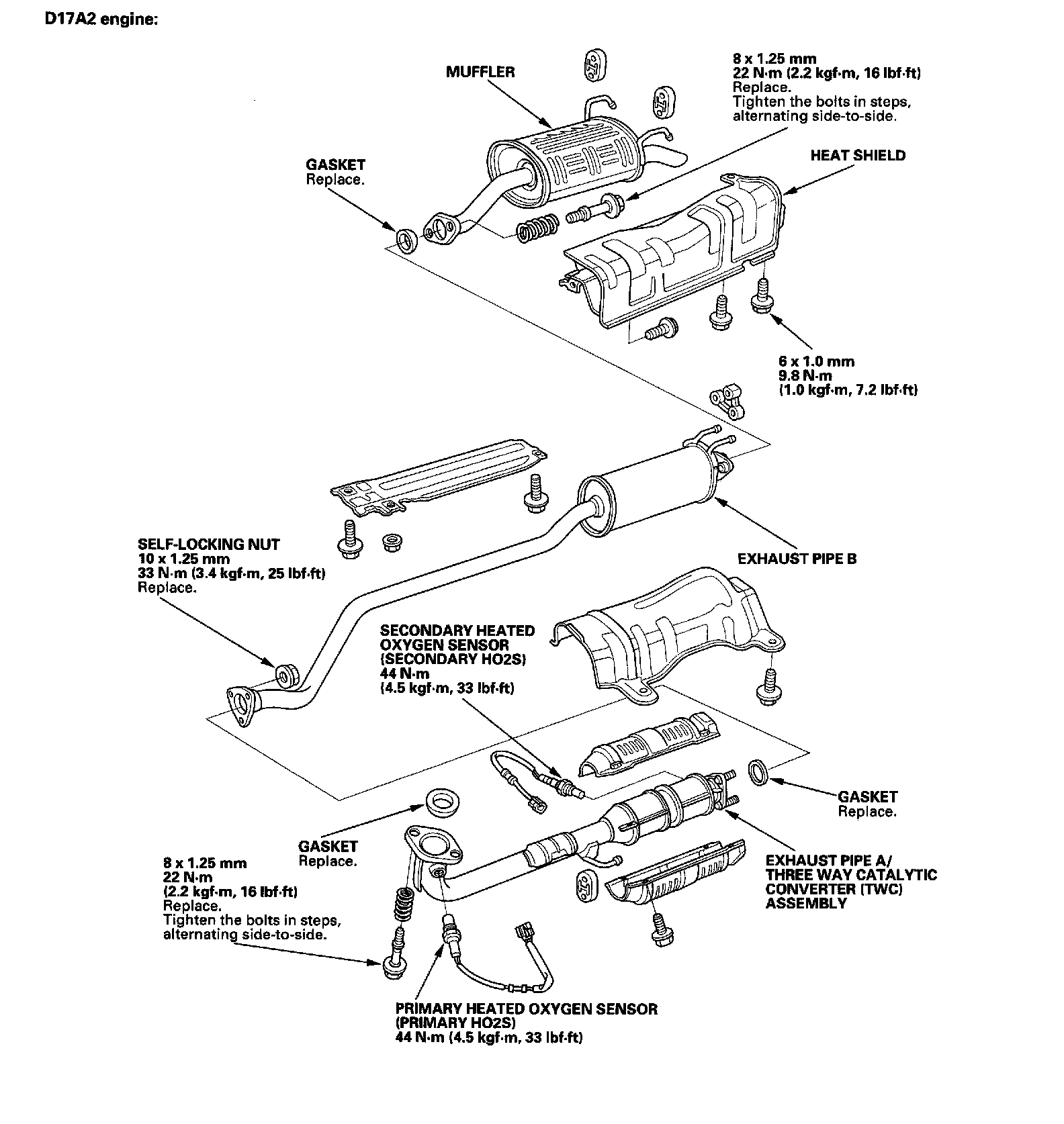

EXHAUST PIPE AND MUFFLER REPLACEMENT W/ RELATED COMPONENTS
