Power Window Switch: Locations

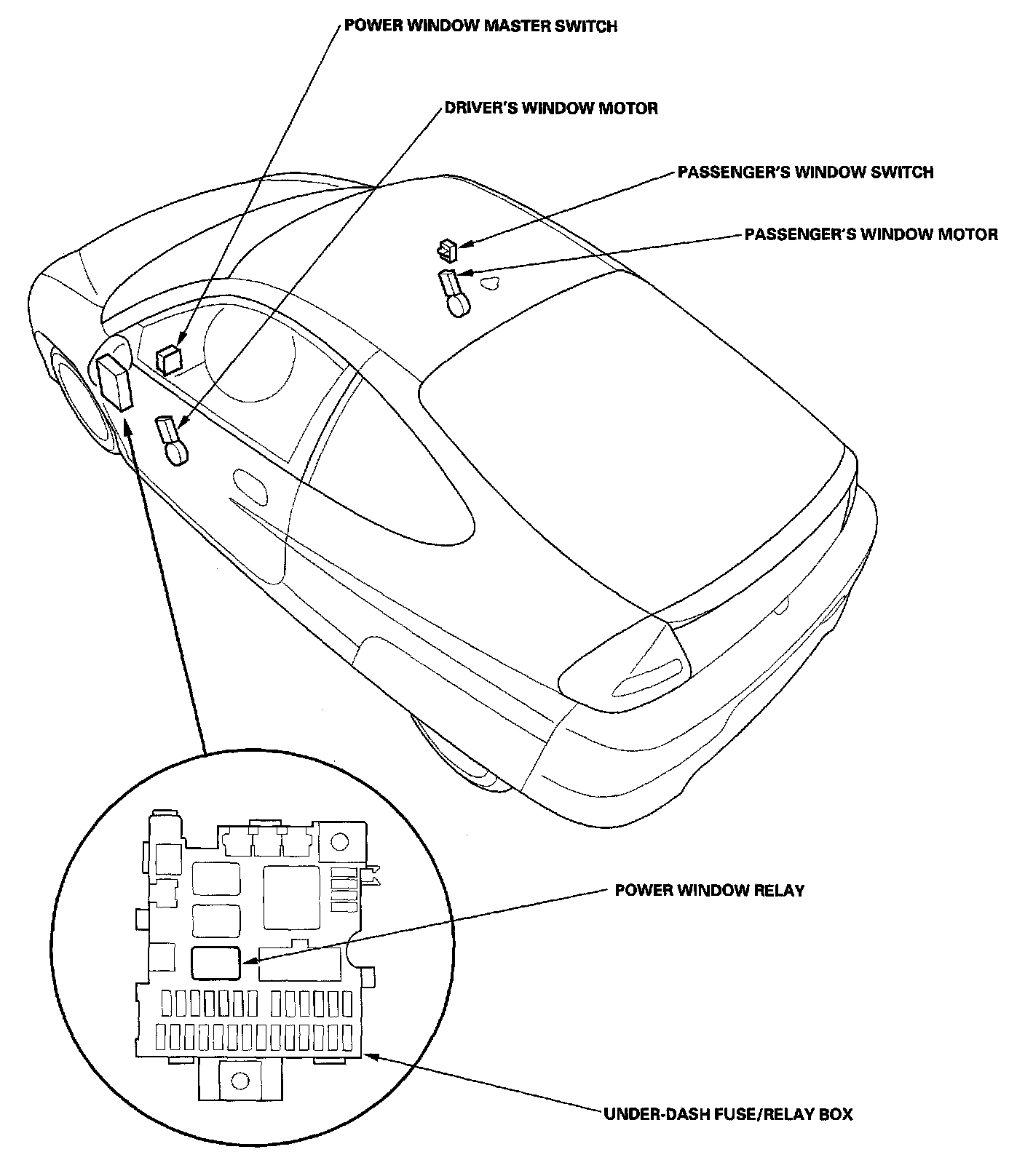

Power Windows - Component Location Index:

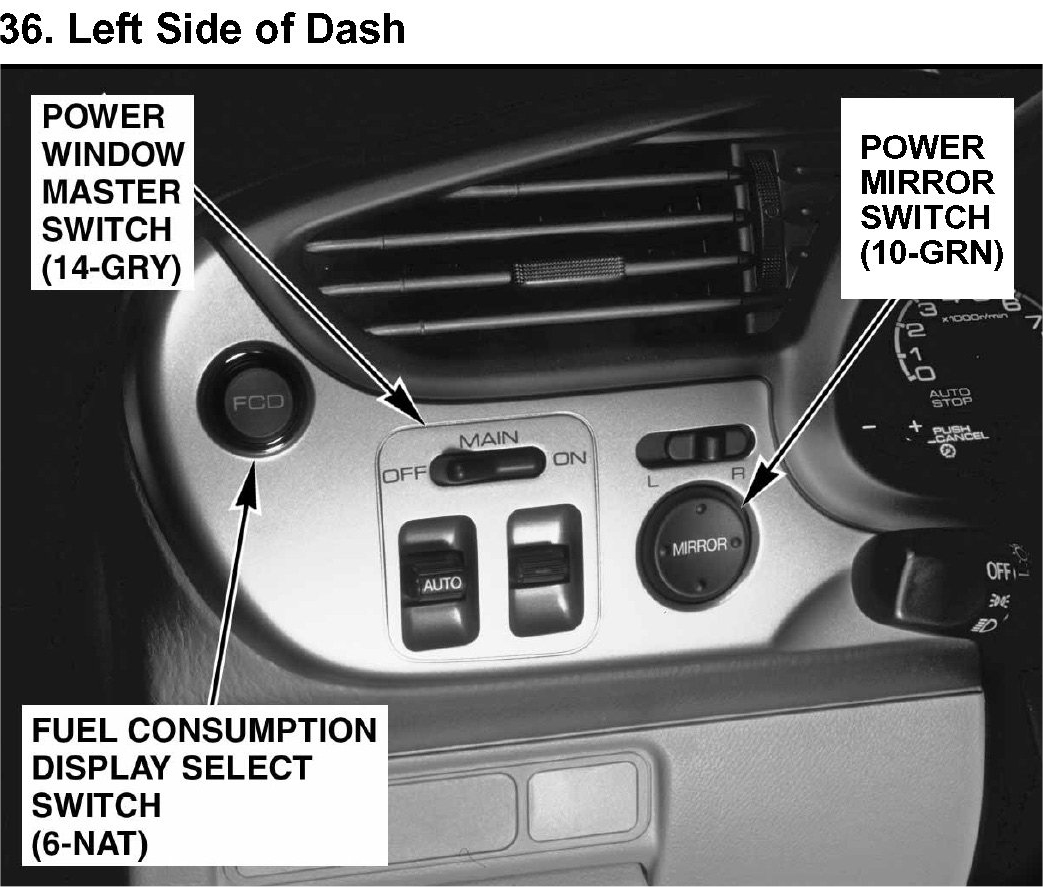

36. Left Side of Dash:

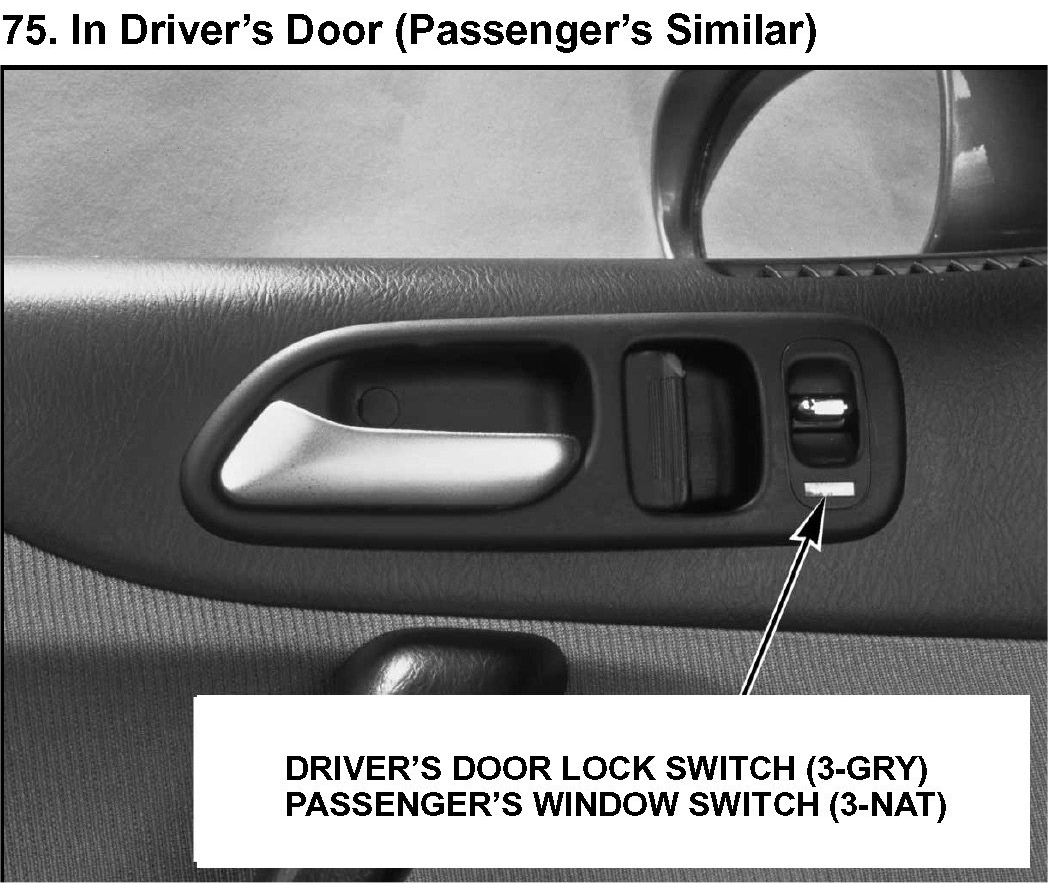

75. In Driver's Door (Passenger's Similar):

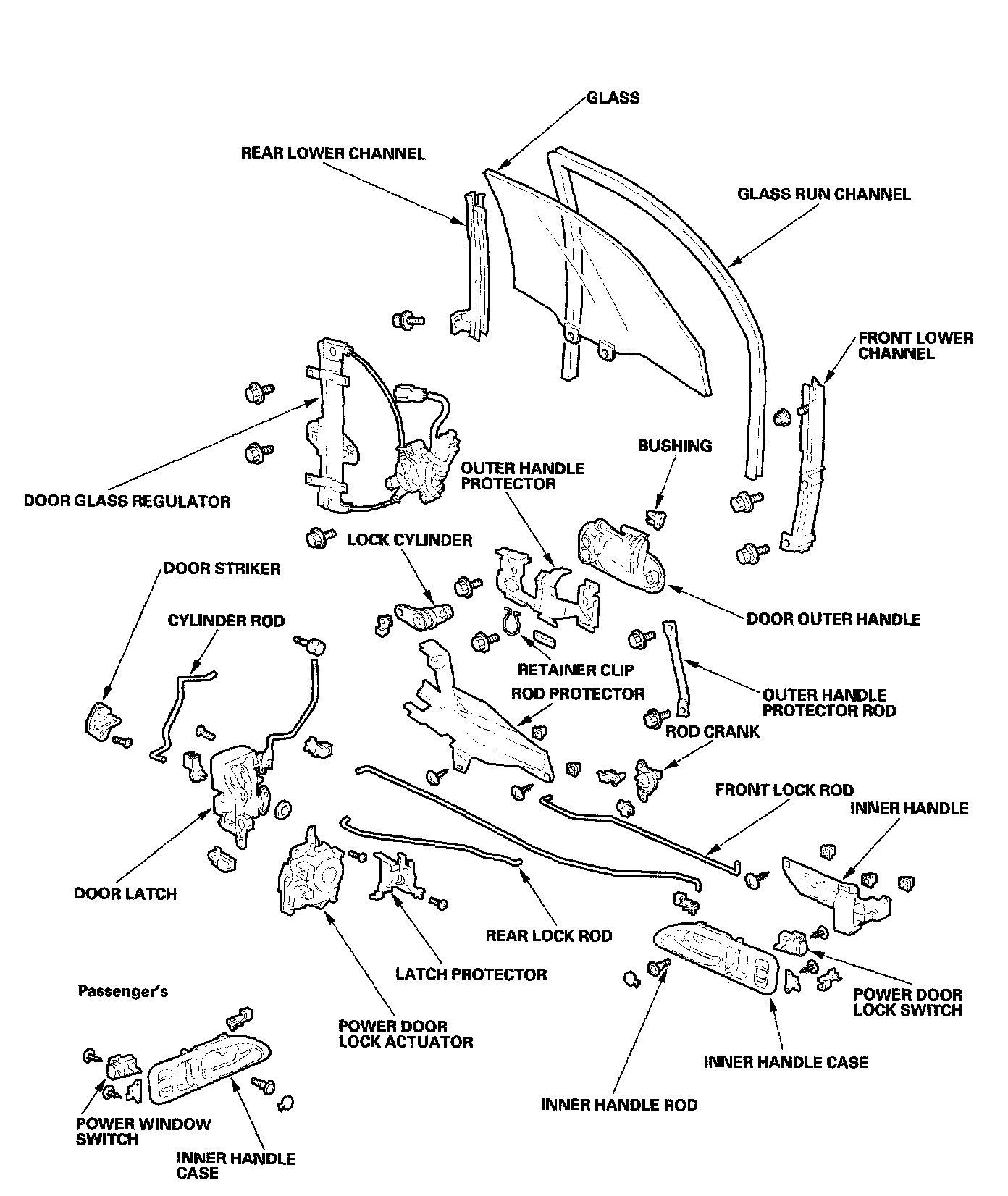

Doors - Component Location Index:
