Under-Hood Fuse/Relay Box

1. Right Side Of Engine Compartment:



Relay And Control Unit Locations - Engine Compartment:

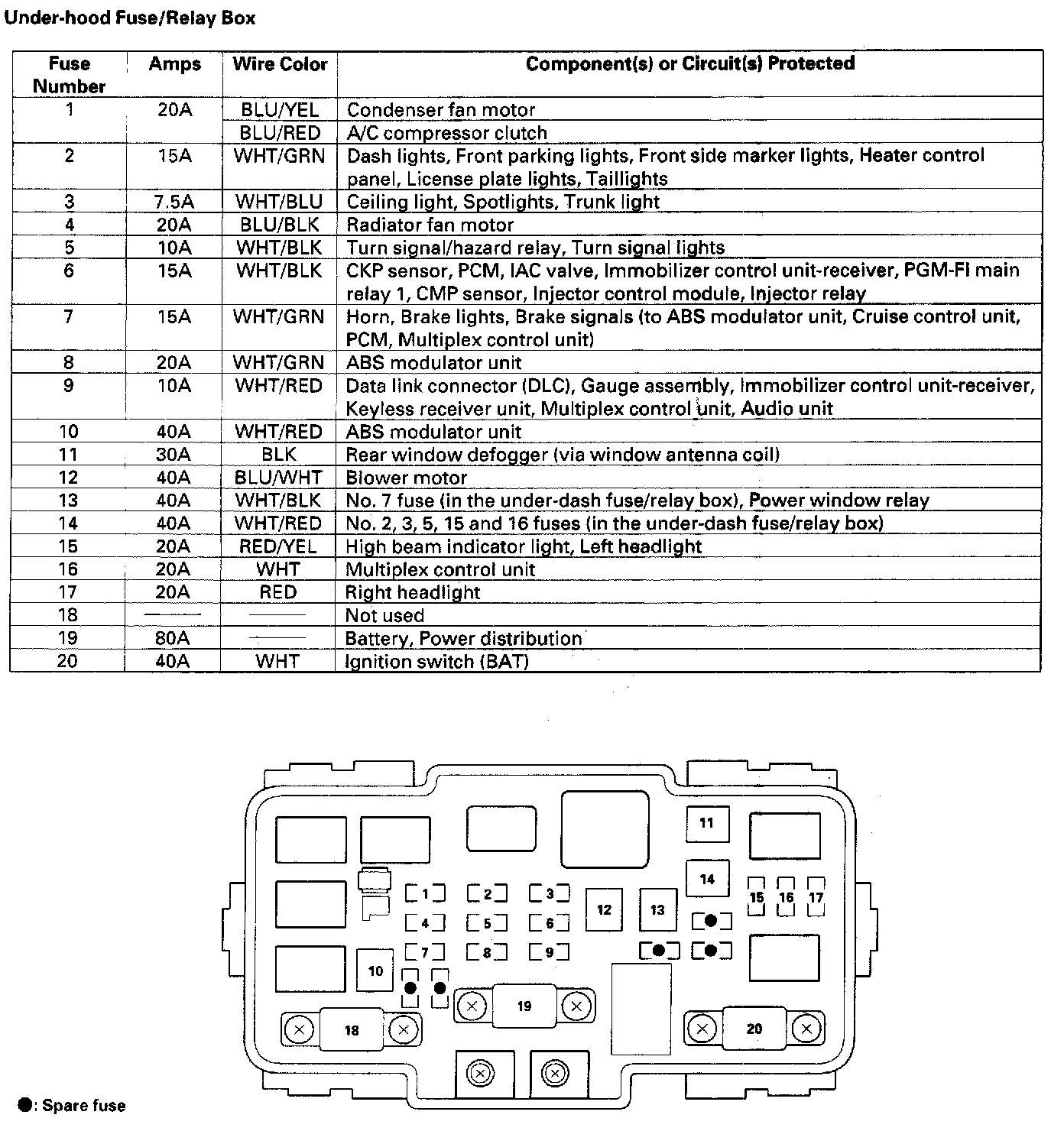

Under-hood Fuse/Relay Box:
