Home >> Honda >> 2003 >> Civic L4-1.7L CNG >> Repair and Diagnosis >> Diagrams >> Exploded Views >> Starter Motor

Starter Motor

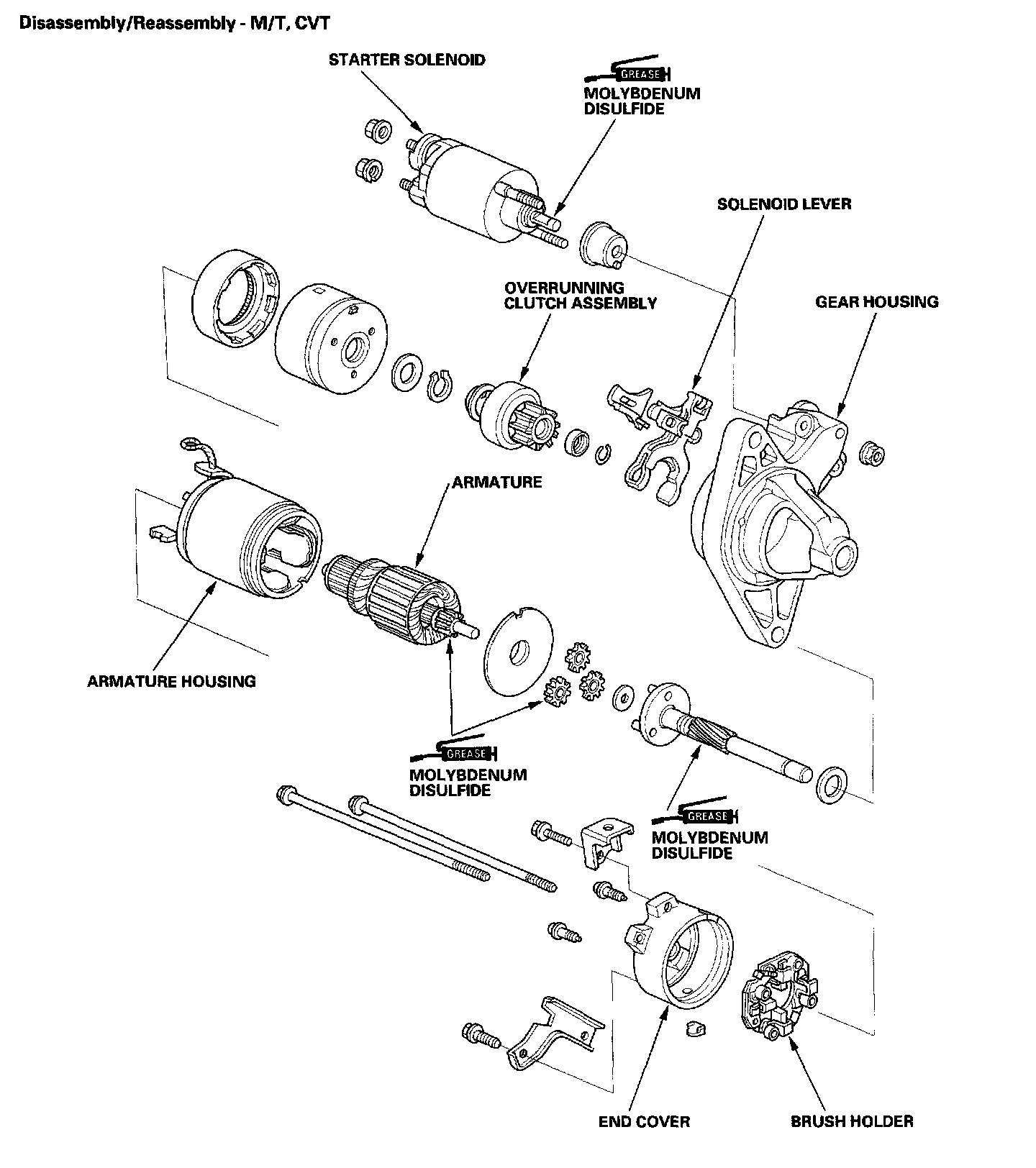

Starter Overhaul For M/T, CVT:

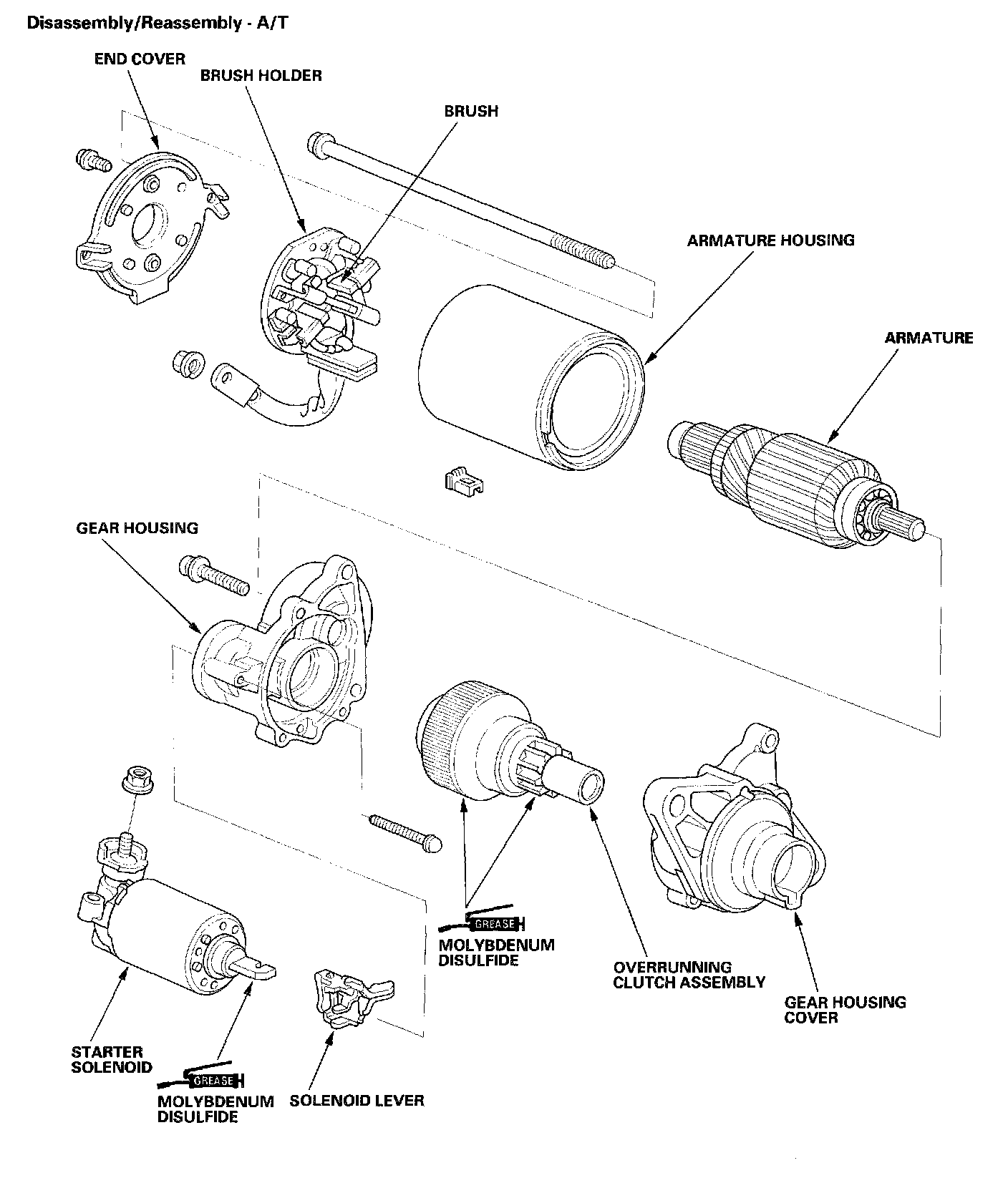

Starter Overhaul For A/T:
