Home >> Honda >> 2002 >> Accord DX Sedan L4-2254cc 2.3L SOHC MFI >> Repair and Diagnosis >> Powertrain Management >> Computers and Control Systems >> Testing and Inspection >> Scan Tool Testing and Procedures >> Normal Scan Data Values

Normal Scan Data Values

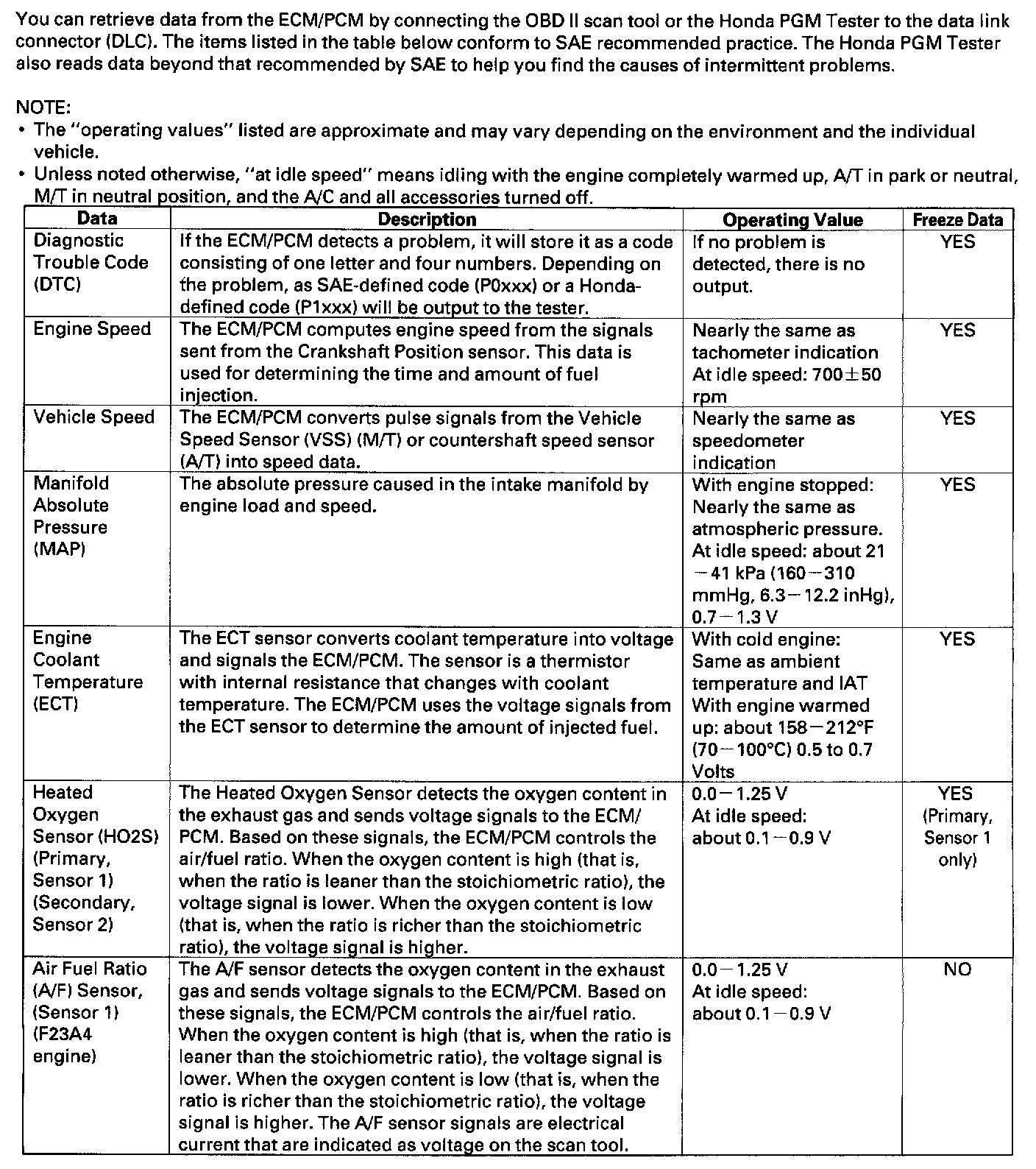

ECM/PCM Data Part 1:

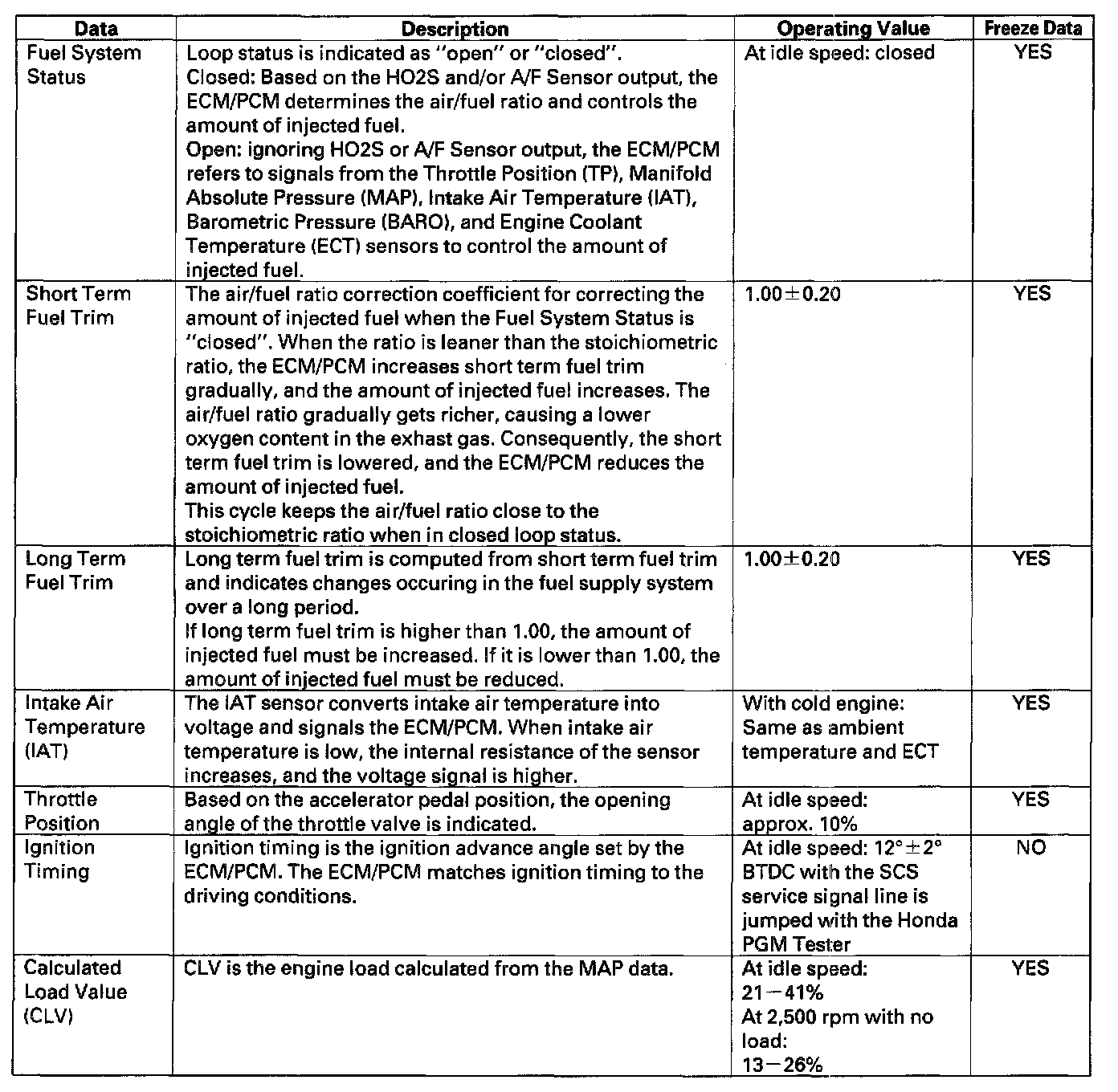

ECM/PCM Data Part 2:
