Home >> Honda >> 2000 >> Insight L3-1.0L Hybrid >> Repair and Diagnosis >> Windows and Glass >> Windows >> Power Window Switch >> Locations

Power Window Switch: Locations

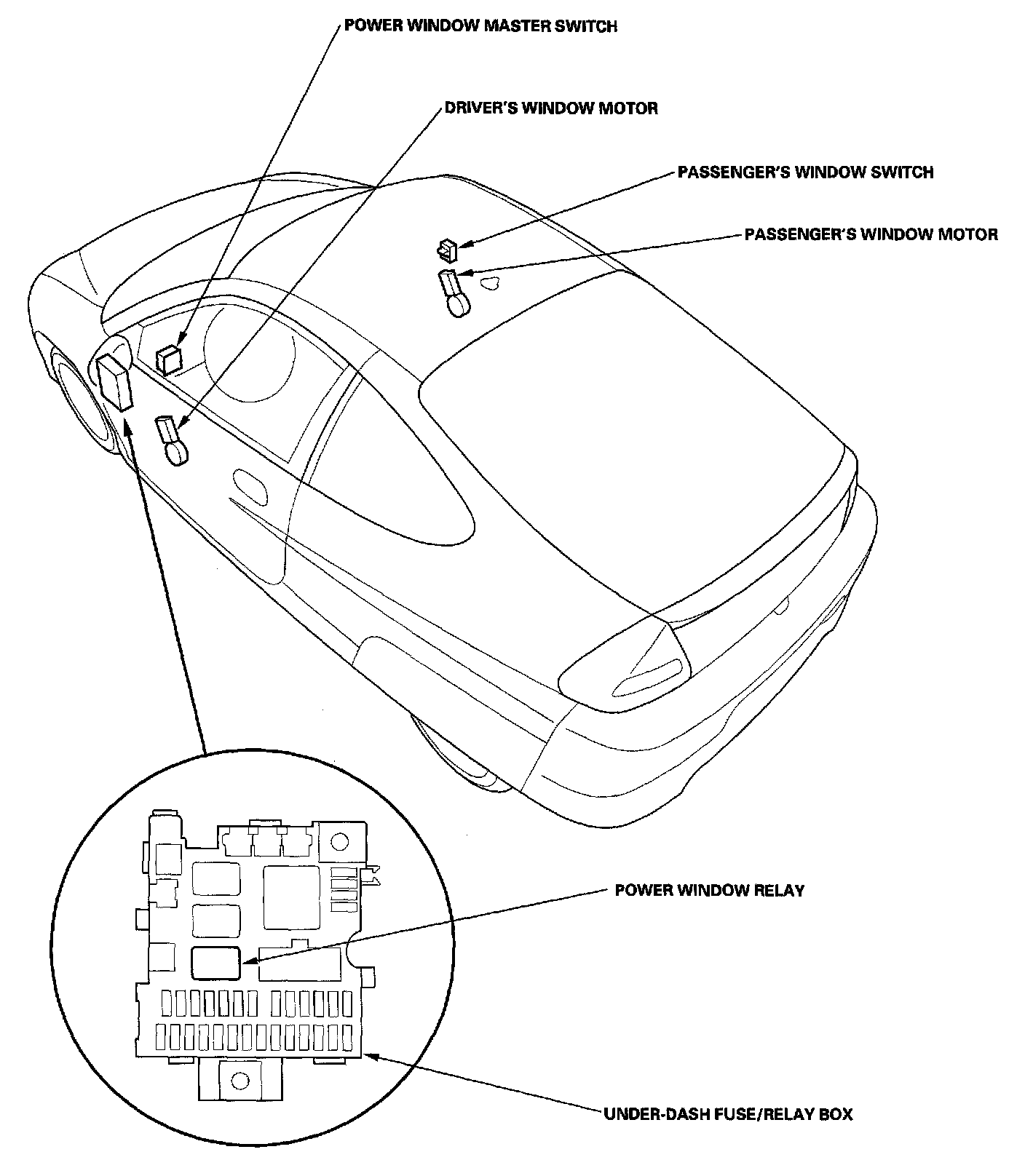

Power Windows - Component Location Index:

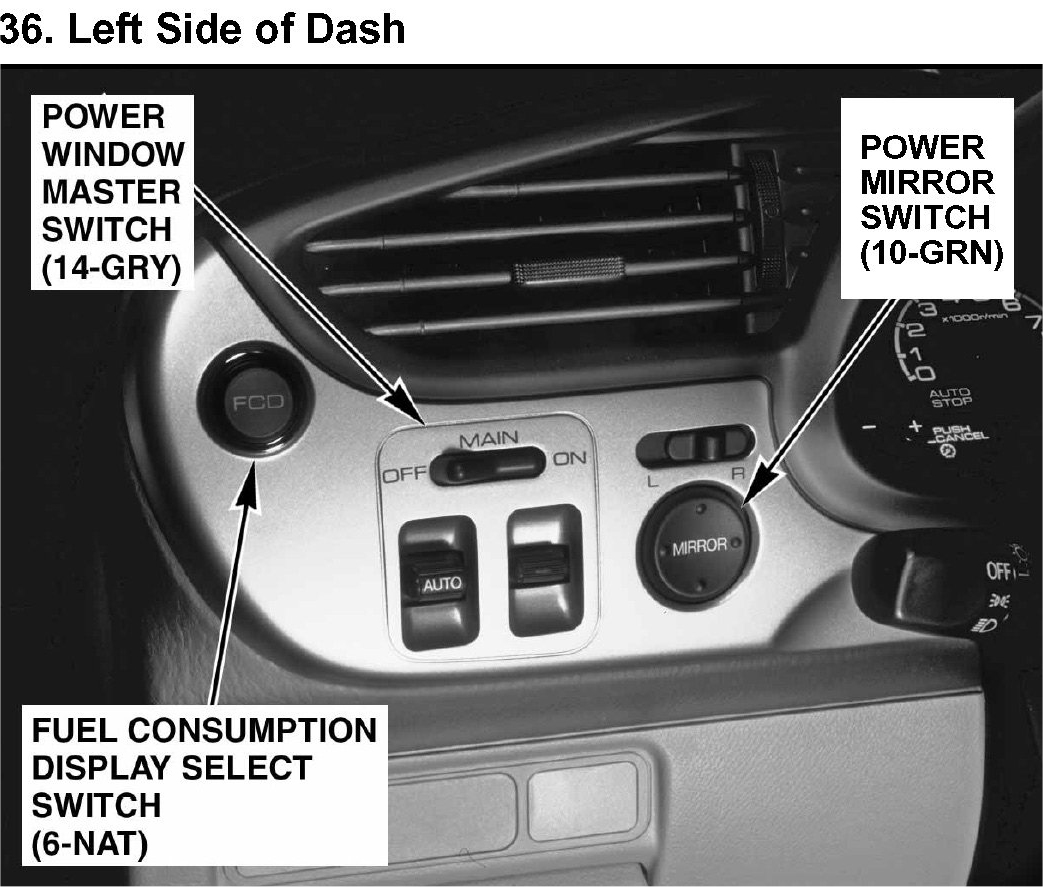

36. Left Side of Dash:

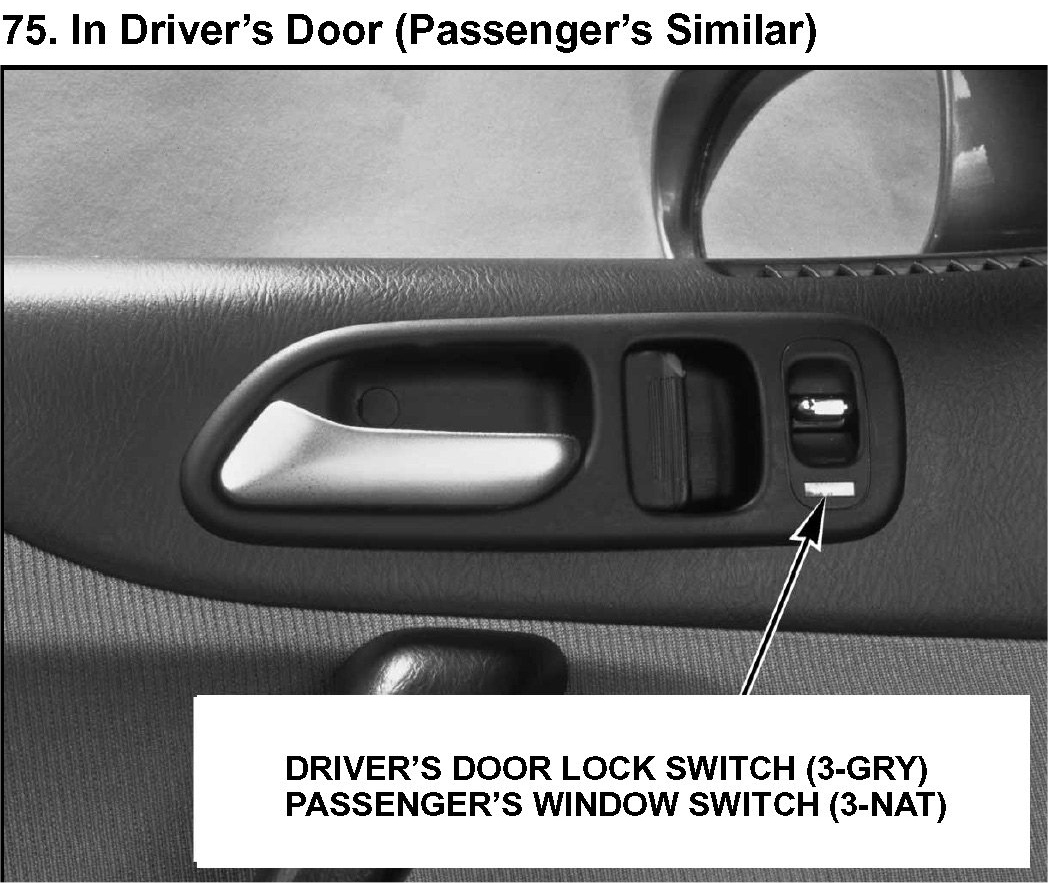

75. In Driver's Door (Passenger's Similar):

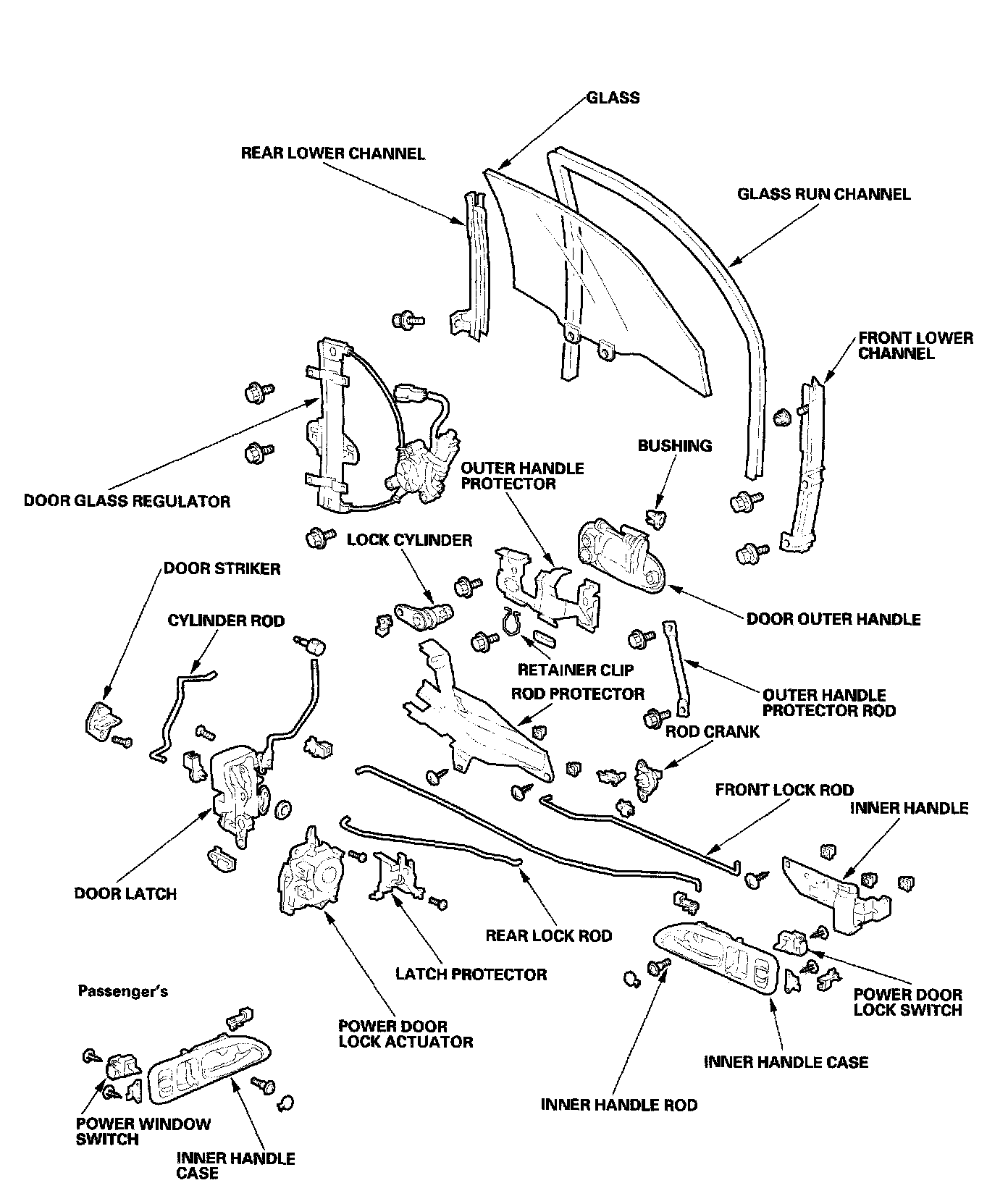

Doors - Component Location Index:
