Home >> Honda >> 2000 >> Insight L3-1.0L Hybrid >> Repair and Diagnosis >> Specifications >> Mechanical Specifications >> Manual Transmission/Transaxle >> System Specifications >> Standards and Service Limits

Standards and Service Limits

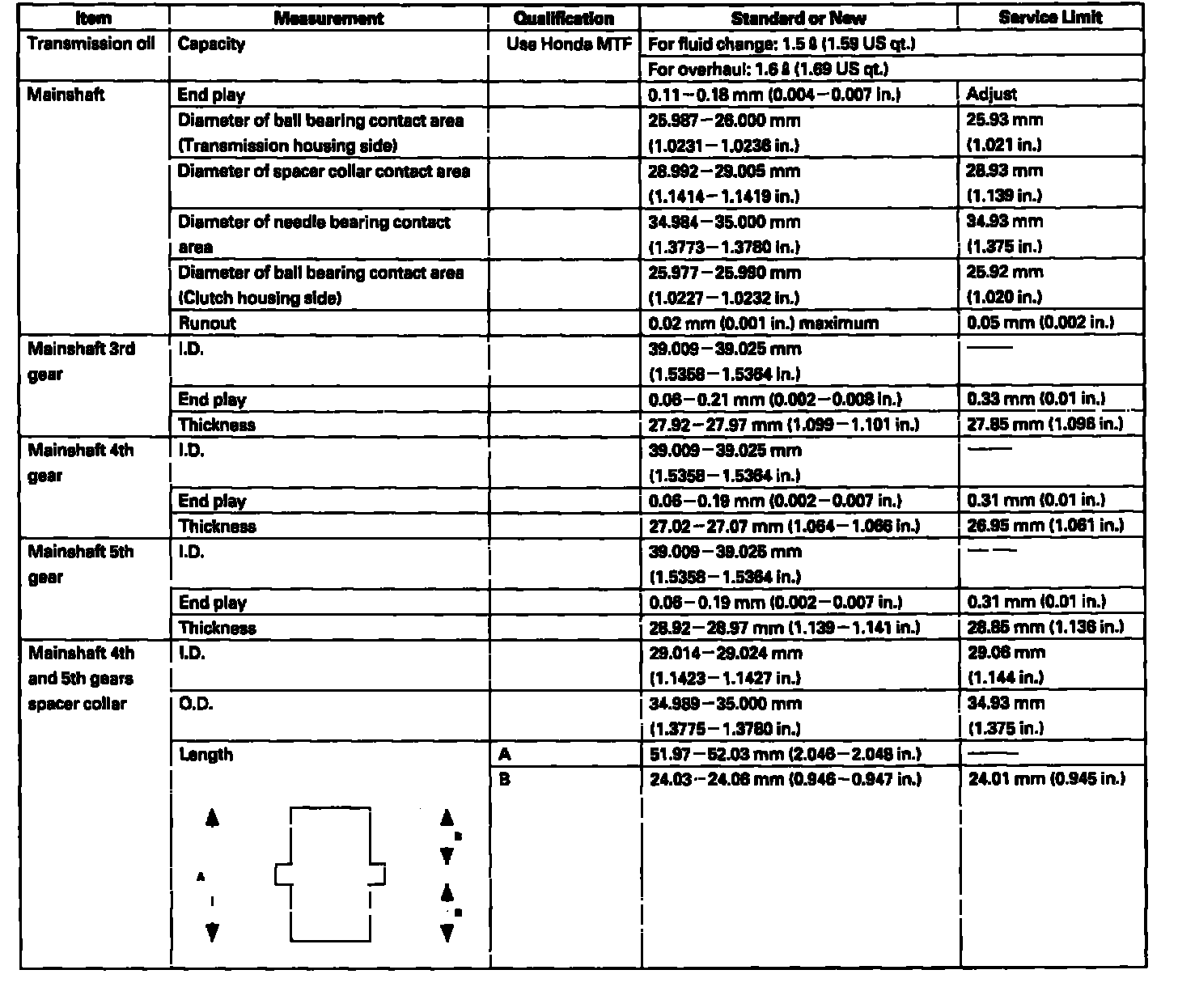

Part 1 Of 3:

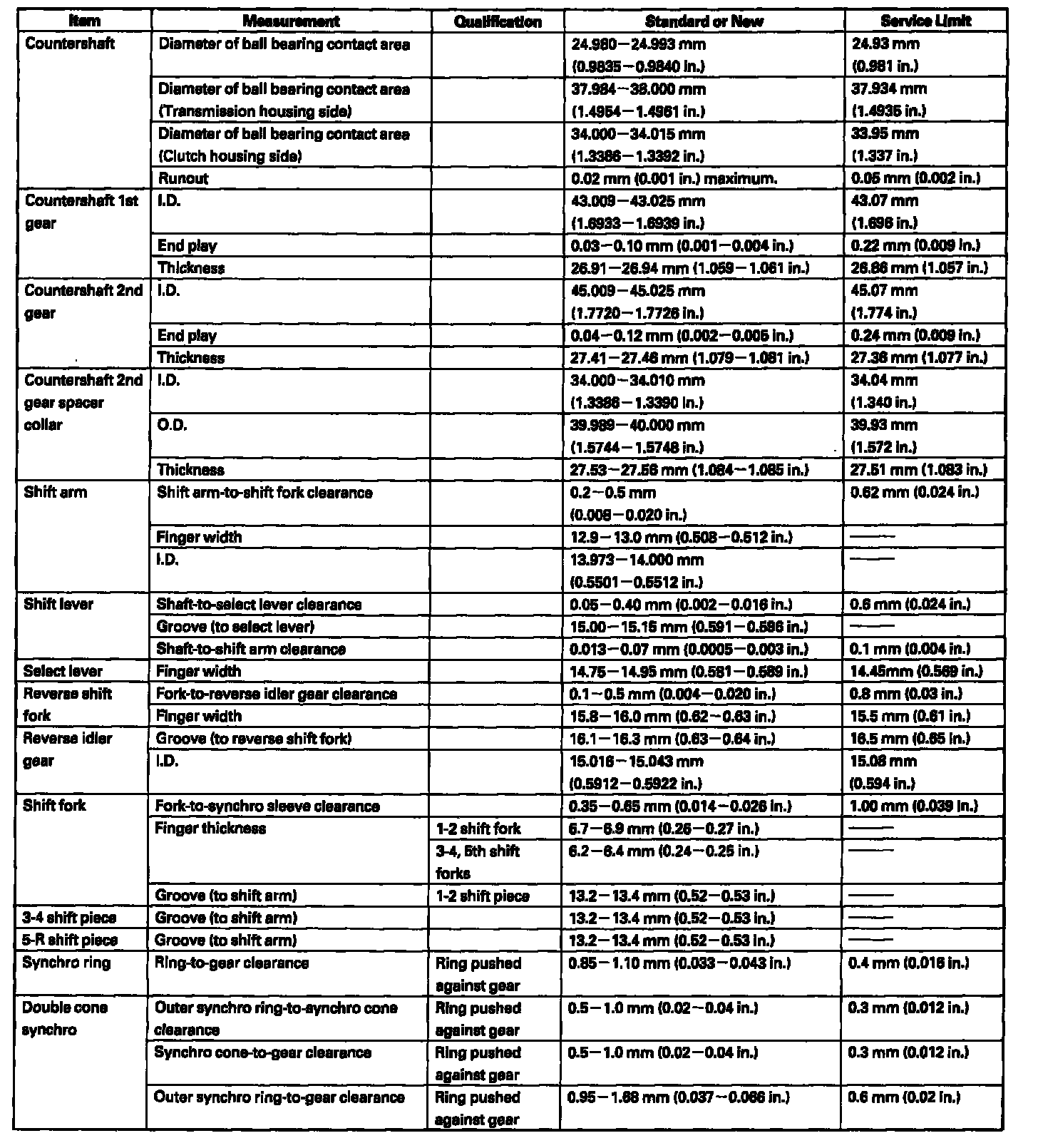

Part 2 Of 3:




Part 3 Of 3:





MANUAL TRANSMISSION AND M/T DIFFERENTIAL
