Home >> Honda >> 2000 >> Insight L3-1.0L Hybrid >> Repair and Diagnosis >> Powertrain Management >> Computers and Control Systems >> Coolant Temperature Sensor/Switch (For Computer) >> Locations

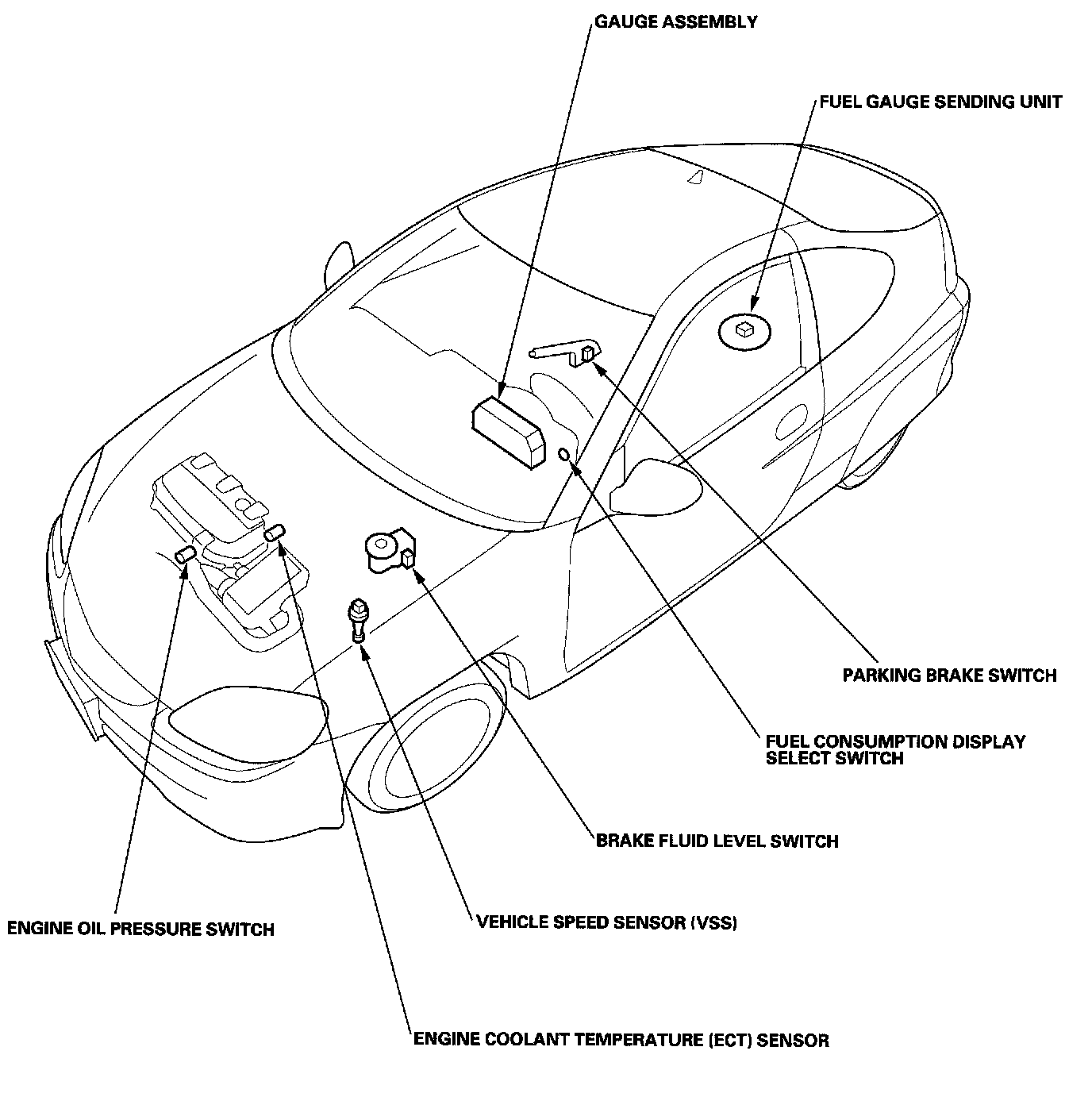

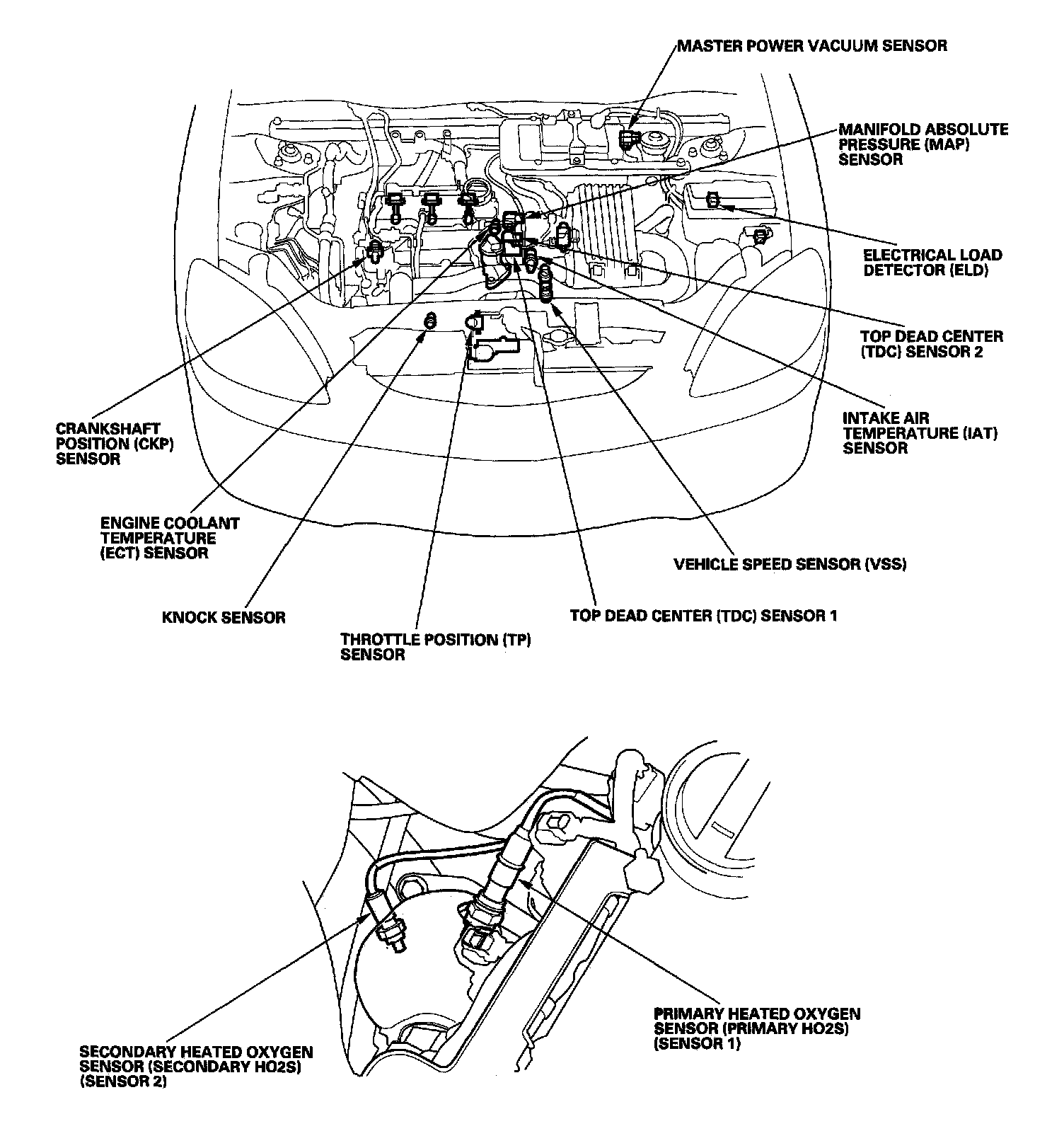

Coolant Temperature Sensor/Switch (For Computer): Locations

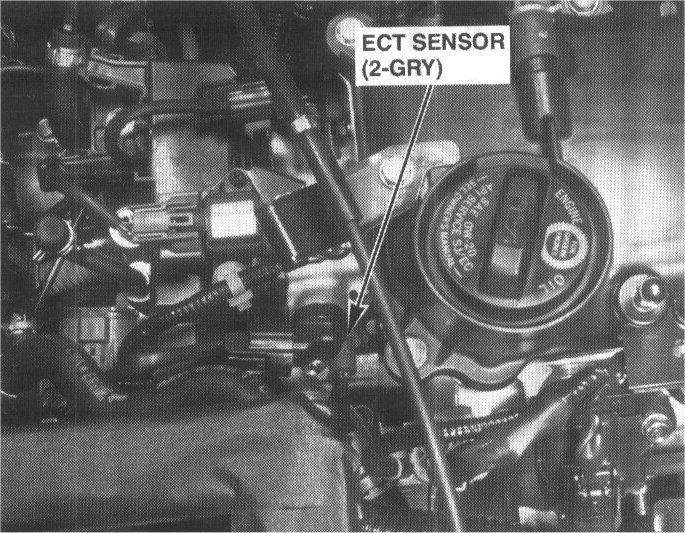

17. Rear of Engine:



Part 1 Of 2:
