Locations
>>
Splice Locations
>>
Circuit 331
Circuit 331

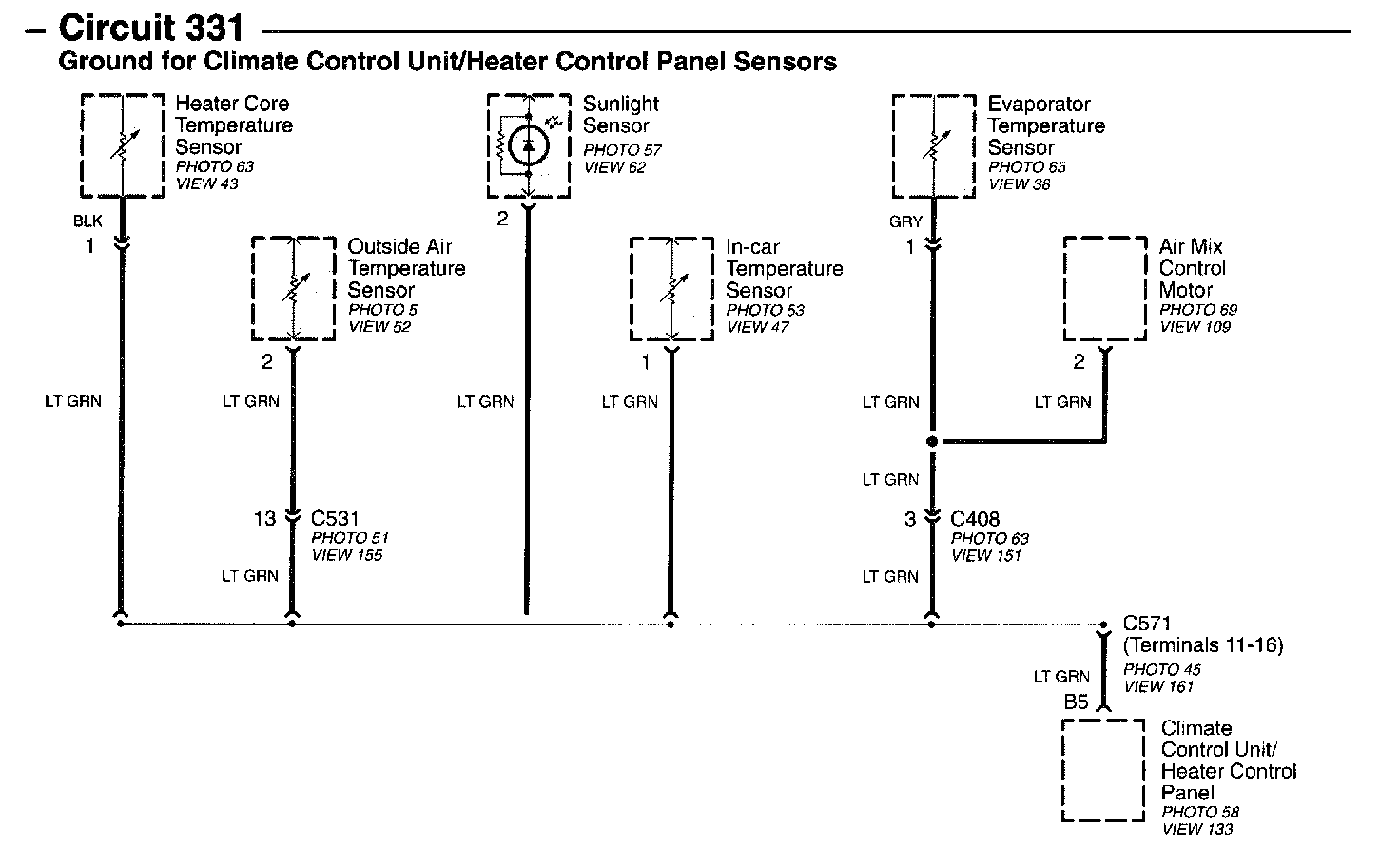

Circuit 331 - Ground For Climate Control Unit/Heater Control Panel Sensors Image 15-2b:
