Home >> Honda >> 1997 >> Accord EX Sedan V6-2706cc 2.7L SOHC MFI >> Repair and Diagnosis >> Powertrain Management >> Computers and Control Systems >> Engine Control Module >> Diagrams >> Connector Views

Connector Views

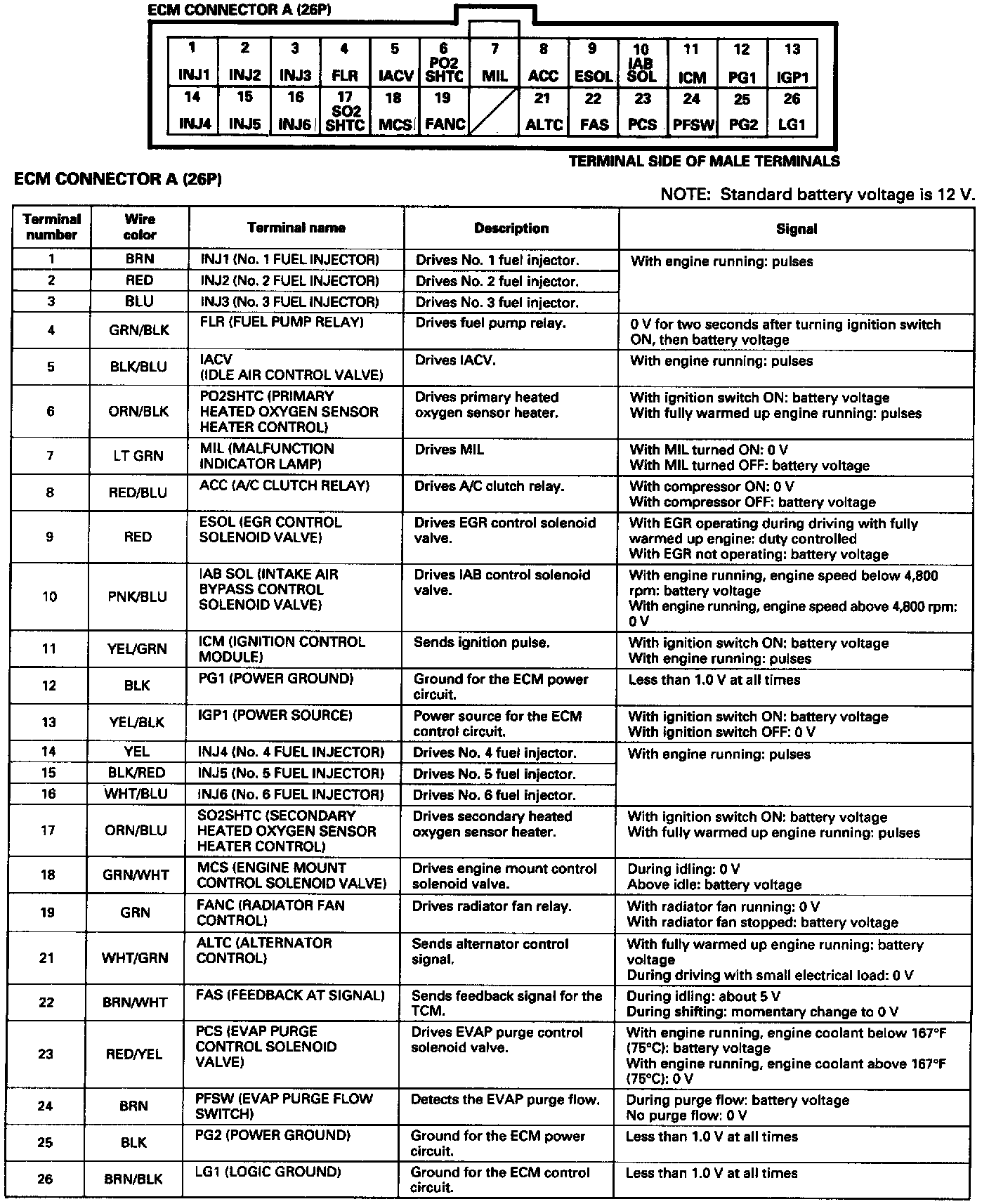

PCM CONNECTOR A (26P)

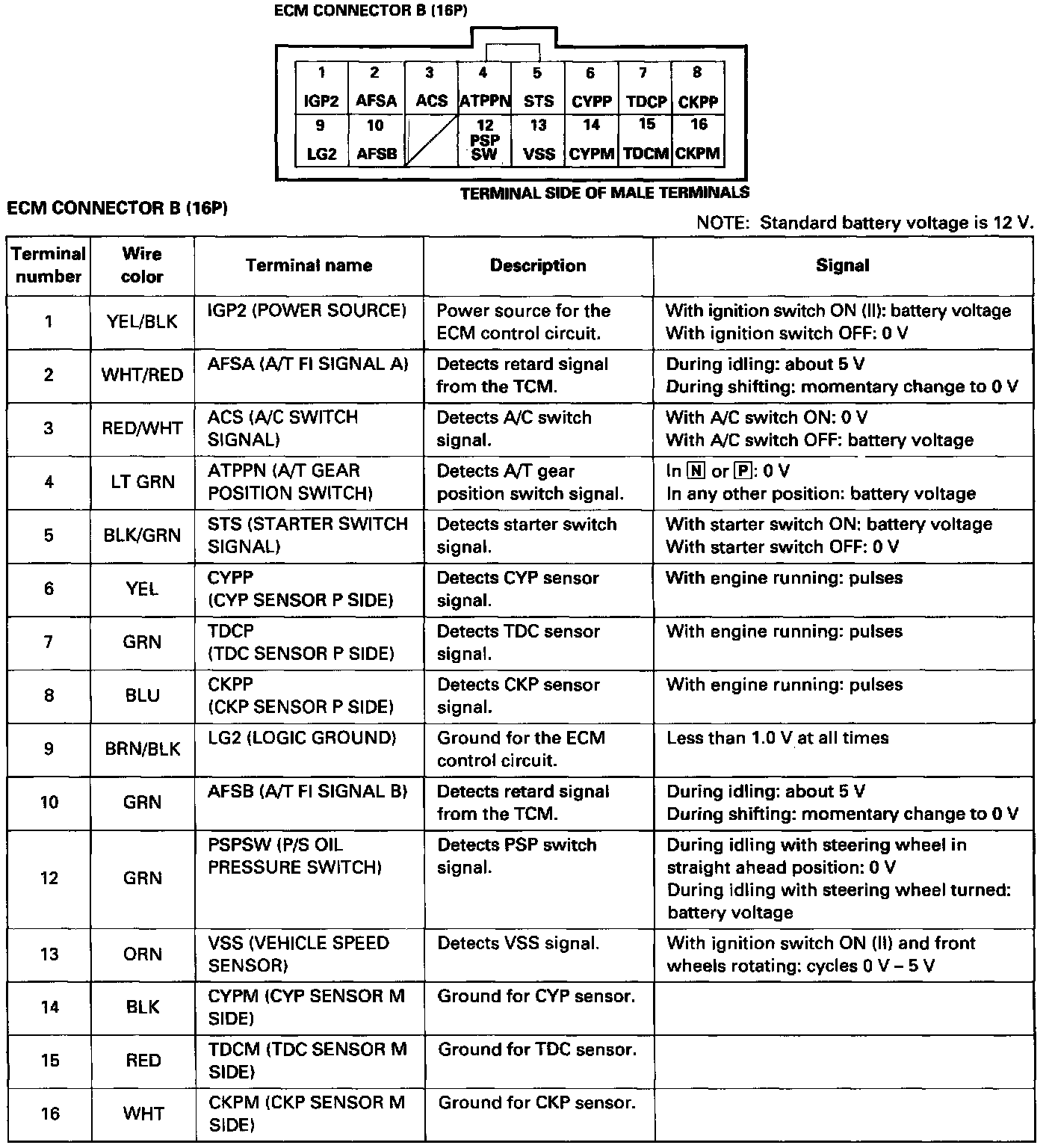

PCM CONNECTOR B (16P)

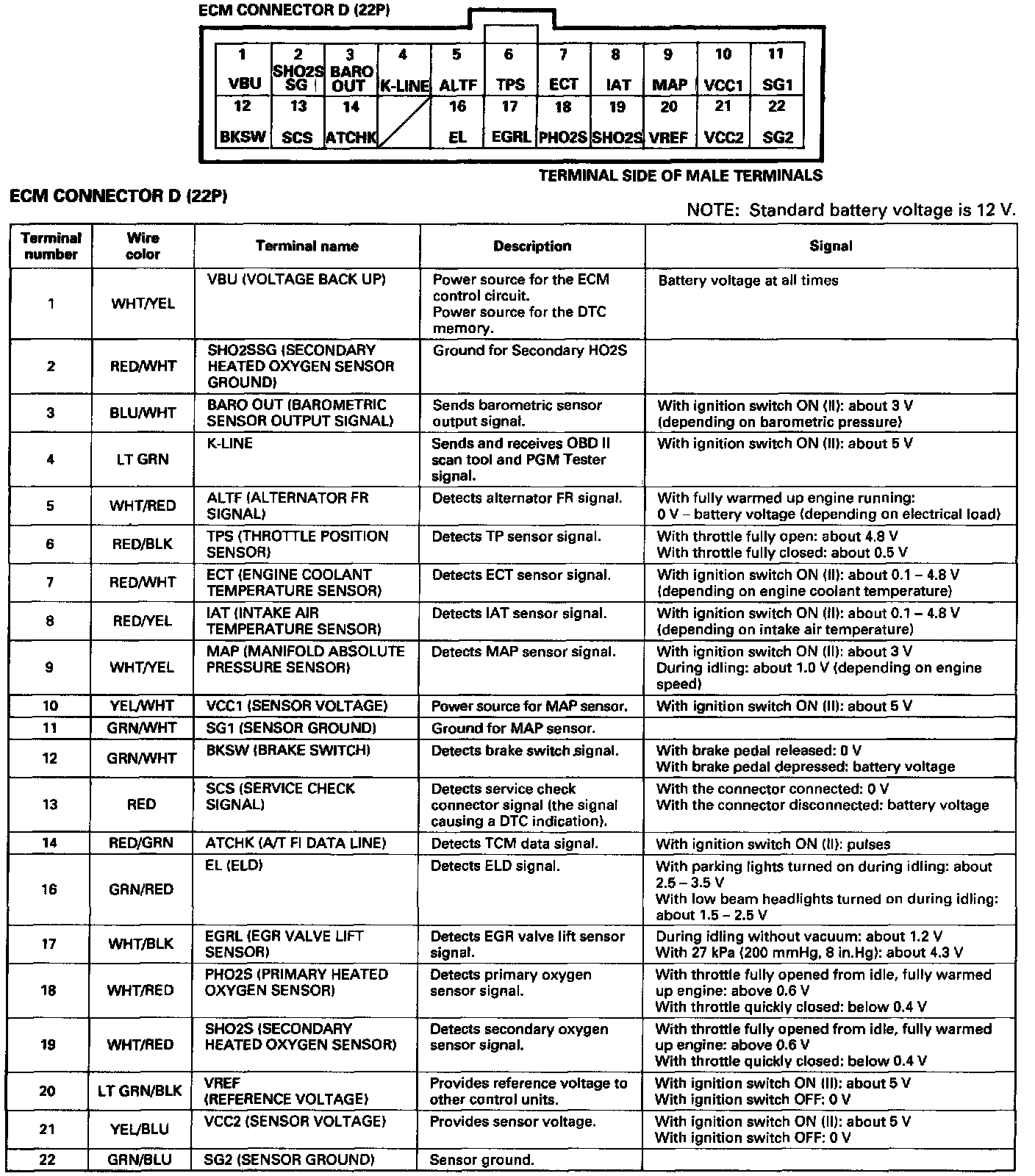

PCM CONNECTOR D (22P)
