Home >> Honda >> 1994 >> Accord L4-2.2L SOHC VTEC >> Repair and Diagnosis >> Diagrams >> Components >> Lighting System

Lighting System

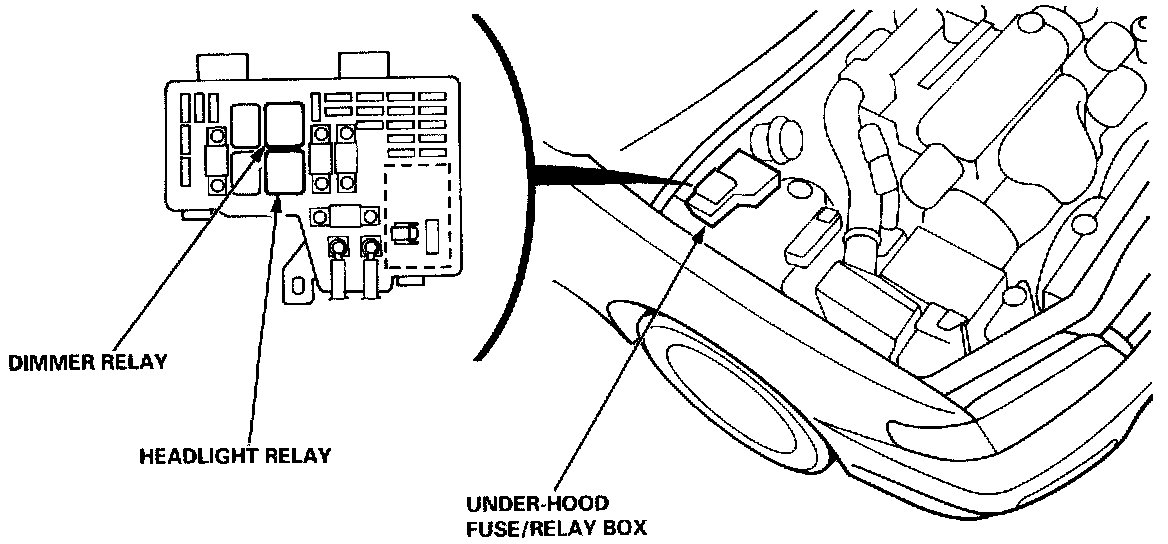

Lighting System (Component Location Index):

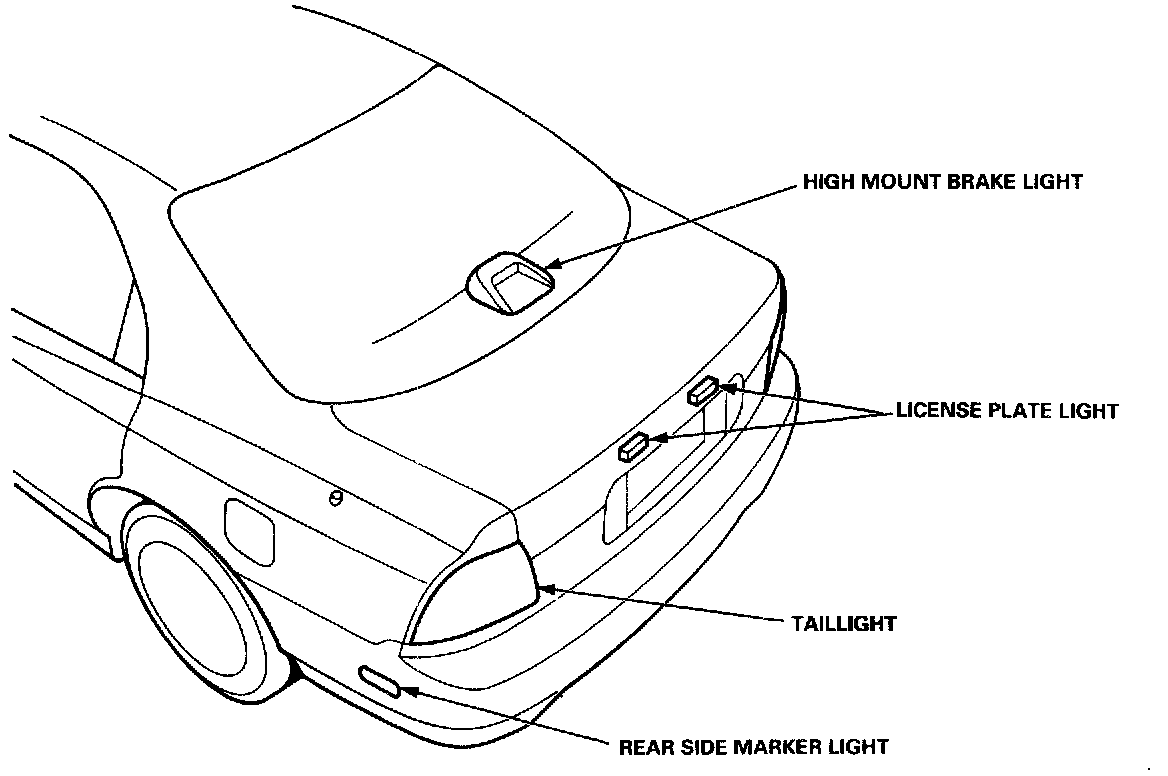

Lighting System (Component Location Index):

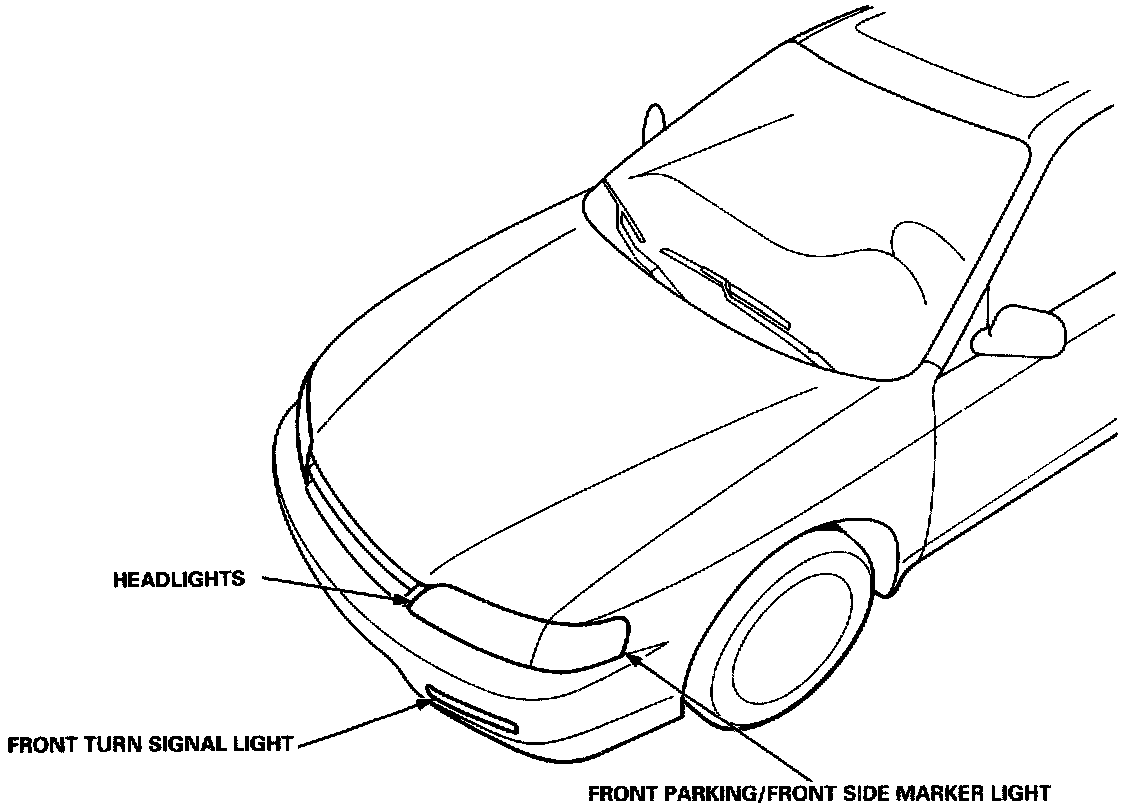

Lighting System (Component Location Index):

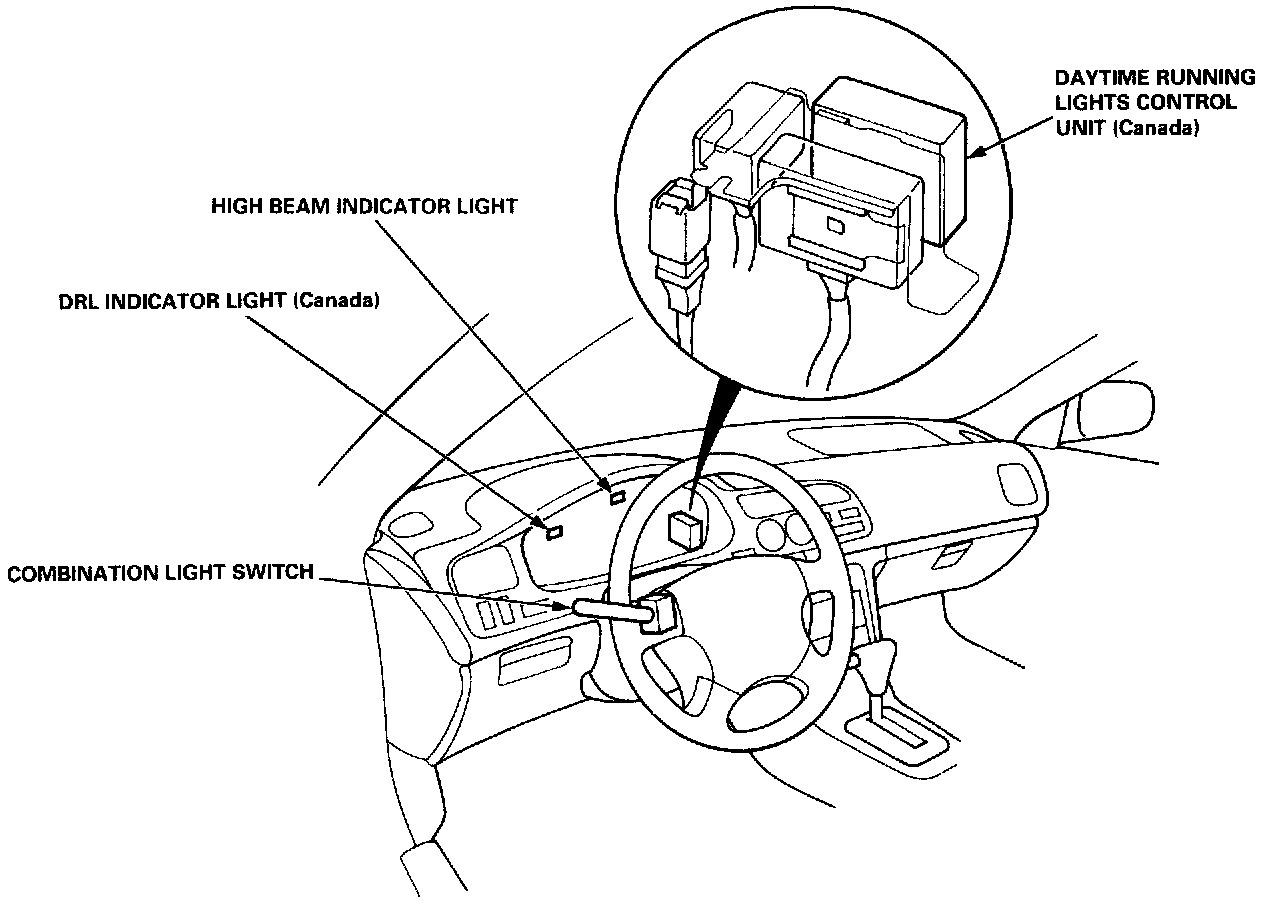

Lighting System (Component Location Index):
