Computers and Control Systems: Locations

Connector Description and Wire Location

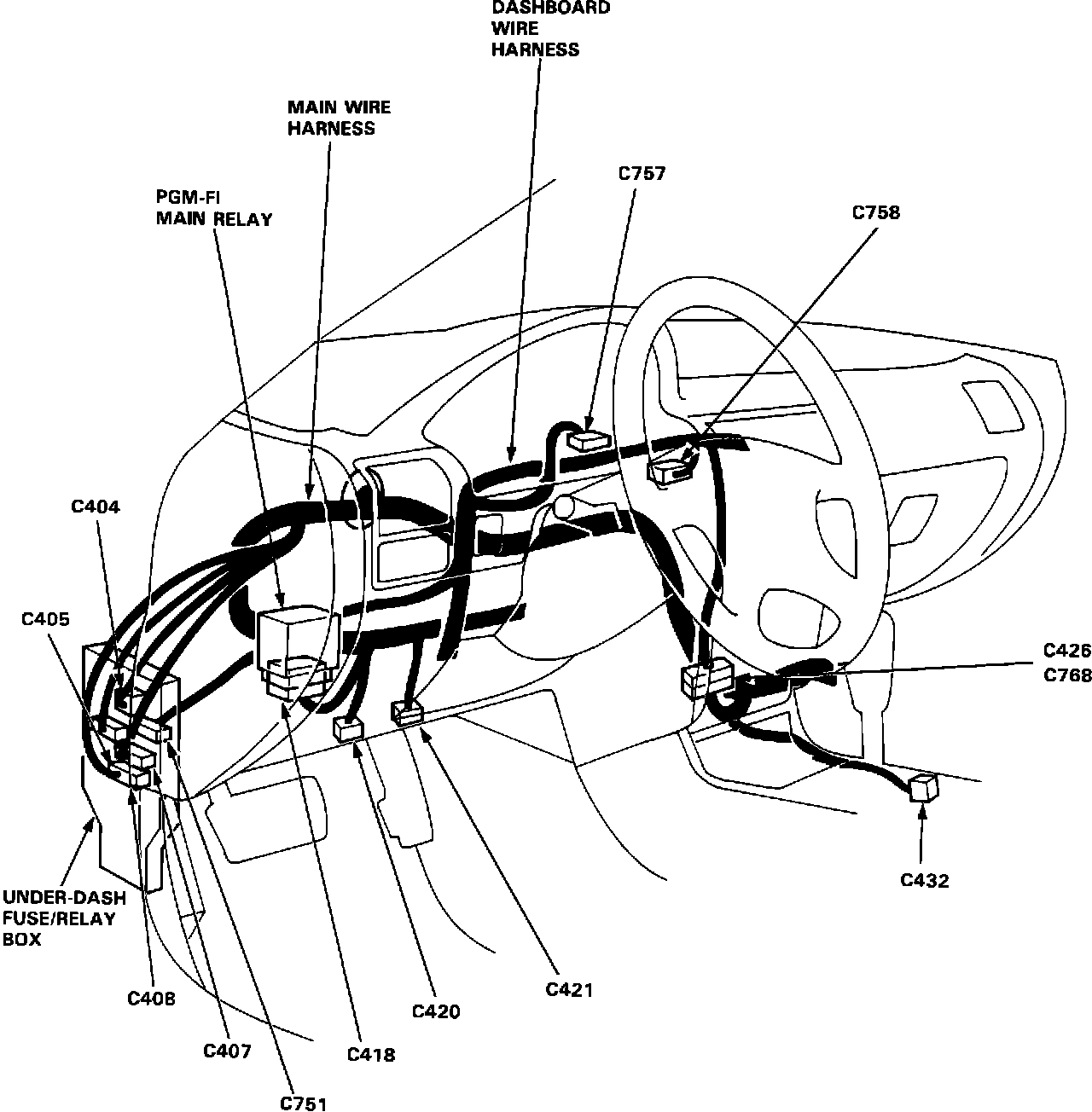

Harness Routing and Connector Locations

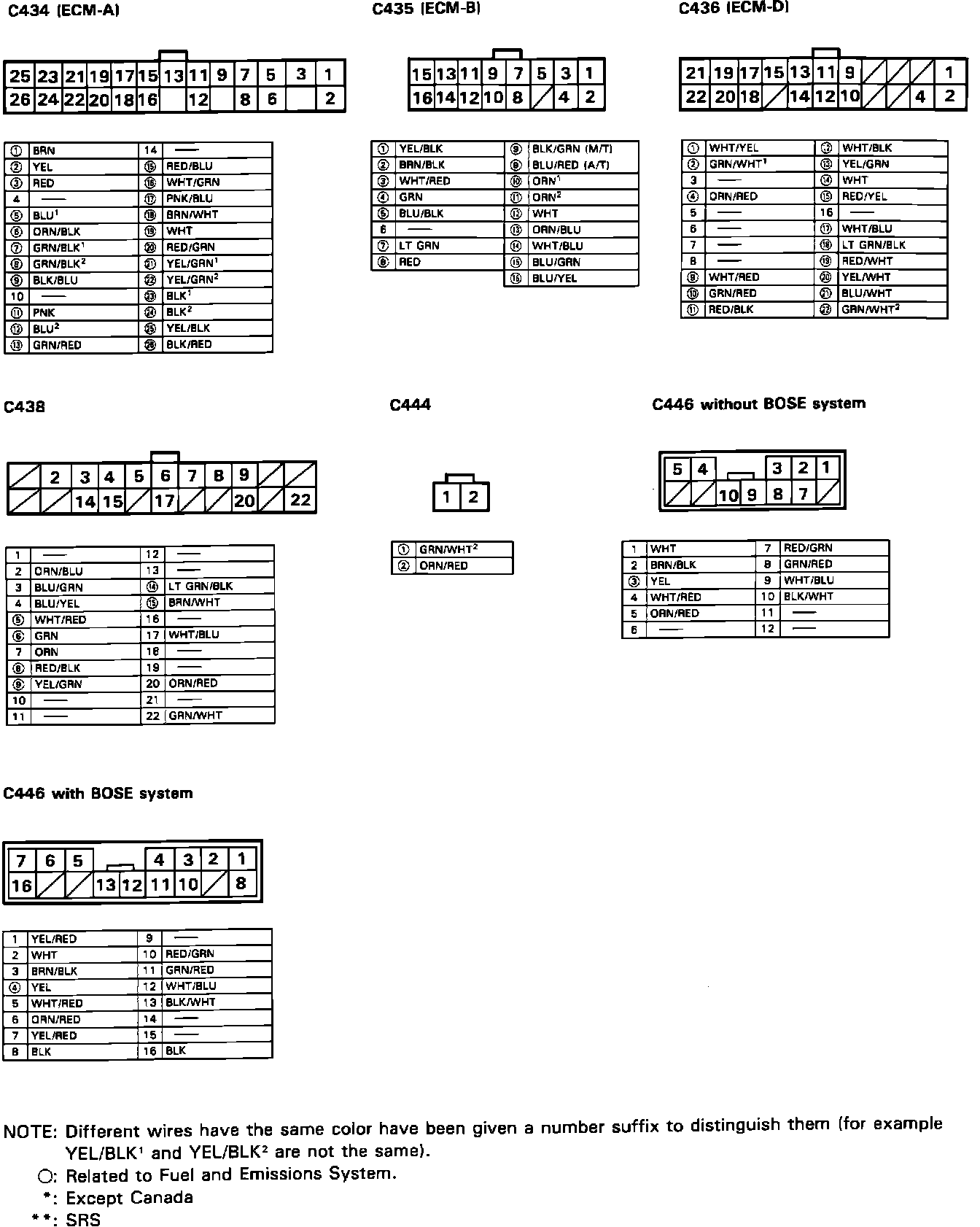

Electrical Pin Connector Numbers
