Home >> Honda >> 1992 >> Prelude L4-2.3L DOHC >> Repair and Diagnosis >> Locations >> Ground Locations >> Views >> Engine Ground

Engine Ground

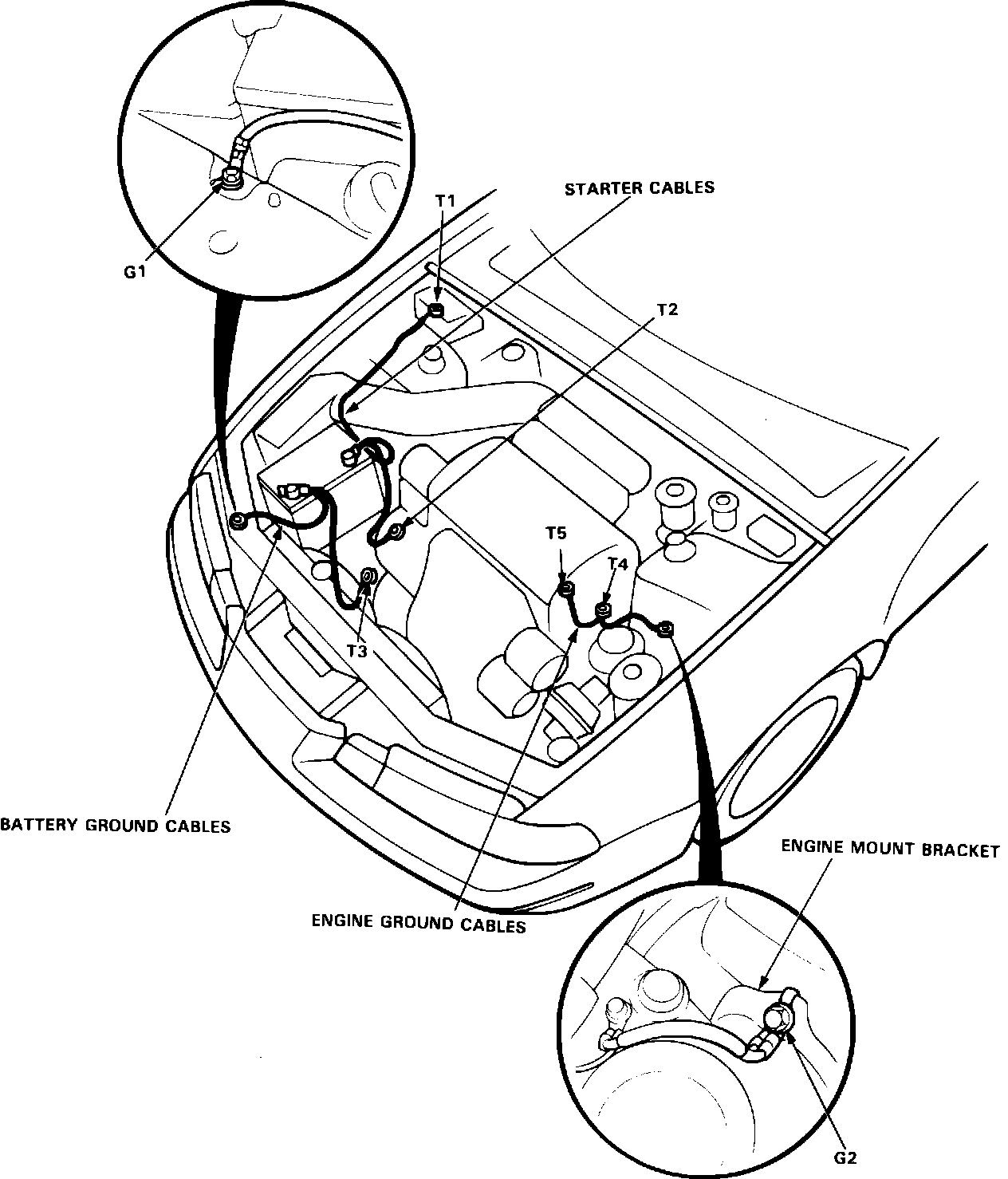

Starter Cables, Battery Ground Cables, And Engine Ground Cables:

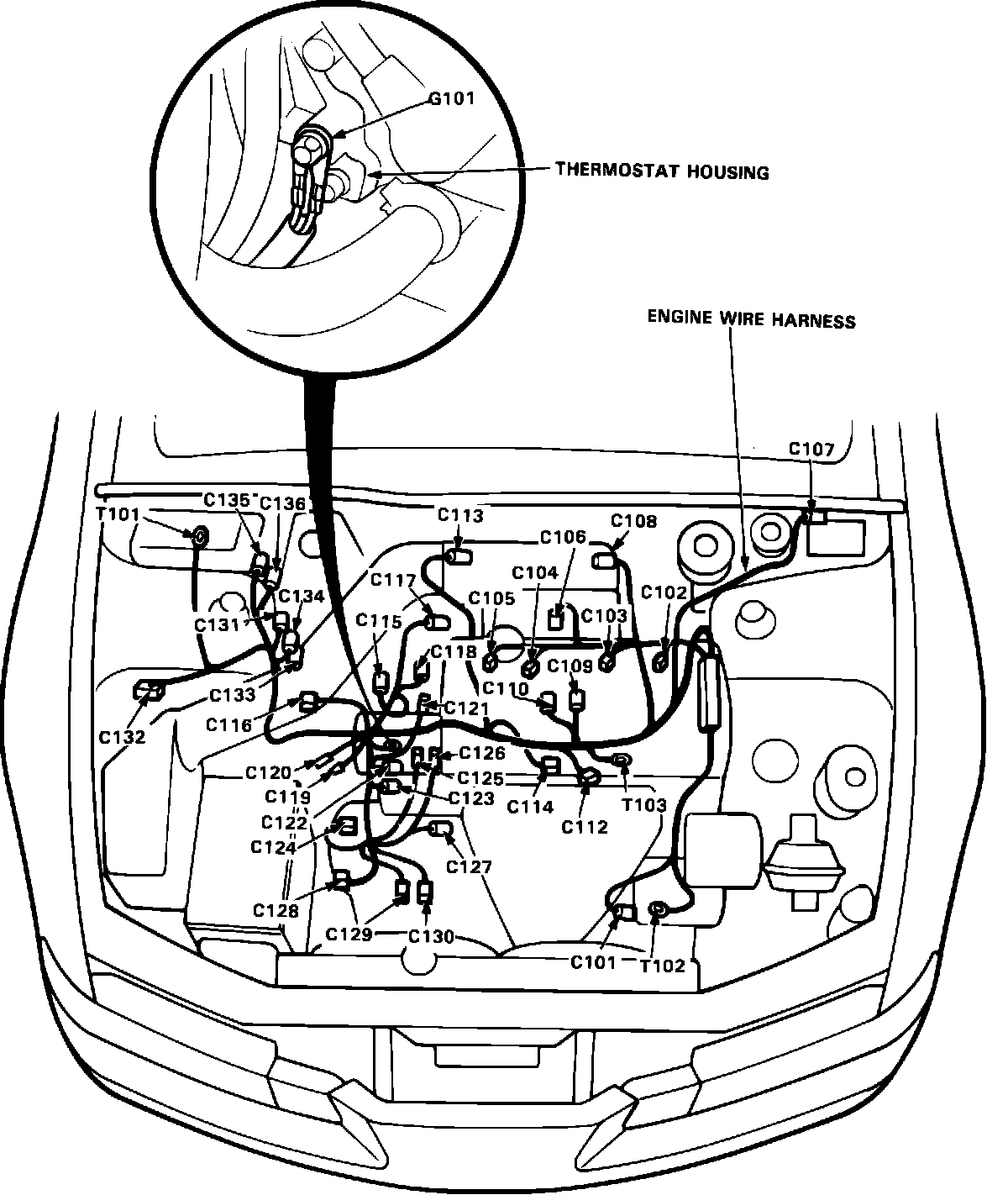

Engine Wire Harness - 2.3L Engine:
