Home >> Honda >> 1992 >> Prelude L4-2.3L DOHC >> Repair and Diagnosis >> Heating and Air Conditioning >> Control Module HVAC >> Testing and Inspection

Control Module HVAC: Testing and Inspection

Blower Motor Speed

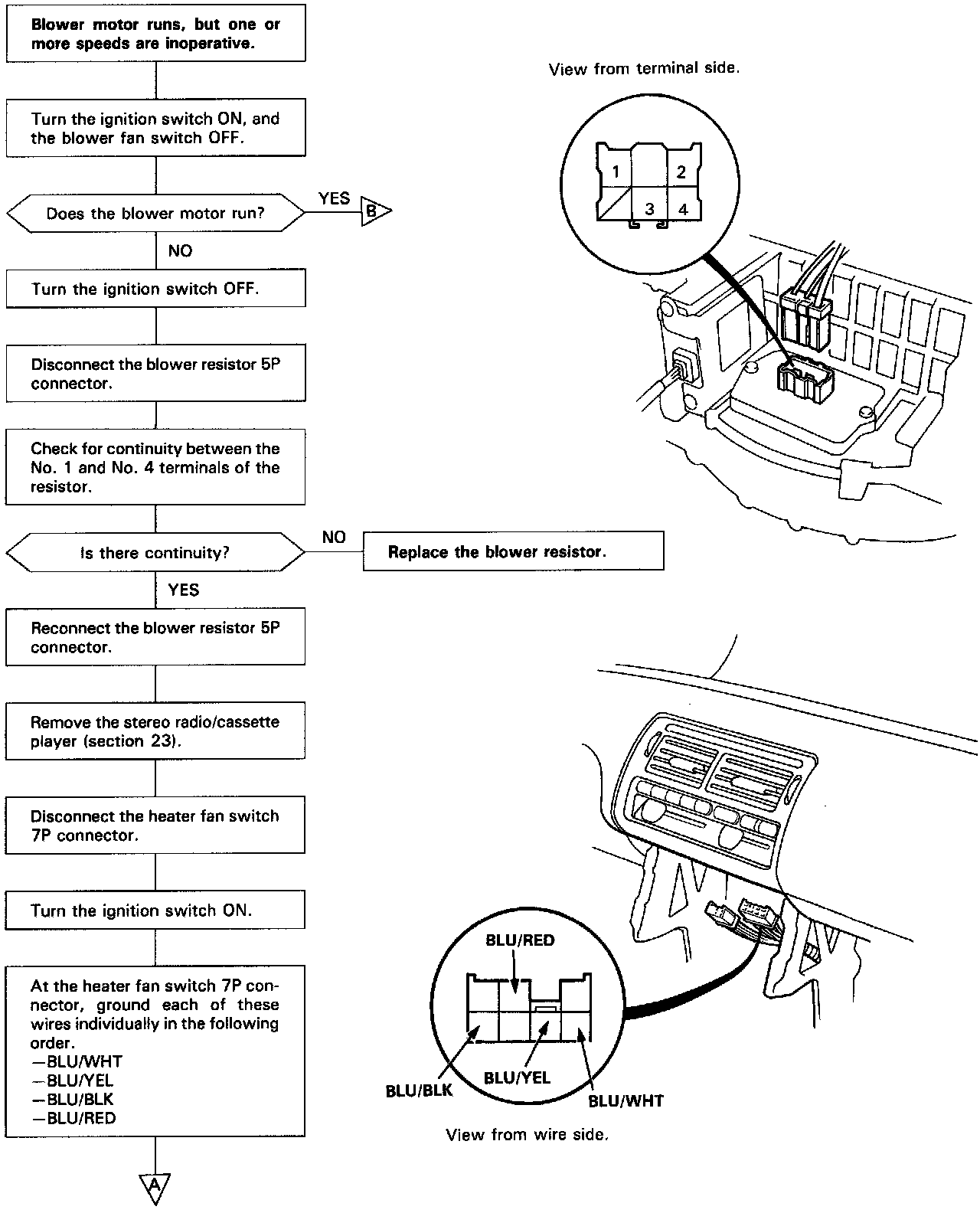

Part A:

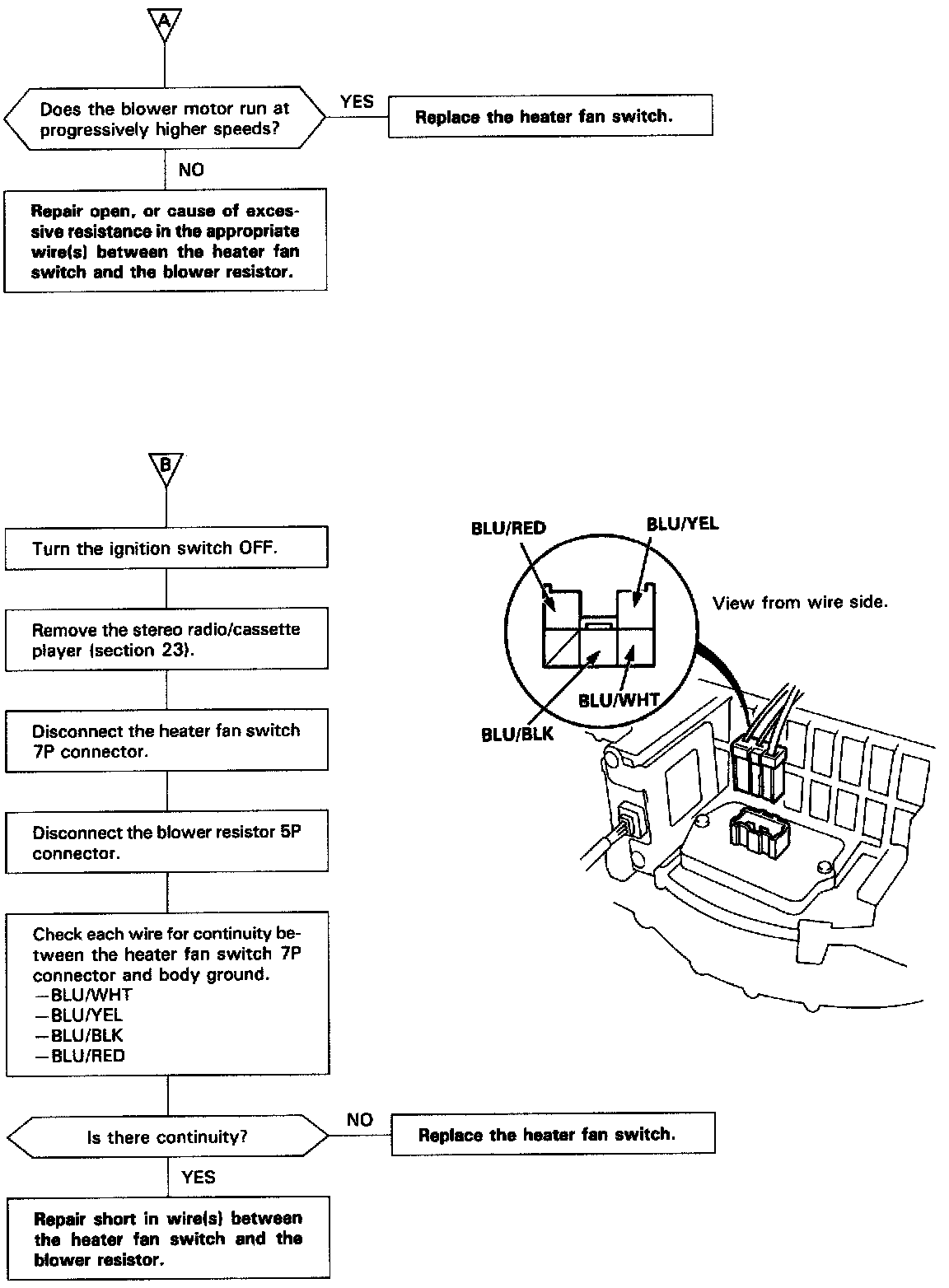

Part B:
