Home >> Honda >> 1992 >> Prelude L4-2.2L SOHC >> Repair and Diagnosis >> Powertrain Management >> Computers and Control Systems >> Electric Load Sensor >> Locations

Electric Load Sensor: Locations

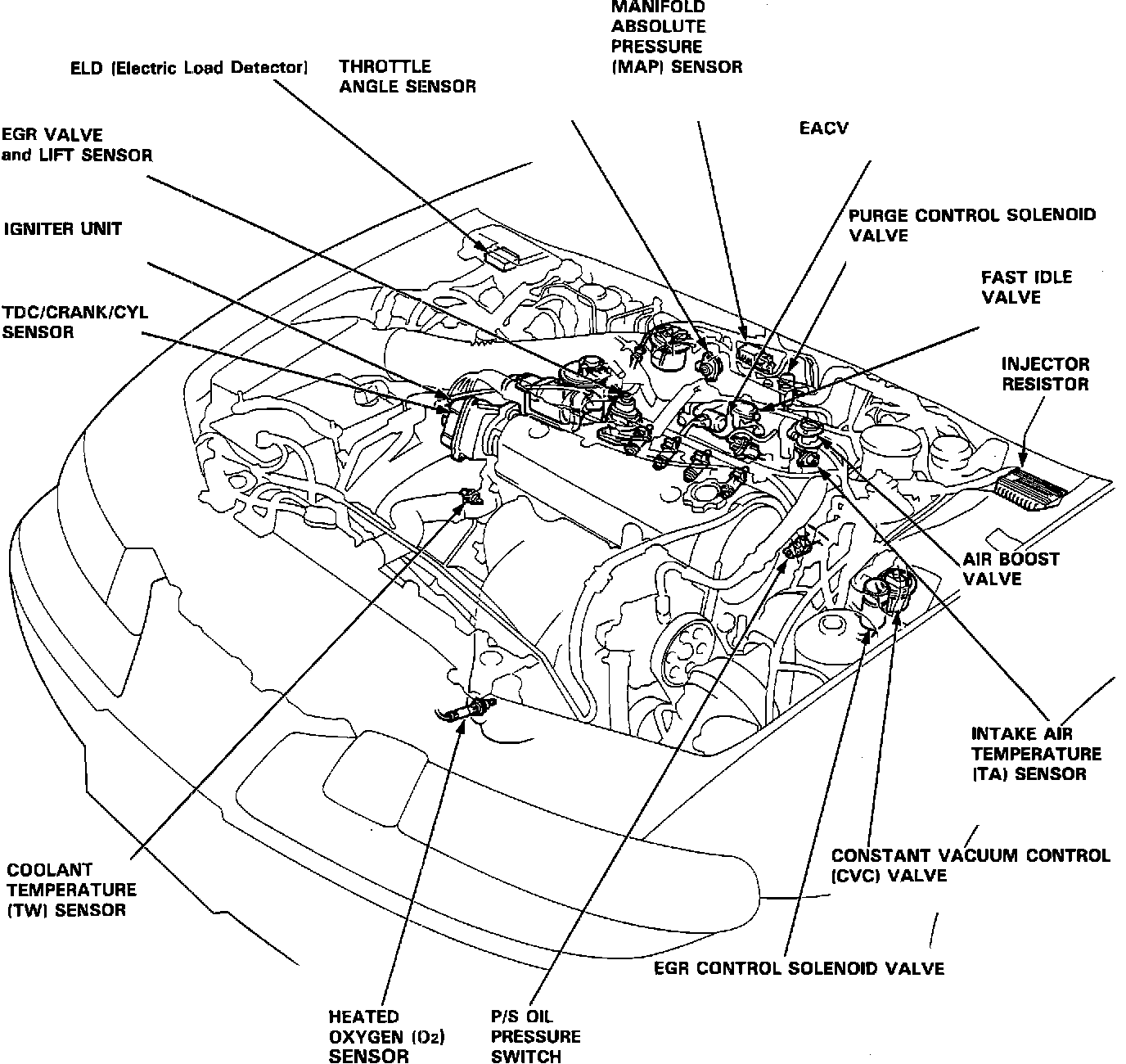

Component Location, Engine Compartment:






Engine compartment component location
