Home >> Honda >> 1992 >> Accord L4-2156cc 2.2L SOHC >> Repair and Diagnosis >> Relays and Modules >> Relays and Modules - Body and Frame >> Power Door Lock Control Module >> Locations >> Power Door Lock Control Unit

Power Door Lock Control Unit

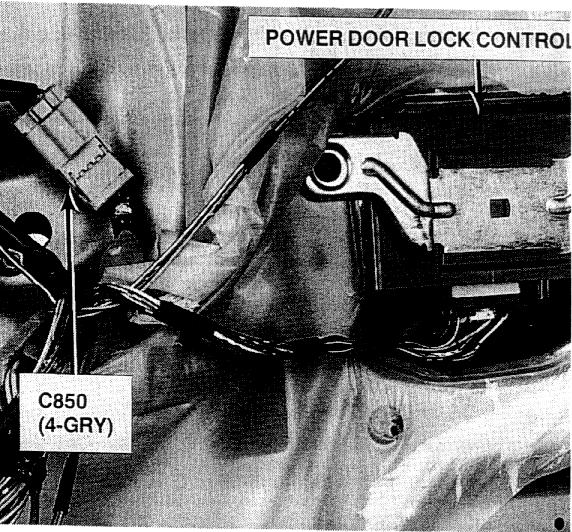

Sedan/Coupe Only - Inside Front Driver's Door:

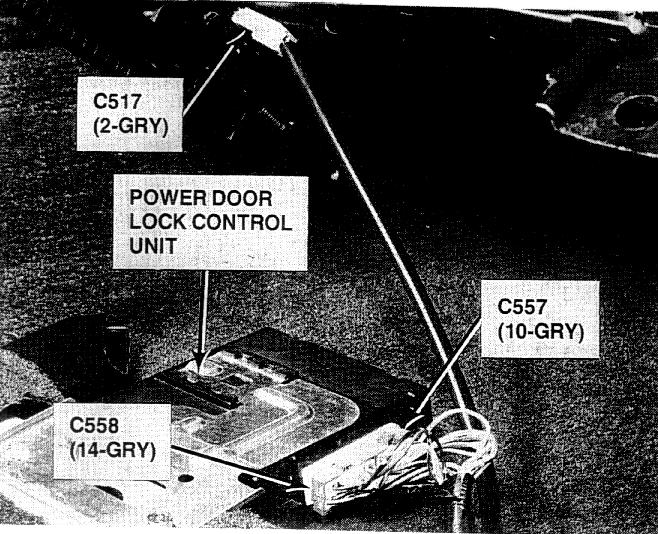

Station Wagon Only - Under Drivers Seat:
