Central Electronics Box: Locations

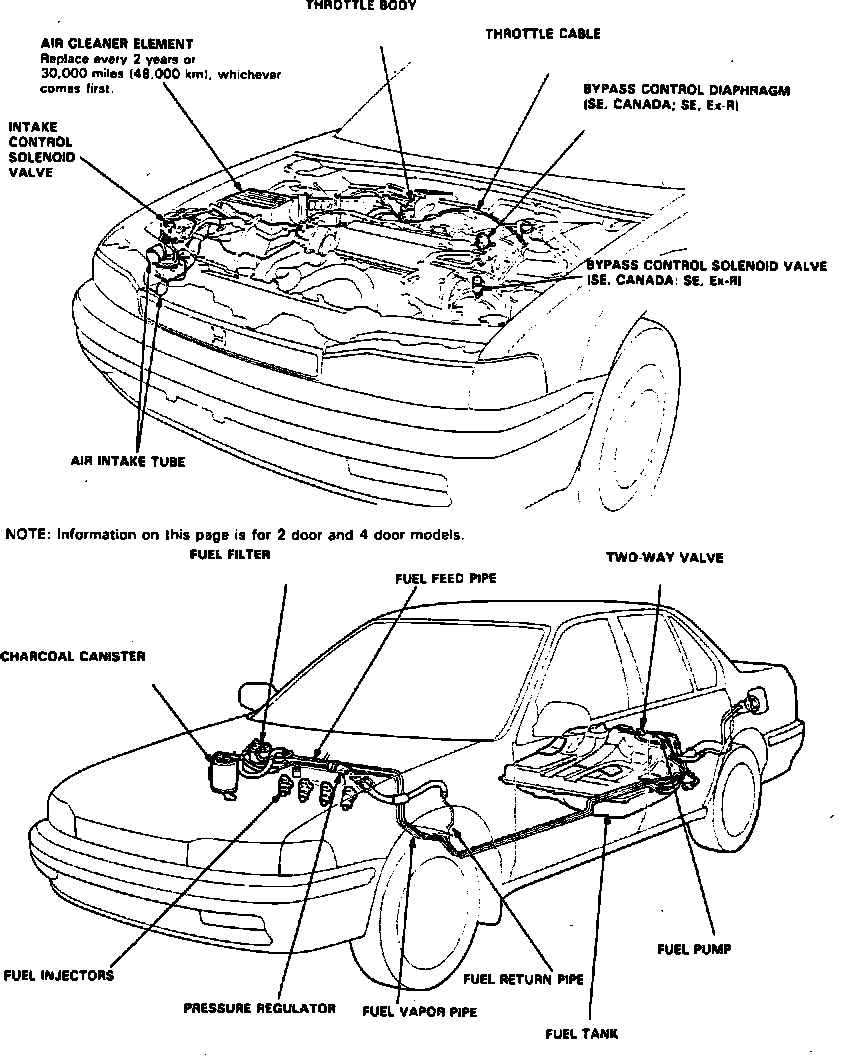

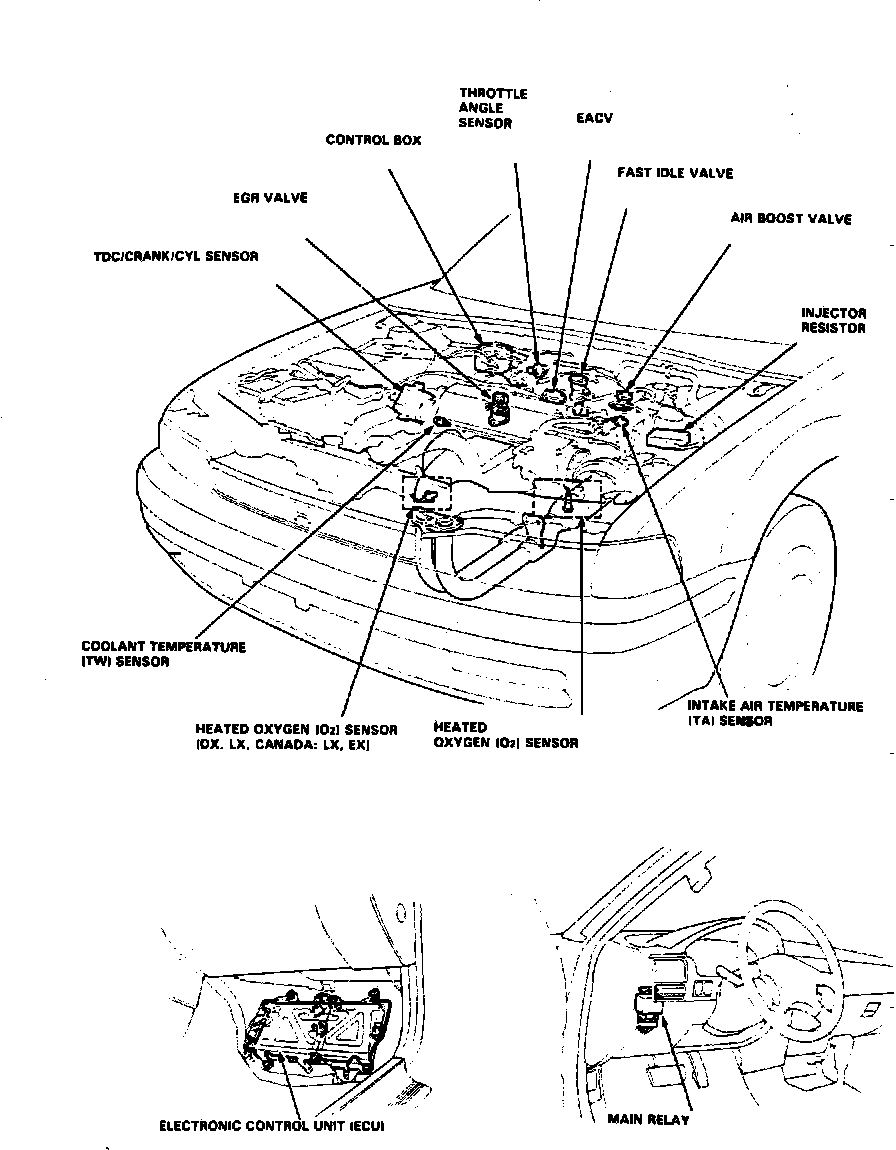

Fuel & Emissions System Components (Part 1 Of 2):
Fuel & Emissions System Components (Part 1 Of 2):
At RH Rear Of Engine Compartment
