Control Module HVAC: Locations

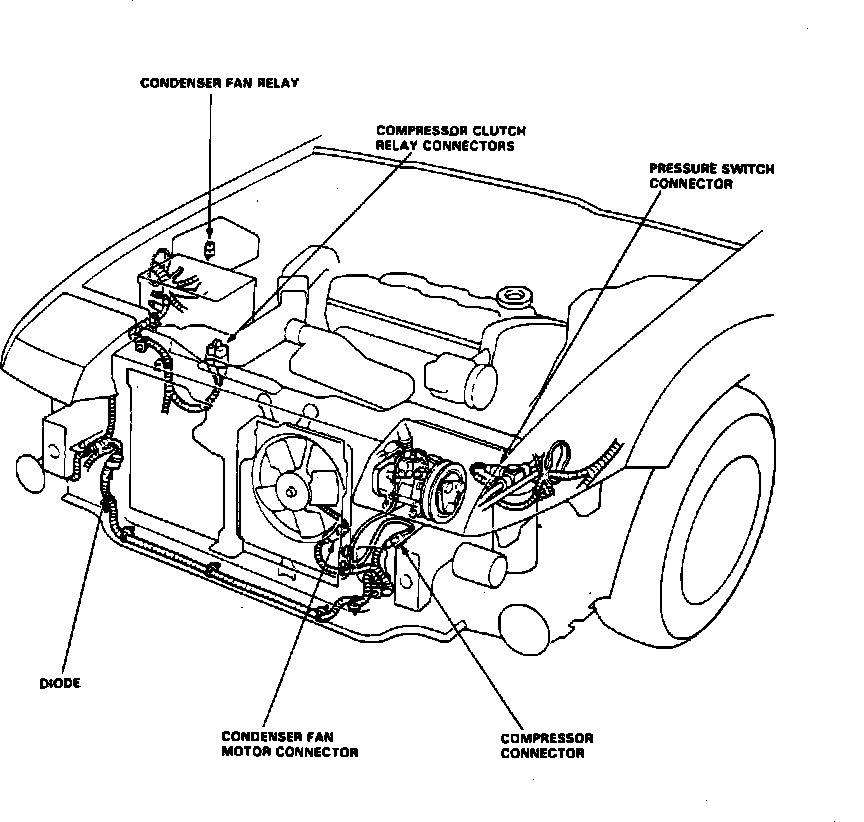

Air Conditioner System Components (Part 1 Of 2).:

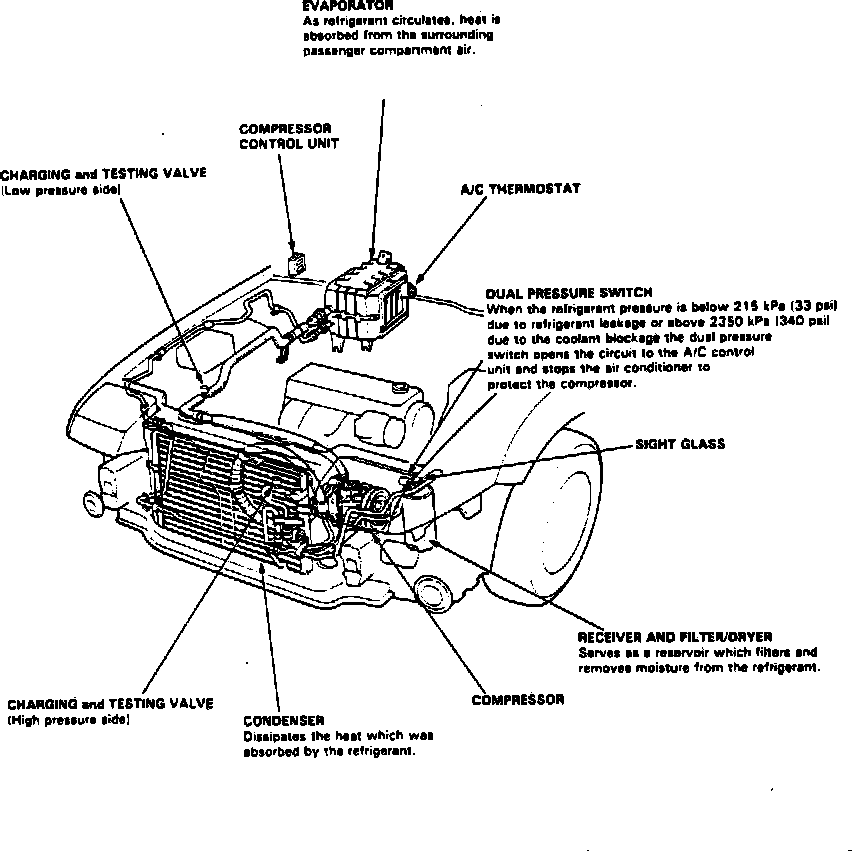

Air Conditioner System Components (Part 2 Of 2).:




RH Side Of Engine Compartment

Applicable to: 1991
