Exhaust Gas Recirculation: Testing and Inspection
Exhaust Gas Recirculation System:
EGR SYSTEM DIAGRAM
�3},EGR System Testing:

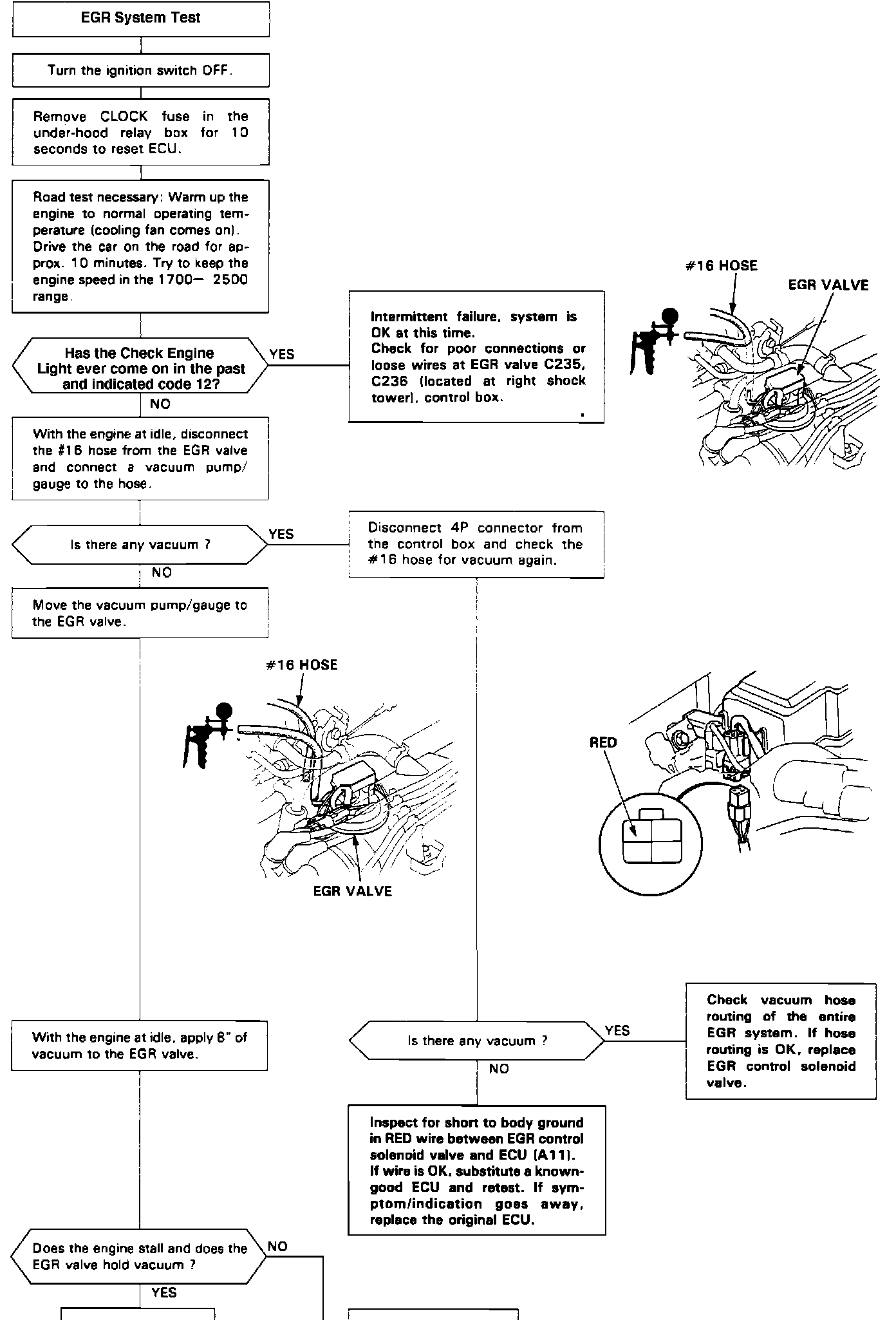

EGR SYSTEM TEST
