Idle Up Control Valve: Locations

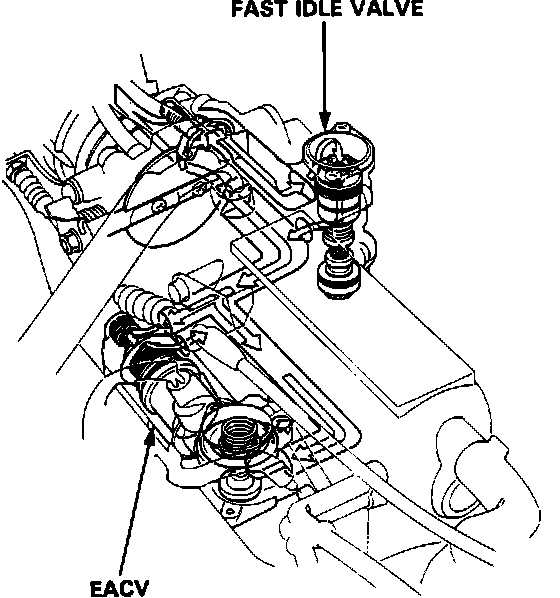

Fast Idle Valve:





The Fast Idle Valve is mounted on aft portion of the Throttle Body itself.
