Body Control Module: Locations

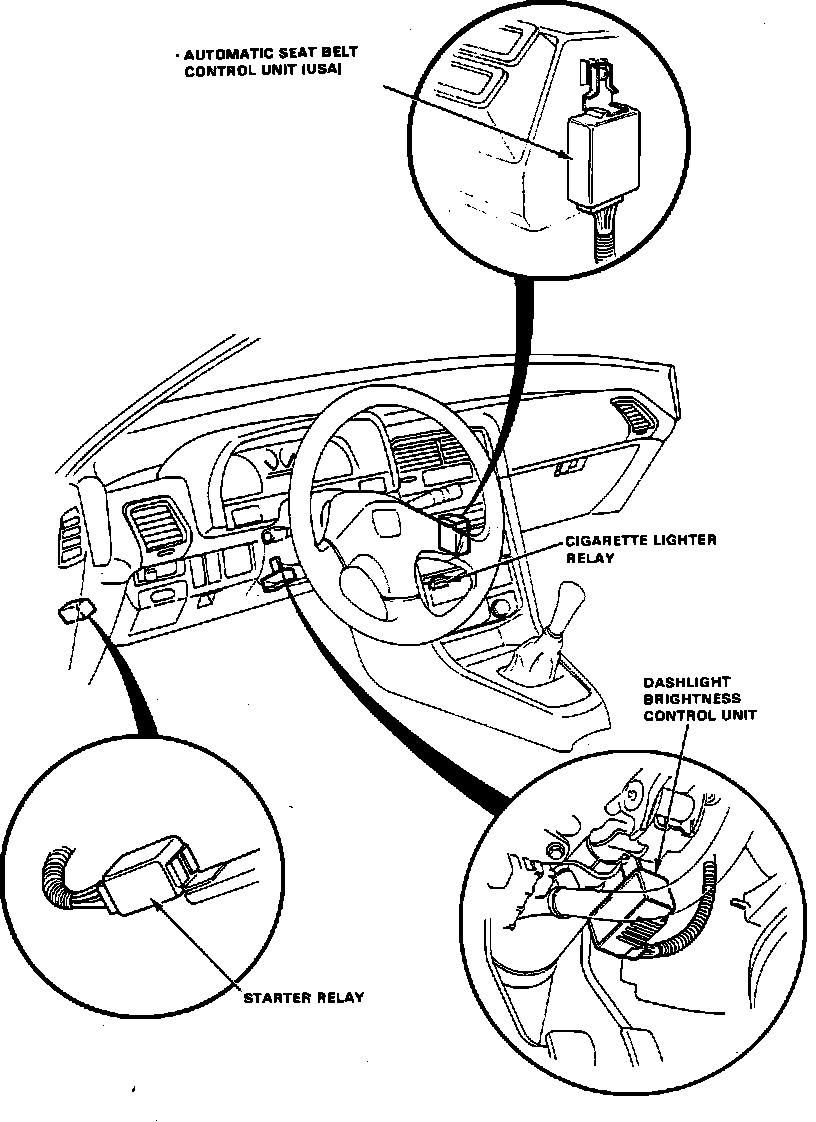

I/P Components (Part 1 Of 2):




I/P Components (Part 1 Of 2):

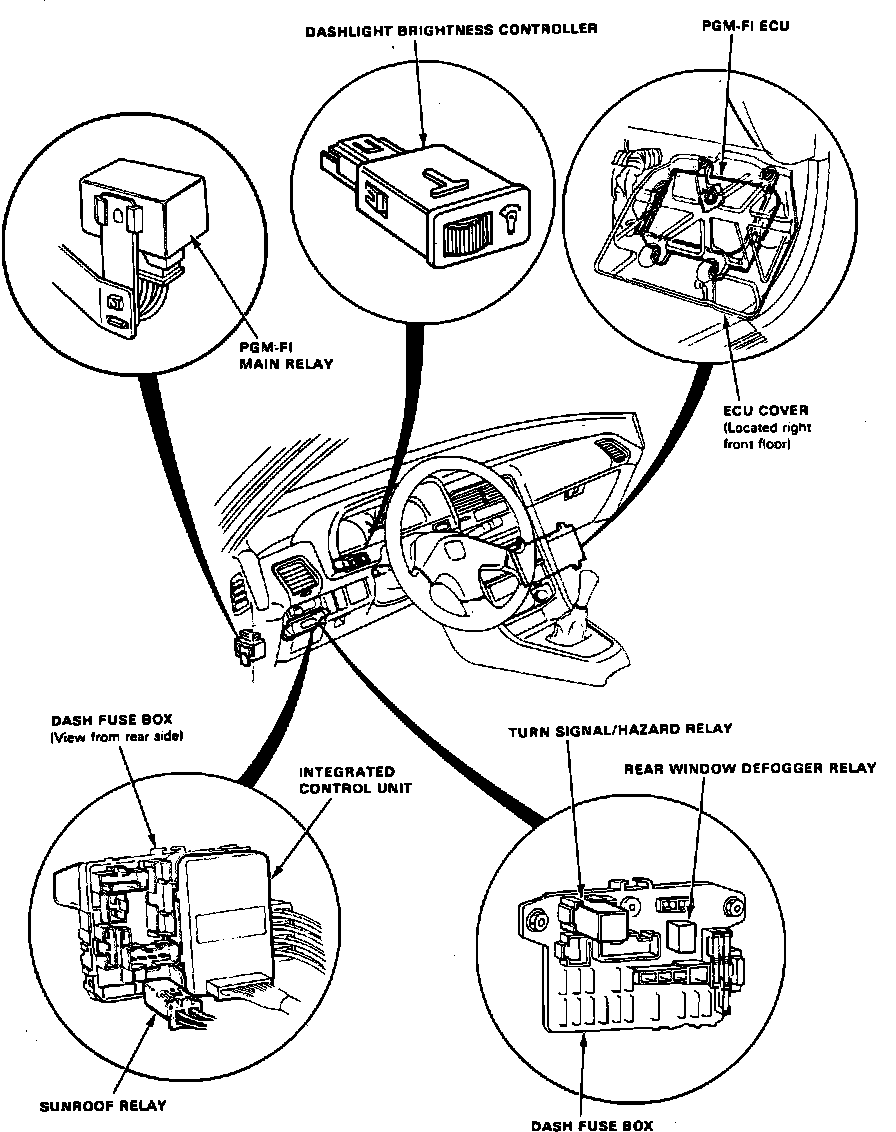

Under LH Side Of I/P
