Home >> Honda >> 1990 >> Accord L4-2156cc 2.2L SOHC >> Repair and Diagnosis >> Diagrams >> Exploded Views >> Cylinder Block Assembly

Cylinder Block Assembly

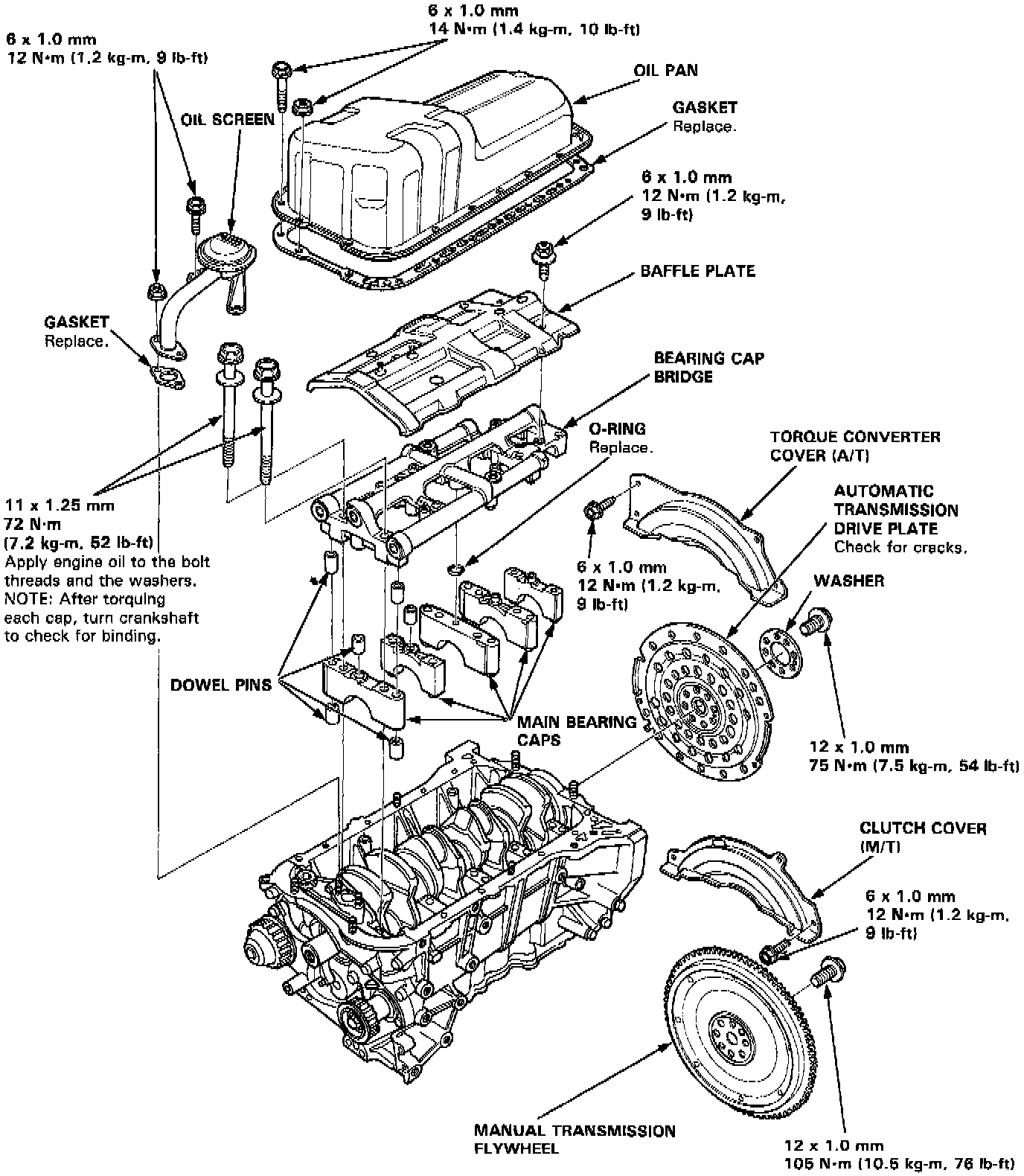

Lower End View:



Pistons and Rods View:



Shafts and Bearings View:
